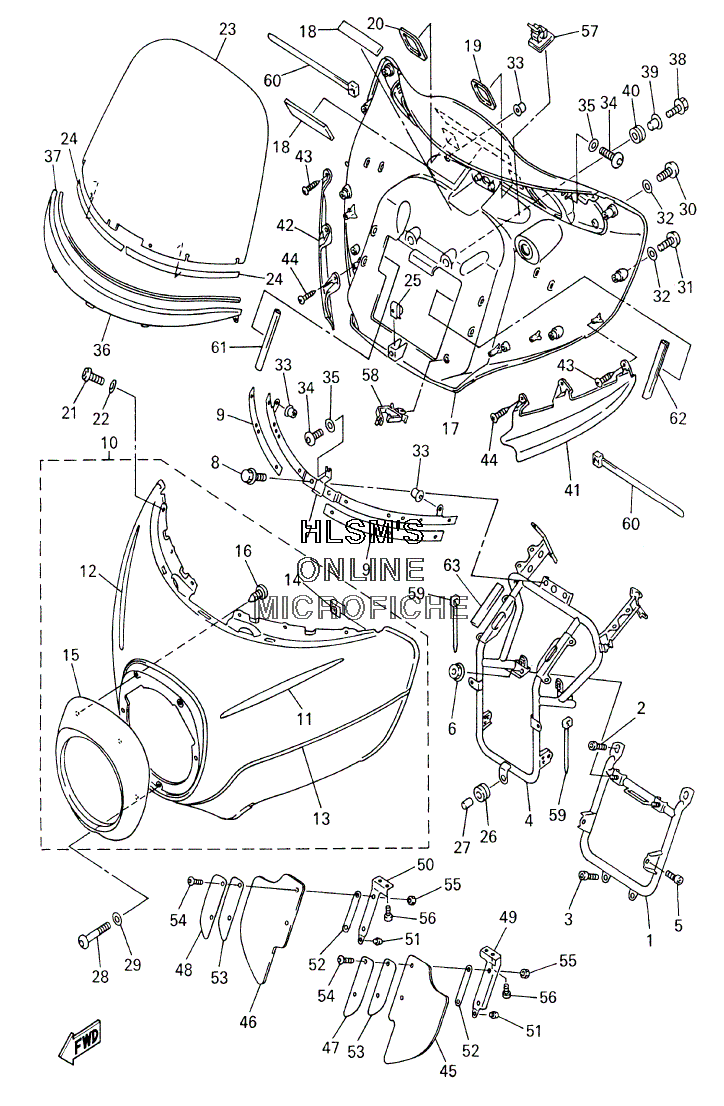

COWLING 1 для Yamaha XVZ 1300 TFS VENTURE MM LTD - 2000 года выпуска
-
№АртикулНазвание
-
14XY-2831R-00-00 STAY, MAIN 1STAY, MAIN 1
-
292017-10030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
391317-08016-00 BOLTBOLT
-
44XY-28356-00-00 STAY 1STAY 1
-
591317-08014-00 BOLTBOLT
-
695707-08500-00 NUT, FLANGENUT, FLANGE
-
74XY-28357-00-00 STAY 2STAY 2
-
895807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
94XY-28372-00-00 DAMPERDAMPER
-
104XY-Y283G-10-2X BODY, FRONT UPPER 1 (580) (VIVID RED COCKTAIL 7)BODY, FRONT UPPER 1 (580) (VIVID RED COCKTAIL 7)
-
114XY-2834G-00-00 ...MOLE 5...MOLE 5
-
124XY-2834H-00-00 ...MOLE 6...MOLE 6
-
134XY-28390-20-00 ...GRAPHIC SET, COWLING...GRAPHIC SET, COWLING
-
1490183-05024-00 ...NUT, SPRING...NUT, SPRING
-
154XY-2835A-00-00 ...RIM, HEADLIGHT...RIM, HEADLIGHT
-
1697707-40014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
174XY-28350-00-P2 COWLING ASSY (580) (VIVID RED COCKTAIL 7)COWLING ASSY (580) (VIVID RED COCKTAIL 7)
-
181AE-2834E-00-00 DAMPERDAMPER
-
194XY-2834F-00-00 DAMPERDAMPER
-
204XY-2834J-00-00 CAP 2CAP 2
-
2192017-05018-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2290201-057H5-00 WASHER, PLATEWASHER, PLATE
-
234XY-2837U-01-00 SCREENSCREEN
-
244XY-28307-00-00 SEALSEAL
-
2590183-06023-00 NUT, SPRINGNUT, SPRING
-
2690480-12529-00 GROMMETGROMMET
-
2790387-067N5-00 COLLARCOLLAR
-
2892014-06050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2990202-06007-00 WASHER, PLATEWASHER, PLATE
-
3092014-05035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3192014-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3290202-05088-00 WASHER, PLATEWASHER, PLATE
-
3390179-05523-00 NUTNUT
-
3492017-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3590201-057H5-00 WASHER, PLATEWASHER, PLATE
-
364XY-28345-00-00 MOLE 1MOLE 1
-
374XY-28371-00-00 DAMPERDAMPER
-
3895807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3990387-067K8-00 COLLARCOLLAR
-
4090480-16233-00 GROMMETGROMMET
-
414XY-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
424XY-2834W-00-00 PROTECTOR 2PROTECTOR 2
-
4397707-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
4497707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
454XY-2835U-00-00 PANEL 1PANEL 1
-
464XY-2835V-00-00 PANEL 2PANEL 2
-
474XY-28396-00-00 PLATE 1PLATE 1
-
484XY-28397-00-00 PLATE 2PLATE 2
-
494XY-2836A-00-00 BRACKET 1BRACKET 1
-
504XY-2836E-00-00 BRACKET 2BRACKET 2
-
515A8-21639-00-00 DAMPER 2DAMPER 2
-
524XY-2837J-00-00 DAMPER 5DAMPER 5
-
534XY-2837K-00-00 DAMPER 6DAMPER 6
-
5490111-06008-00 BOLTBOLT
-
5595304-06700-00 NUTNUT
-
5692014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5790464-62085-00 CLAMPCLAMP
-
5890464-16021-00 CLAMPCLAMP
-
591UA-82591-00-00 BANDBAND
-
6090464-20258-00 CLAMPCLAMP
-
614XY-28347-00-00 MOLE 3MOLE 3
-
624BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
634XY-88158-00-00 DAMPERDAMPER
