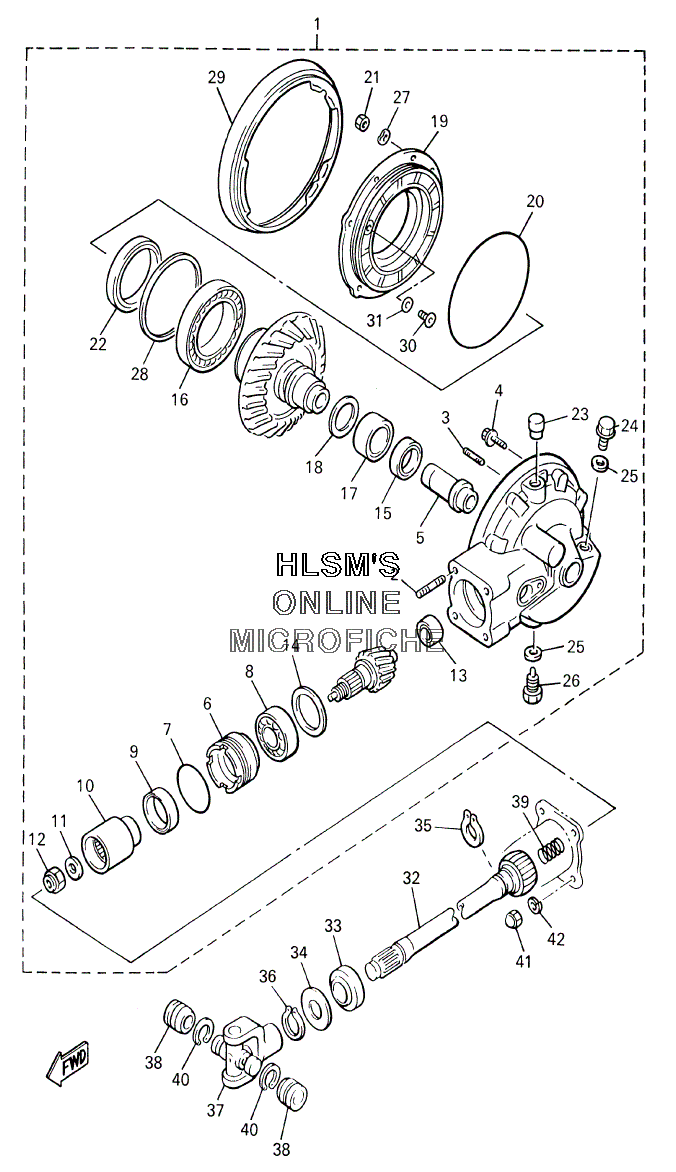

DRIVE SHAFT для Yamaha XVZ 1300 TFS VENTURE MM LTD - 2000 года выпуска

№

Артикул

Название
1

4XY-46101-00-00 REAR AXLE GEAR CASE ASSY

REAR AXLE GEAR CASE ASSY

169 460 ₽
2

90116-10593-00 ...BOLT, STUD

...BOLT, STUD

470 ₽
3

90116-08427-00 ...BOLT, STUD

...BOLT, STUD

890 ₽
4

95817-10050-00 ...BOLT, FLANGE

...BOLT, FLANGE

480 ₽
5

4YE-46153-00-00 ...COLLAR, GUIDE

...COLLAR, GUIDE

7 550 ₽
6

4H7-46125-00-00 ...RETAINER, BEARING

...RETAINER, BEARING

3 300 ₽
7

93210-60426-00 ...O-RING

...O-RING

890 ₽
8

93306-30533-00 ...BEARING (SPECIAL)

...BEARING (SPECIAL)

10 860 ₽
9

93101-38098-00 ...OIL SEAL

...OIL SEAL

1 200 ₽
10

4H7-46123-01-00 ...COUPLING, GEAR

...COUPLING, GEAR

14 170 ₽
11

90201-166R5-00 ...WASHER, PLATE

...WASHER, PLATE

1 730 ₽
12

90179-16661-00 ...NUT

...NUT

2 200 ₽
13

2H7-46102-00-00 ...BEARING ASSY

...BEARING ASSY

3 460 ₽
14

1J7-17537-Y0-30 ...SHIM, THRUST (0.30 THICKNESS) (OPT)

...SHIM, THRUST (0.30 THICKNESS) (OPT)

370 ₽
14

1J7-17537-Y0-40 ...SHIM, THRUST (0.40 THICKNESS) (OPT)

...SHIM, THRUST (0.40 THICKNESS) (OPT)

370 ₽
14

1J7-17537-Y0-50 ...SHIM, THRUST (0.50 THICKNESS) (OPT)

...SHIM, THRUST (0.50 THICKNESS) (OPT)

370 ₽
15

93101-30084-00 ...OIL SEAL

...OIL SEAL

1 420 ₽
16

93316-01403-00 ...BEARING

...BEARING

7 550 ₽
17

93311-43729-00 ...BEARING

...BEARING

6 920 ₽
18

22U-46118-00-12 ...SHIM, THRUST (1.2 THICKNESS) (OPT)

...SHIM, THRUST (1.2 THICKNESS) (OPT)

750 ₽
18

22U-46118-00-14 ...SHIM, THRUST (1.4 THICKNESS) (OPT)

...SHIM, THRUST (1.4 THICKNESS) (OPT)

750 ₽
18

22U-46118-00-16 ...SHIM, THRUST (1.6 THICKNESS) (OPT)

...SHIM, THRUST (1.6 THICKNESS) (OPT)

750 ₽
18

22U-46118-00-18 ...SHIM, THRUST (1.8 THICKNESS) (OPT)

...SHIM, THRUST (1.8 THICKNESS) (OPT)

750 ₽
18

22U-46118-00-20 ...SHIM, THRUST (2.0 THICKNESS) (OPT)

...SHIM, THRUST (2.0 THICKNESS) (OPT)

750 ₽
19

1FK-46152-01-00 ...HOUSING, BEARING

...HOUSING, BEARING

14 960 ₽
20

93211-54698-00 ...O-RING

...O-RING

2 200 ₽
21

95317-08600-00 ...NUT

...NUT

470 ₽
22

93102-70167-00 ...OIL SEAL

...OIL SEAL

2 040 ₽
23

56W-17590-00-00 ...BREATHER COMP.

...BREATHER COMP.

1 550 ₽
24

90340-14132-00 ...PLUG, STRAIGHT SCREW

...PLUG, STRAIGHT SCREW

250 ₽
25

21411-19801-00 ...GASKET

...GASKET

260 ₽
26

90340-14135-00 ...PLUG, STRAIGHT SCREW

...PLUG, STRAIGHT SCREW

3 770 ₽
27

92907-08700-00 ...WASHER

...WASHER

150 ₽
28

1J7-46117-Y0-25 ...SHIM, RING GEAR (0.25 THICKNESS) (OPT)

...SHIM, RING GEAR (0.25 THICKNESS) (OPT)

440 ₽
28

1J7-46117-Y0-30 ...SHIM, RING GEAR (0.30 THICKNESS) (OPT)

...SHIM, RING GEAR (0.30 THICKNESS) (OPT)

440 ₽
28

1J7-46117-Y0-40 ...SHIM, RING GEAR (0.40 THICKNESS) (OPT)

...SHIM, RING GEAR (0.40 THICKNESS) (OPT)

440 ₽
28

1J7-46117-Y0-50 ...SHIM, RING GEAR (0.50 THICKNESS) (OPT)

...SHIM, RING GEAR (0.50 THICKNESS) (OPT)

440 ₽
29

1FK-46154-00-00 ...COVER, HOUSING

...COVER, HOUSING

3 300 ₽
30

1FK-46156-00-00 ...STOPPER, RING GEAR

...STOPPER, RING GEAR

1 730 ₽
31

1FK-46157-00-15 ...SHIM, STOPPER (0.15) (OPT)

...SHIM, STOPPER (0.15) (OPT)

150 ₽
31

1FK-46157-00-20 ...SHIM, STOPPER (0.20) (OPT)

...SHIM, STOPPER (0.20) (OPT)

150 ₽
32

4XY-46172-00-00 SHAFT, DRIVE

SHAFT, DRIVE

25 190 ₽
33

93108-23007-00 OIL SEAL

OIL SEAL

3 300 ₽
34

90201-231A2-00 WASHER, PLATE

WASHER, PLATE

340 ₽
35

93410-23056-00 CIRCLIP

CIRCLIP

280 ₽
36

93410-22039-00 CIRCLIP

CIRCLIP

470 ₽
37

4X7-46180-00-00 CROSS JOINT COMP.

CROSS JOINT COMP.

25 190 ₽
38

93311-21044-00 BEARING

BEARING

3 300 ₽
39

90501-16491-00 SPRING, COMPRESSION

SPRING, COMPRESSION

370 ₽
40

93440-20088-00 CIRCLIP

CIRCLIP

290 ₽
41

90176-10075-00 NUT, CROWN

NUT, CROWN

650 ₽
42

92903-10100-00 WASHER, SPRING

WASHER, SPRING

180 ₽
