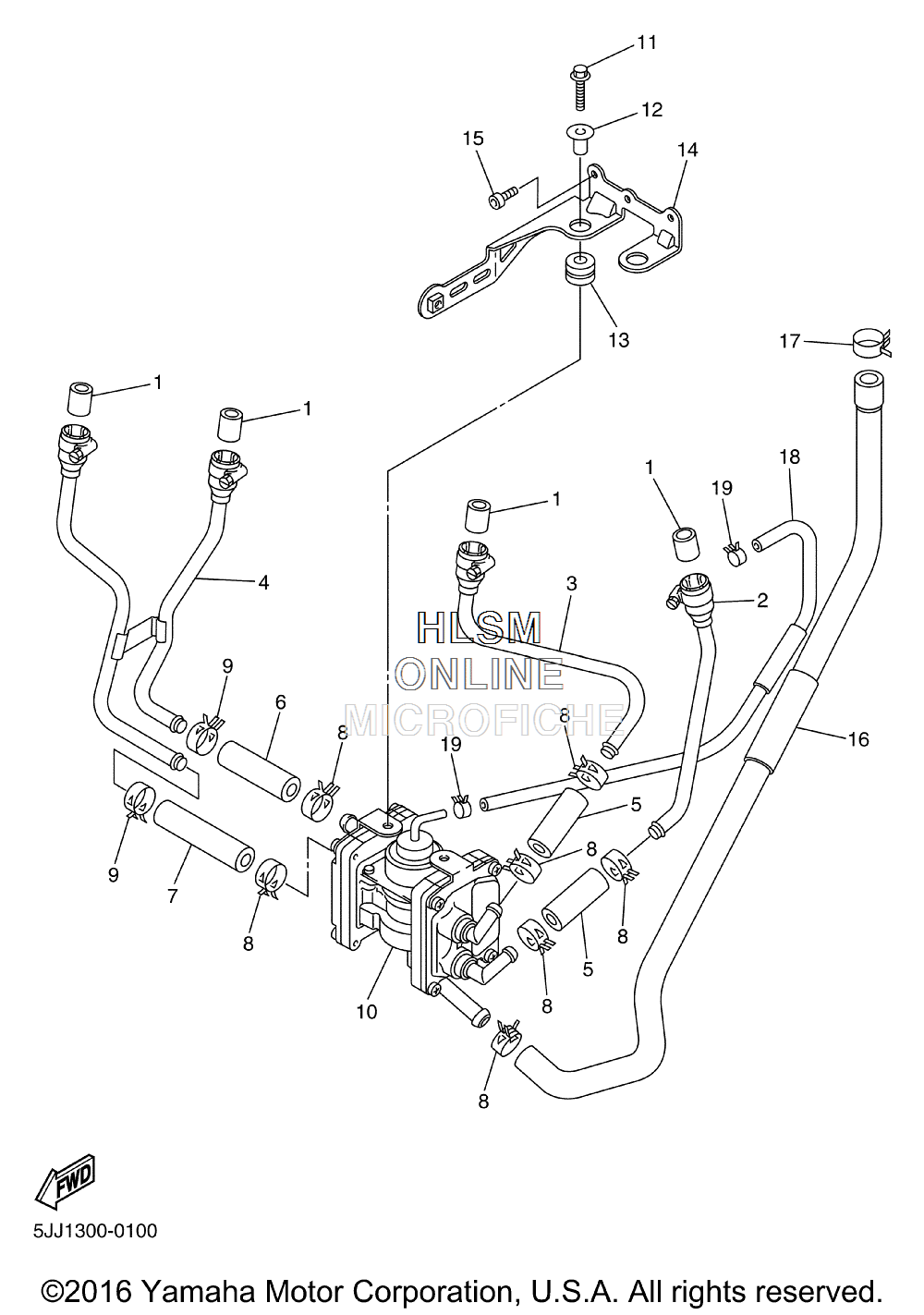

AIR INDUCTION SYSTEM для Yamaha YZF-R1 [ YZFR1M/C] (5JJ4/5JJ5) - 2000 года выпуска
-
№АртикулНазвание
-
14KM-14714-01-00 GASKET, MUFFLERGASKET, MUFFLER
-
25JJ-14872-00-00 PIPE 2PIPE 2
-
35JJ-14873-00-00 PIPE 3PIPE 3
-
45JJ-14874-00-00 PIPE 4PIPE 4
-
55JJ-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
65JJ-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
75JJ-14886-00-00 HOSE, BEND 6HOSE, BEND 6
-
890467-15054-00 CLIPCLIP
-
990467-15001-00 CLIPCLIP
-
105JJ-14803-00-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
1195827-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1290387-07391-00 COLLARCOLLAR
-
1390480-15316-00 GROMMETGROMMET
-
145JJ-14867-00-00 BRACKETBRACKET
-
1591317-06012-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
165JJ-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
1790467-17089-00 CLIPCLIP
-
185JJ-14884-00-00 HOSE, BEND 4HOSE, BEND 4
-
1990467-08092-00 CLIPCLIP
