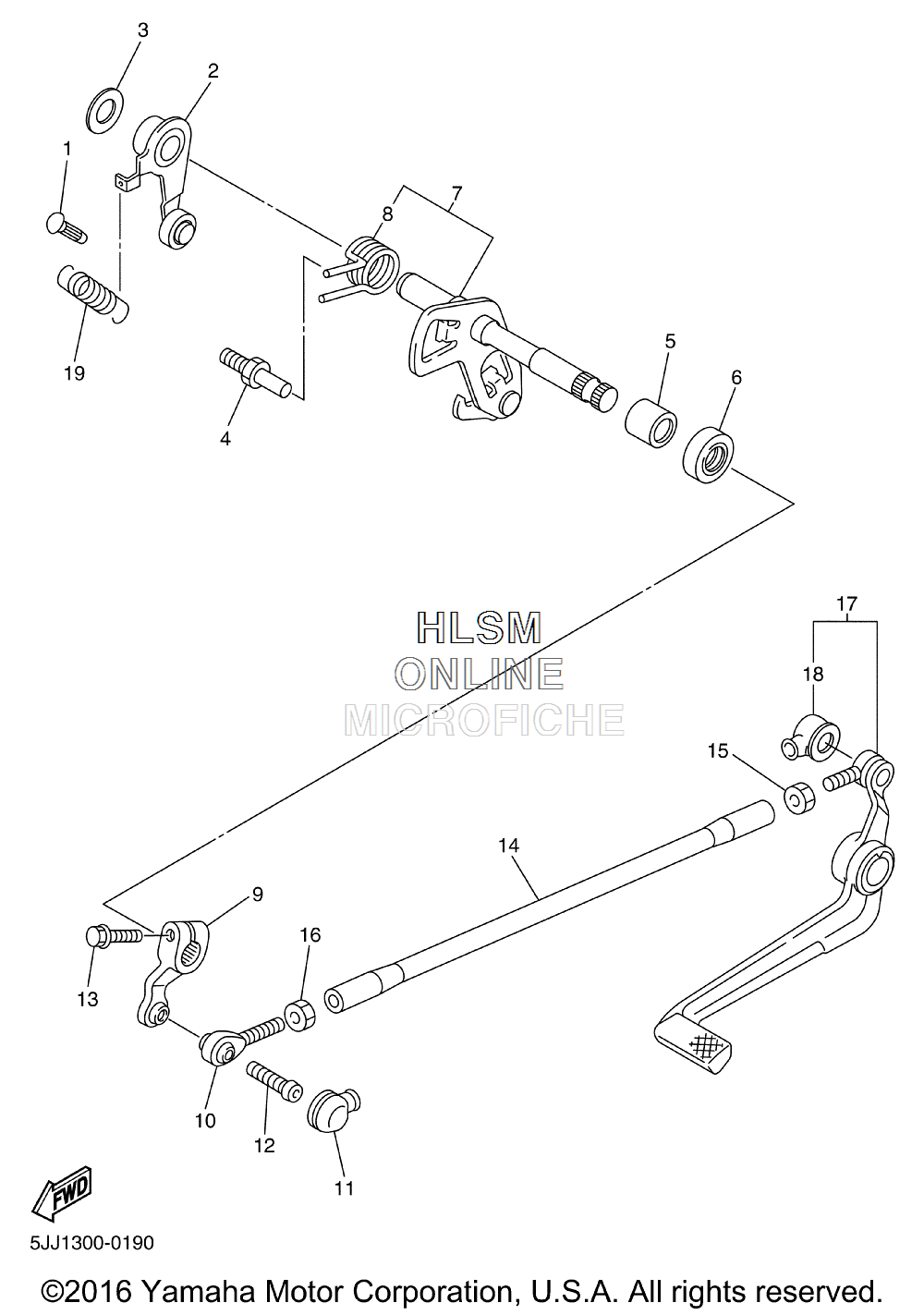

SHIFT SHAFT для Yamaha YZF-R1 [ YZFR1M/C] (5JJ4/5JJ5) - 2000 года выпуска
-
№АртикулНазвание
-
1132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
25JJ-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
390201-120K4-00 WASHER, PLATEWASHER, PLATE
-
44XV-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
593315-11206-00 BEARINGBEARING
-
693101-12004-00 OIL SEALOIL SEAL
-
75JJ-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
890508-29012-00 ...SPRING, TORSION...SPRING, TORSION
-
95JJ-18112-00-00 ARM, SHIFTARM, SHIFT
-
105JJ-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
114XV-18154-00-00 COVER, DUSTCOVER, DUST
-
1290111-06019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1395824-06020-00 BOLT, FLANGEBOLT, FLANGE
-
144XV-18115-00-00 ROD, SHIFTROD, SHIFT
-
1590170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
1695304-06700-00 NUTNUT
-
175JJ-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
184XV-18154-00-00 ...COVER, DUST...COVER, DUST
-
1990506-14002-00 SPRING, TENSIONSPRING, TENSION
