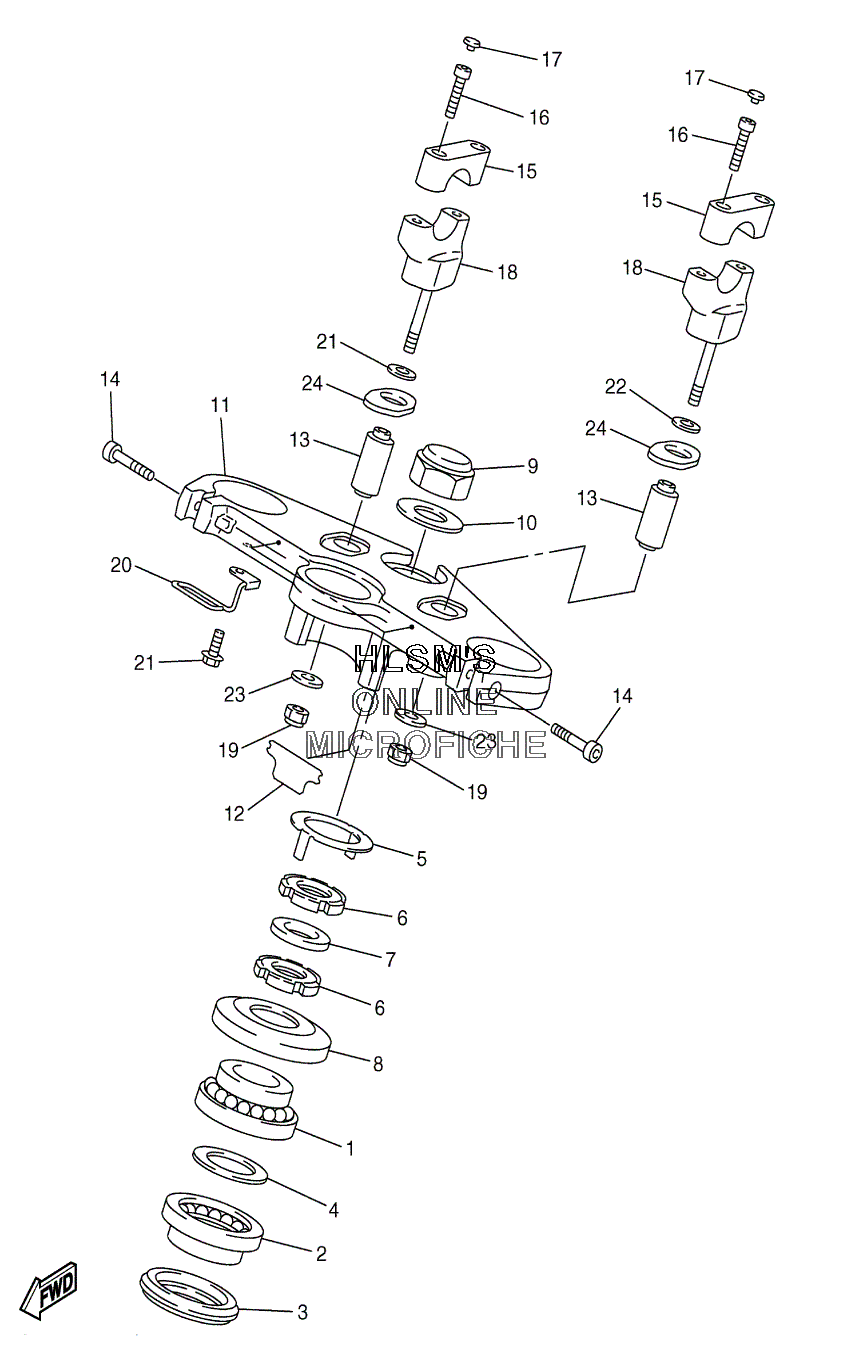

STEERING для Yamaha FZS 1000 FZ1 CALIFORNIA - 2001 года выпуска
-
№АртикулНазвание
-
193399-99931-00 BEARING, SPECIALBEARING, SPECIAL
-
293399-99932-00 BEARING, SPECIALBEARING, SPECIAL
-
33FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
490202-24190-00 WASHER, PLATEWASHER, PLATE
-
526H-23418-01-00 WASHER, SPECIALWASHER, SPECIAL
-
690179-25033-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
790202-26142-00 WASHER, PLATEWASHER, PLATE
-
84DN-23416-20-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
990176-22081-00 NUT, CROWNNUT, CROWN
-
1090201-220T0-00 WASHER, PLATEWASHER, PLATE
-
115LV-23435-00-00 CROWN, HANDLECROWN, HANDLE
-
125LV-23472-00-00 PROTECTORPROTECTOR
-
135A823-43401-00 HOLDER, DAMPERHOLDER, DAMPER
-
1491314-08030-00 BOLTBOLT
-
154H7-23441-00-98 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1691317-08030-00 BOLT, SOCKETBOLT, SOCKET
-
17341-23469-00-00 CAP, BOLTCAP, BOLT
-
185LV-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1995607-10100-00 NUT, UNUT, U
-
205LV-23317-01-00 HOLDER, CABLEHOLDER, CABLE
-
2195027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2292907-10200-00 WASHERWASHER
-
2390201-100A1-00 WASHER, PLATEWASHER, PLATE
-
245LV-23445-00-00 DAMPERDAMPER
