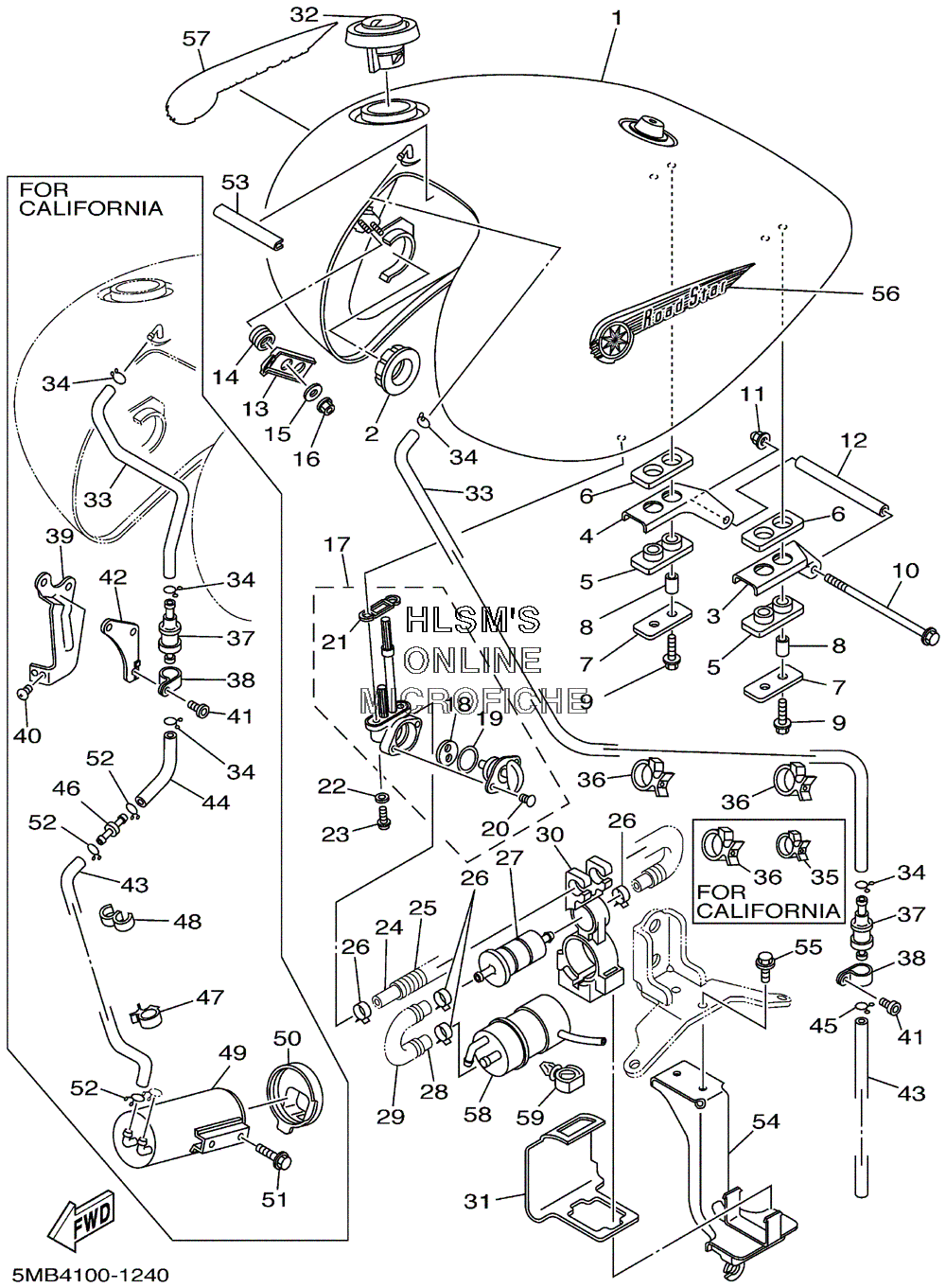

FUEL TANK для Yamaha XV 1600 AS MIDNIGHT STAR - 2001 года выпуска
-
№АртикулНазвание
-
14WM-YK241-31-33 FUEL TANK COMP.FUEL TANK COMP.
-
22YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
34WM-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
44WM-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
52GH-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
62GH-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
72GH-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
890387-06553-00 COLLARCOLLAR
-
995817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1095817-06125-00 BOLT, FLANGEBOLT, FLANGE
-
1190176-06055-00 NUT, CROWNNUT, CROWN
-
1290387-0615R-00 COLLARCOLLAR
-
134WM-24291-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
144WM-24339-00-00 GROMMETGROMMET
-
1590387-050T5-00 COLLARCOLLAR
-
1695707-05500-00 NUT, FLANGENUT, FLANGE
-
174WM-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
183AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
193AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
2098580-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
214X8-24512-00-00 ...O-RING...O-RING
-
2290202-05187-00 WASHER, PLATEWASHER, PLATE
-
2390149-06011-00 SCREWSCREW
-
244WM-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
254WM-24393-00-00 SPRINGSPRING
-
2690467-13133-00 CLIPCLIP
-
271FK-24560-00-00 FILTER ASSYFILTER ASSY
-
284WM-24312-00-00 PIPE 2PIPE 2
-
294WM-24394-00-00 SPRINGSPRING
-
304WM-24398-00-00 BAND 1BAND 1
-
314WM-24217-00-00 COVERCOVER
-
324NK-24602-10-00 CAP ASSYCAP ASSY
-
334WM-24321-00-00 PIPE 10 (EXCEPT CALF)PIPE 10 (EXCEPT CALF)
-
334WM-24321-10-00 PIPE 10 (CALF ONLY)PIPE 10 (CALF ONLY)
-
3490467-10041-00 CLIP (EXCEPT CALF)CLIP (EXCEPT CALF)
-
3490467-10041-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
3590464-15192-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
3690464-25217-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
3690464-25217-00 CLAMP (EXCEPT CALF)CLAMP (EXCEPT CALF)
-
374WM-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
3890461-15139-00 CLAMPCLAMP
-
394WM-2148X-00-00 BRACKET 4 (CALF ONLY)BRACKET 4 (CALF ONLY)
-
4098507-05008-00 SCREW, PAN HEAD (CALF ONLY)SCREW, PAN HEAD (CALF ONLY)
-
4198907-05012-00 SCREW, BINDSCREW, BIND
-
424WM-24662-00-00 STAY (CALF ONLY)STAY (CALF ONLY)
-
434WM-24322-00-00 PIPE 11 (CALF ONLY)PIPE 11 (CALF ONLY)
-
4390445-116K9-00 HOSE (L355) (EXCEPT CALF)HOSE (L355) (EXCEPT CALF)
-
444WM-24323-00-00 PIPE 12 (CALF ONLY)PIPE 12 (CALF ONLY)
-
4590467-10008-00 CLIP (EXCEPT CALF)CLIP (EXCEPT CALF)
-
464XY-14568-00-00 JOINT (CALF ONLY)JOINT (CALF ONLY)
-
4790464-15192-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
4890464-10075-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
494WM-24170-00-00 CANISTER ASSY (CALF ONLY)CANISTER ASSY (CALF ONLY)
-
504WM-2419E-00-00 COVER, CANISTER (CALF ONLY)COVER, CANISTER (CALF ONLY)
-
5190105-06009-00 BOLT, WASHER BASED (CALF ONLY)BOLT, WASHER BASED (CALF ONLY)
-
5290467-10008-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
534GY-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
544WM-24491-01-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
5595817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
565MB-2416B-10-00 EMBLEMEMBLEM
-
575MB-2417B-10-00 EMBLEMEMBLEM
-
584WM-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
5990464-13249-00 CLAMPCLAMP
