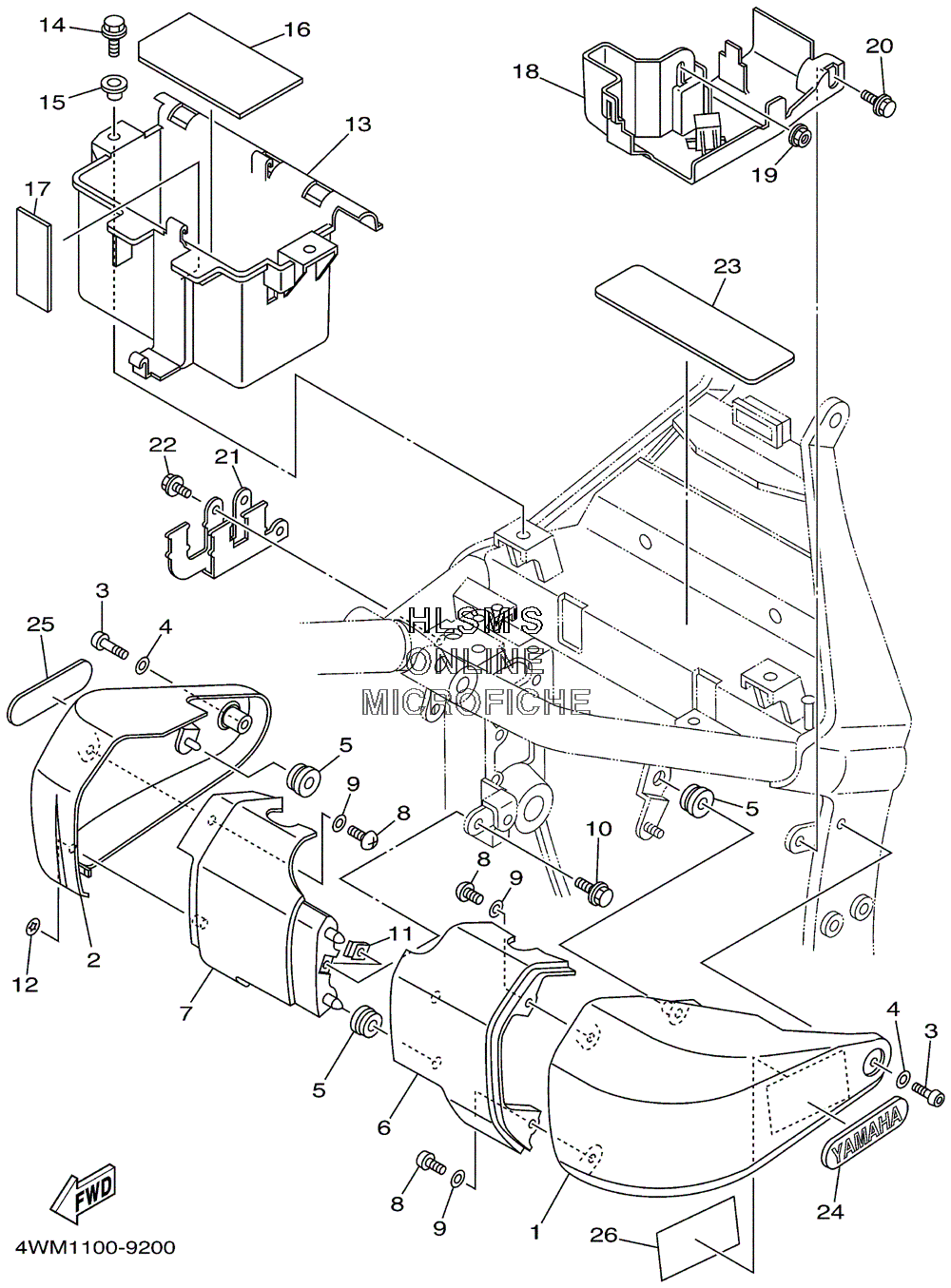

SIDE COVER для Yamaha XV 1600 AS MIDNIGHT STAR - 2001 года выпуска
-
№АртикулНазвание
-
14WM-21711-00-33 COVER, SIDE 1 (YAMAHA BLACK (YB))COVER, SIDE 1 (YAMAHA BLACK (YB))
-
24WM-21721-00-33 COVER, SIDE 2 (YAMAHA BLACK (YB))COVER, SIDE 2 (YAMAHA BLACK (YB))
-
390149-06328-00 SCREWSCREW
-
490202-06170-00 WASHER, PLATEWASHER, PLATE
-
590480-13567-00 GROMMETGROMMET
-
64WM-2117X-00-33 COVER 9 (YAMAHA BLACK (YB))COVER 9 (YAMAHA BLACK (YB))
-
74WM-2117Y-00-33 COVER 10 (YAMAHA BLACK (YB))COVER 10 (YAMAHA BLACK (YB))
-
898507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
992907-06600-00 WASHER, PLATEWASHER, PLATE
-
1095027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1190183-06069-00 NUT, SPRINGNUT, SPRING
-
1290183-05068-00 NUT, SPRINGNUT, SPRING
-
134WM-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
1495817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1590387-07717-00 COLLARCOLLAR
-
1651Y-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
1726H-21746-00-00 DAMPERDAMPER
-
184WM-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
1995707-06500-00 NUT, FLANGENUT, FLANGE
-
2097017-06012-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
214WM-2172K-00-00 BRACKET 1BRACKET 1
-
2295817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
234WM-21267-00-00 SHEET 2SHEET 2
-
243LS-21781-00-00 EMBLEM 1EMBLEM 1
-
253LS-21781-00-00 EMBLEM 1EMBLEM 1
-
264WM-2179R-20-00 PLATE, EPA 2(CALIFORNIA)PLATE, EPA 2(CALIFORNIA)
-
264WM-2179V-20-00 PLATE, EPA 1(NON CALIFORNIA)PLATE, EPA 1(NON CALIFORNIA)
