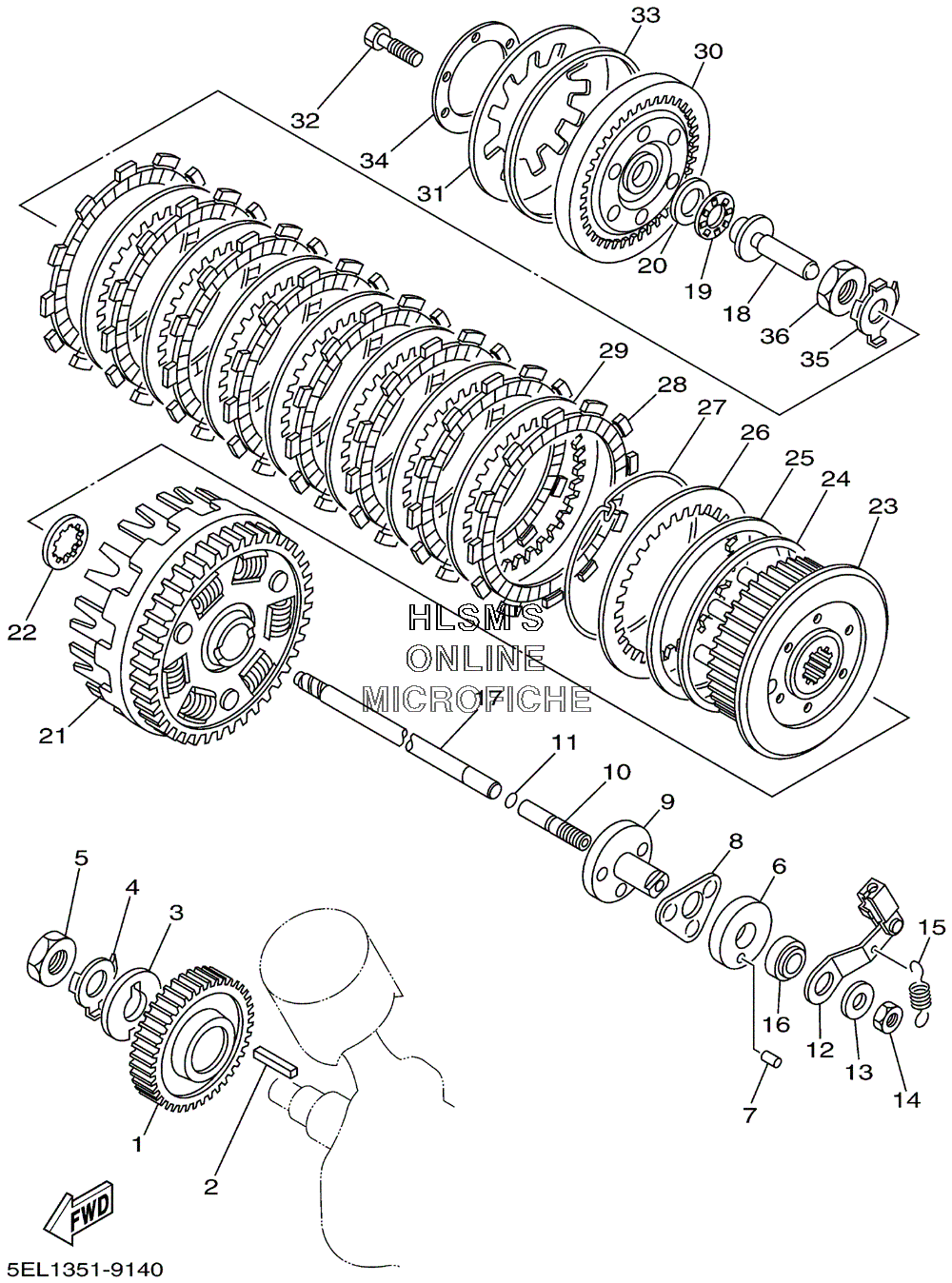

CLUTCH для Yamaha XVS 1100 V-STAR CUSTOM - 2001 года выпуска
-
№АртикулНазвание
-
14X7-16111-00-00 GEAR, PRIMARY DRIVE (47T)GEAR, PRIMARY DRIVE (47T)
-
290282-07042-00 KEY, STRAIGHTKEY, STRAIGHT
-
390214-20022-00 WASHER, CLAWWASHER, CLAW
-
490215-20182-00 WASHER, LOCKWASHER, LOCK
-
590170-20274-00 NUTNUT
-
62H7-16396-00-00 HOUSING, PUSH SCREWHOUSING, PUSH SCREW
-
793606-07082-00 PIN, DOWELPIN, DOWEL
-
82H7-16395-01-00 RETAINER, BALLRETAINER, BALL
-
92H7-16341-00-00 SCREW, PUSHSCREW, PUSH
-
102H7-16343-00-00 SCREW, ADJSCREW, ADJ
-
1193210-48364-00 O-RINGO-RING
-
125EL-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
1392907-08200-00 WASHERWASHER
-
1495307-08700-00 NUTNUT
-
1590506-10069-00 SPRING, TENSIONSPRING, TENSION
-
1693104-14059-00 OIL SEALOIL SEAL
-
175EL-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
184X7-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
1993340-21505-00 BEARINGBEARING
-
2090201-151A7-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
214X7-16150-02-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
222JN-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
235EL-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
244X7-16384-00-00 PLATE, SEATPLATE, SEAT
-
254X7-16383-01-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
264X7-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
274X7-16385-00-00 RING, CLUTCH BOSSRING, CLUTCH BOSS
-
2822U-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
291TA-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
301TA-16351-01-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
311TA-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
3297027-06025-00 BOLTBOLT
-
331TA-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
341TA-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
3590215-20170-00 WASHER, LOCKWASHER, LOCK
-
3690170-20257-00 NUTNUT
