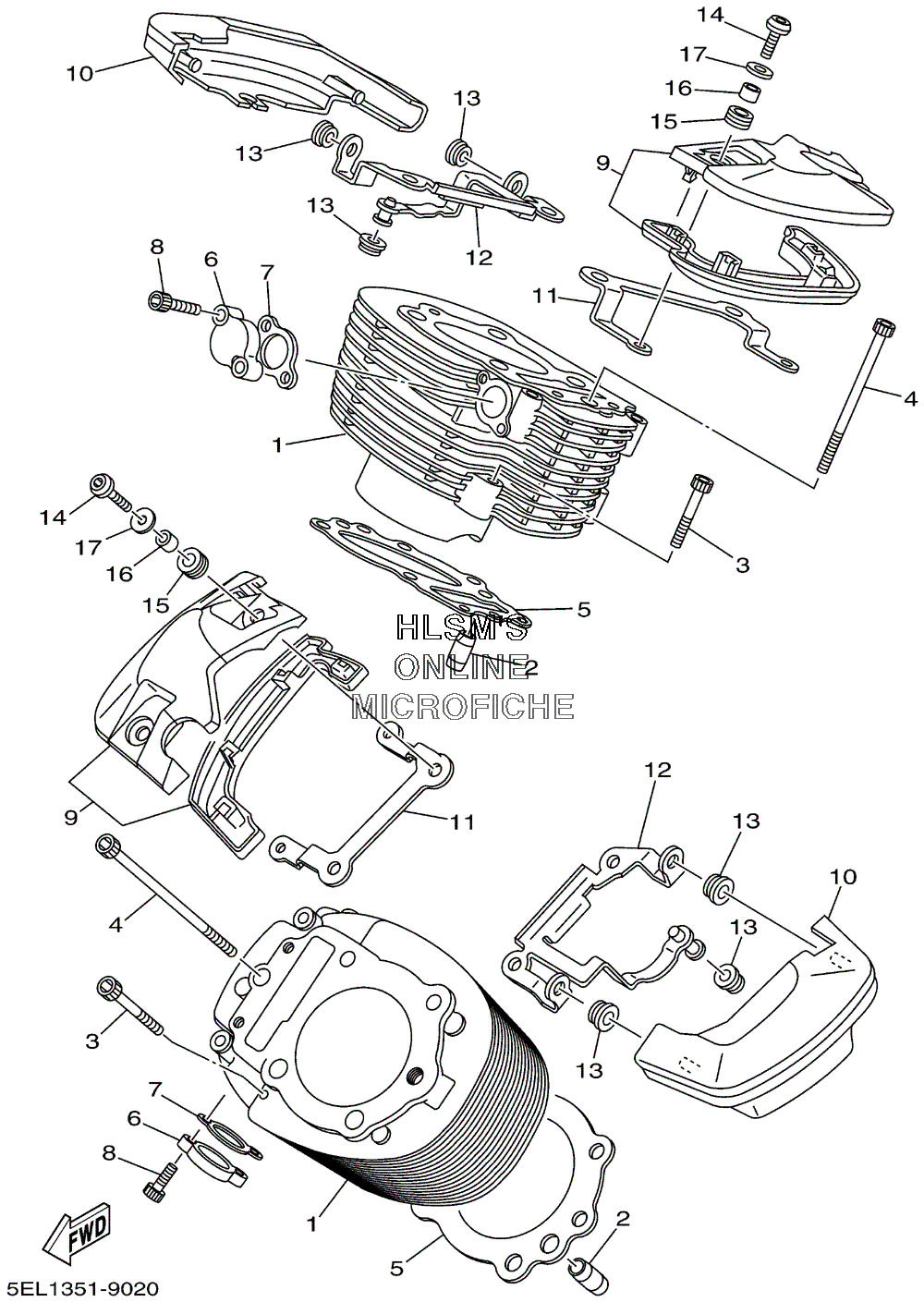

CYLINDER для Yamaha XVS 1100 V-STAR CUSTOM - 2001 года выпуска
-
№АртикулНазвание
-
15EL-11311-00-00 CYL 1CYL 1
-
290387-087A5-00 COLLARCOLLAR
-
391314-06040-00 BOLTBOLT
-
491314-06100-00 BOLTBOLT
-
55EL-11351-00-00 GASKET, CYLGASKET, CYL
-
65EL-12215-00-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
74FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
891314-06025-00 BOLTBOLT
-
95EL-11190-00-00 COVER, CYL HEAD 1COVER, CYL HEAD 1
-
105EL-11186-00-00 COVER, CYL HEAD SIDE 2COVER, CYL HEAD SIDE 2
-
115EL-11152-00-00 BRACKET, CYL HEAD COVERBRACKET, CYL HEAD COVER
-
125EL-11142-00-00 BRACKET, CYL HEAD COVER 2BRACKET, CYL HEAD COVER 2
-
1390480-10627-00 GROMMETGROMMET
-
1490149-06298-00 SCREWSCREW
-
1590480-13018-00 GROMMETGROMMET
-
1690387-066M3-00 COLLARCOLLAR
-
1790201-06057-00 WASHER, PLATEWASHER, PLATE
