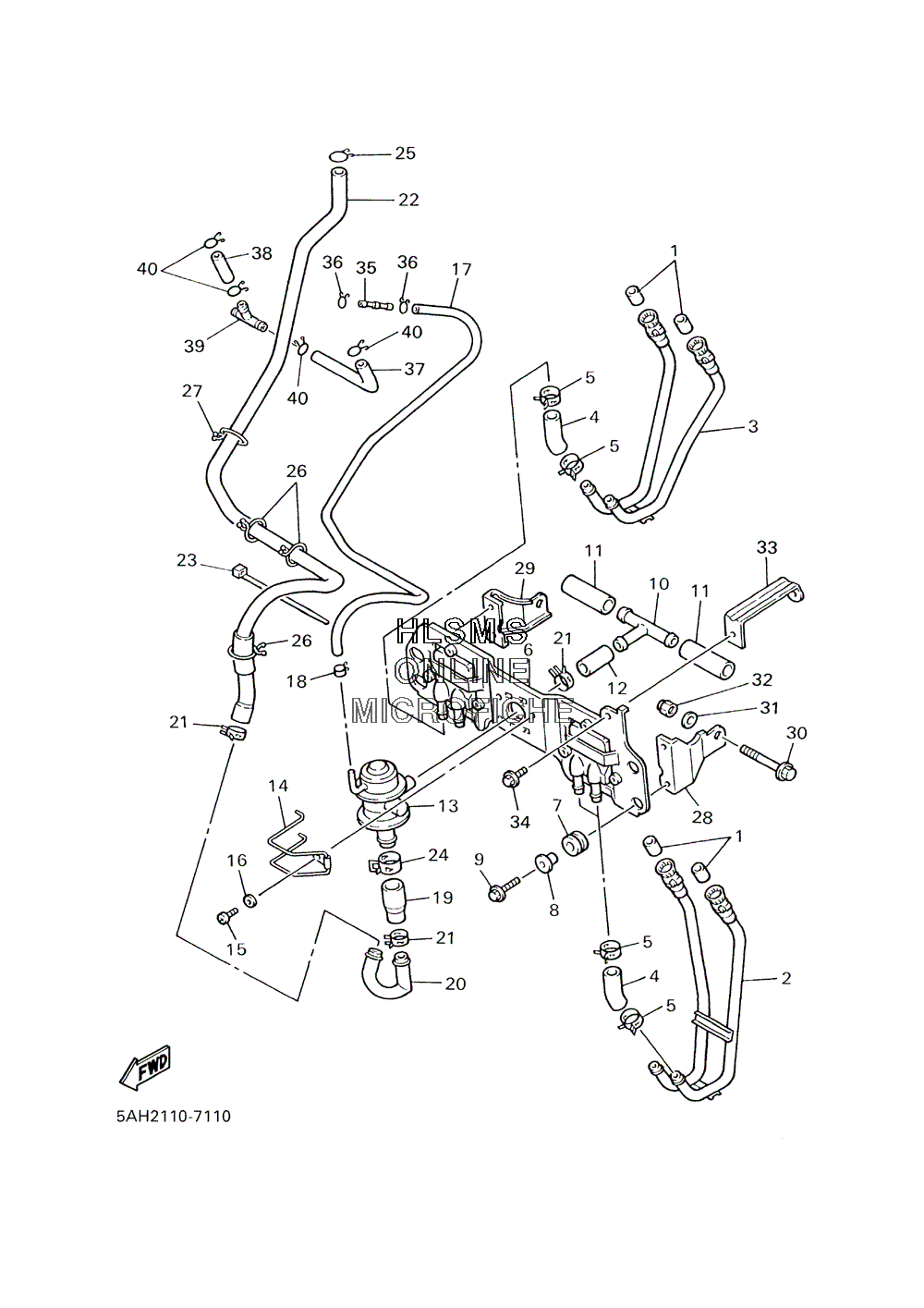

AIR INDUCTION SYSTEM для Yamaha YZF 600 R - 2001 года выпуска
-
№АртикулНазвание
-
142H-14714-10-00 GASKET, MUFFLER (CALF ONLY)GASKET, MUFFLER (CALF ONLY)
-
24WE-14872-00-00 PIPE 2 (CALF ONLY)PIPE 2 (CALF ONLY)
-
34MM-14873-00-00 PIPE 3 (CALF ONLY)PIPE 3 (CALF ONLY)
-
42LJ-14883-00-00 HOSE, BEND 3 (CALF ONLY)HOSE, BEND 3 (CALF ONLY)
-
590468-08104-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
64MM-14808-00-00 REED VALVE ASSY (CALF ONLY)REED VALVE ASSY (CALF ONLY)
-
790480-14229-00 GROMMET (CALF ONLY)GROMMET (CALF ONLY)
-
890387-07391-00 COLLAR (CALF ONLY)COLLAR (CALF ONLY)
-
995817-06025-00 BOLT, FLANGE (CALF ONLY)BOLT, FLANGE (CALF ONLY)
-
102LJ-14874-00-00 PIPE 4 (CALF ONLY)PIPE 4 (CALF ONLY)
-
114MM-14881-00-00 HOSE, BEND 1 (CALF ONLY)HOSE, BEND 1 (CALF ONLY)
-
122LJ-14882-00-00 HOSE, BEND 2 (CALF ONLY)HOSE, BEND 2 (CALF ONLY)
-
134MM-14840-00-00 AIR CUT VALVE ASSY (CALF ONLY)AIR CUT VALVE ASSY (CALF ONLY)
-
1490462-20188-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
1598507-06016-00 SCREW, PAN HEAD (CALF ONLY)SCREW, PAN HEAD (CALF ONLY)
-
1692907-06600-00 WASHER, PLATE (CALF ONLY)WASHER, PLATE (CALF ONLY)
-
1790445-090G9-00 HOSE (L685) (CALF ONLY)HOSE (L685) (CALF ONLY)
-
1890467-08092-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
194MM-14885-00-00 HOSE, BEND 5 (CALF ONLY)HOSE, BEND 5 (CALF ONLY)
-
204MM-14875-00-00 PIPE 5 (CALF ONLY)PIPE 5 (CALF ONLY)
-
2190467-19051-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
224MM-14884-00-00 HOSE, BEND 4 (CALF ONLY)HOSE, BEND 4 (CALF ONLY)
-
235Y9-12491-00-00 CLAMP 1 (CALF ONLY)CLAMP 1 (CALF ONLY)
-
2490467-23067-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
2590467-14015-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
2690464-23041-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
2790464-30040-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
284MM-14868-00-00 BRACKET 2 (CALF ONLY)BRACKET 2 (CALF ONLY)
-
294MM-14869-00-00 BRACKET 3 (CALF ONLY)BRACKET 3 (CALF ONLY)
-
3090105-10169-00 BOLT, WASHER BASED (CALF ONLY)BOLT, WASHER BASED (CALF ONLY)
-
3192907-10600-00 WASHER (CALF ONLY)WASHER (CALF ONLY)
-
3295617-10100-00 NUT, U (CALF ONLY)NUT, U (CALF ONLY)
-
334MM-14849-00-00 BRACKET (CALF ONLY)BRACKET (CALF ONLY)
-
3495817-06010-00 BOLT, FLANGE (CALF ONLY)BOLT, FLANGE (CALF ONLY)
-
354MM-13582-00-00 PIPE (CALF ONLY)PIPE (CALF ONLY)
-
3690467-08017-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
371WT-24311-00-00 PIPE, FUEL 1 (CALF ONLY)PIPE, FUEL 1 (CALF ONLY)
-
3890445-113E8-00 HOSE (L45) (CALF ONLY)HOSE (L45) (CALF ONLY)
-
393H3-24376-00-00 PIPE, JOINT 1 (CALF ONLY)PIPE, JOINT 1 (CALF ONLY)
-
4090467-10008-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
