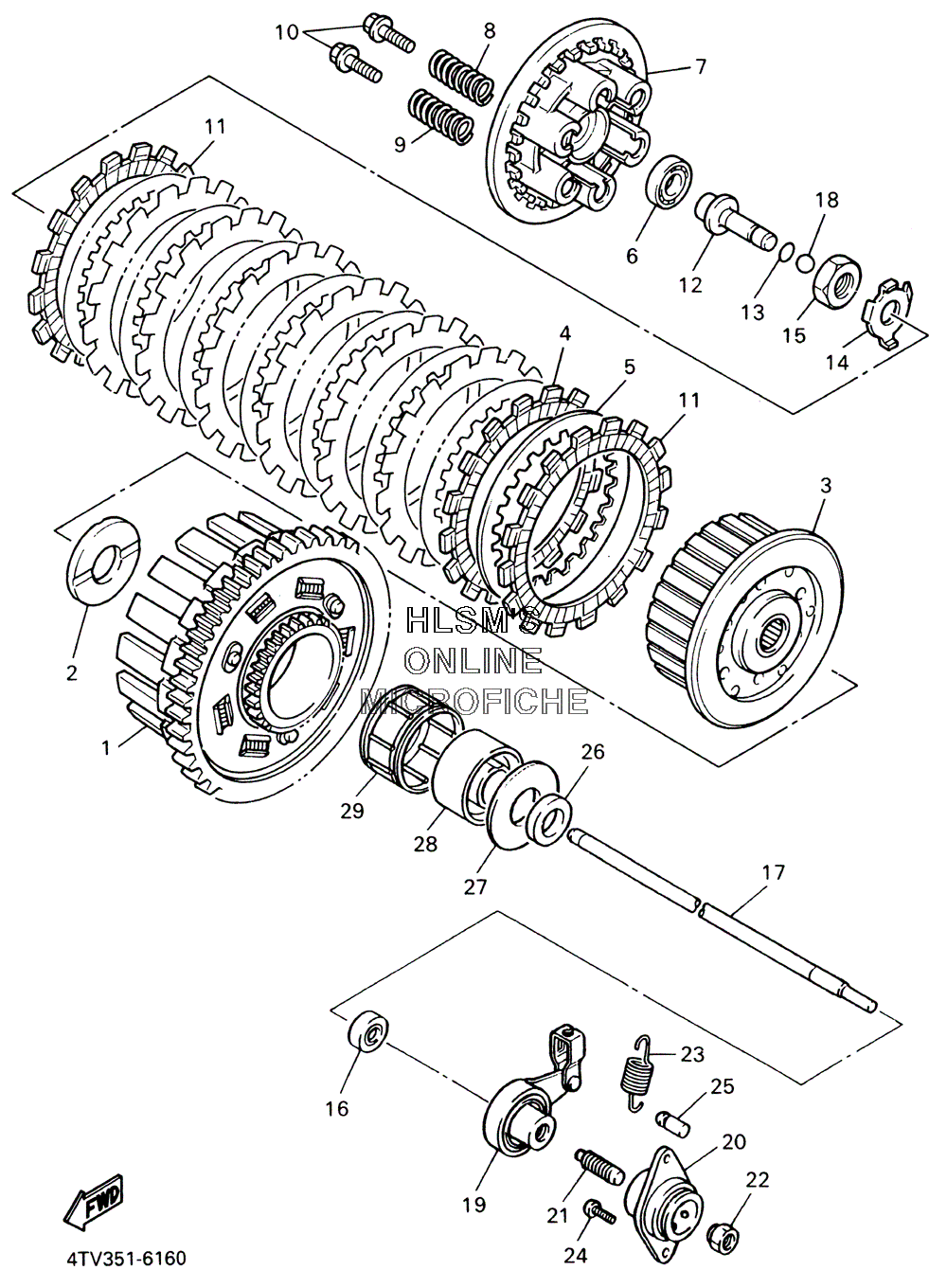

CLUTCH для Yamaha YZF 600 R - 2001 года выпуска
-
№АртикулНазвание
-
14JH-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
21WG-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
34JH-16371-01-00 BOSS, CLUTCHBOSS, CLUTCH
-
44JH-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
51LX-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
693306-00105-00 BEARINGBEARING
-
74JH-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
890501-23346-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990501-224J9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090159-06092-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
113JD-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
124JH-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
1393210-48364-00 O-RINGO-RING
-
1490215-18225-00 WASHER, LOCKWASHER, LOCK
-
1590170-18221-00 NUTNUT
-
1693109-08058-00 OIL SEAL (SD07 8-21-5.5 HS)OIL SEAL (SD07 8-21-5.5 HS)
-
174JH-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
1893505-16006-00 BALLBALL
-
194JH-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
201WG-16304-00-00 BALL SCREW HOUSING ASSYBALL SCREW HOUSING ASSY
-
2190113-08021-00 BOLT, SETBOLT, SET
-
2290179-08179-00 NUTNUT
-
2390506-11488-00 SPRING, TENSIONSPRING, TENSION
-
2490157-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
25132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
2690387-212R3-00 COLLARCOLLAR
-
271WG-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
281WG-16181-00-00 SPACER 1SPACER 1
-
2993310-345R8-00 BEARINGBEARING
