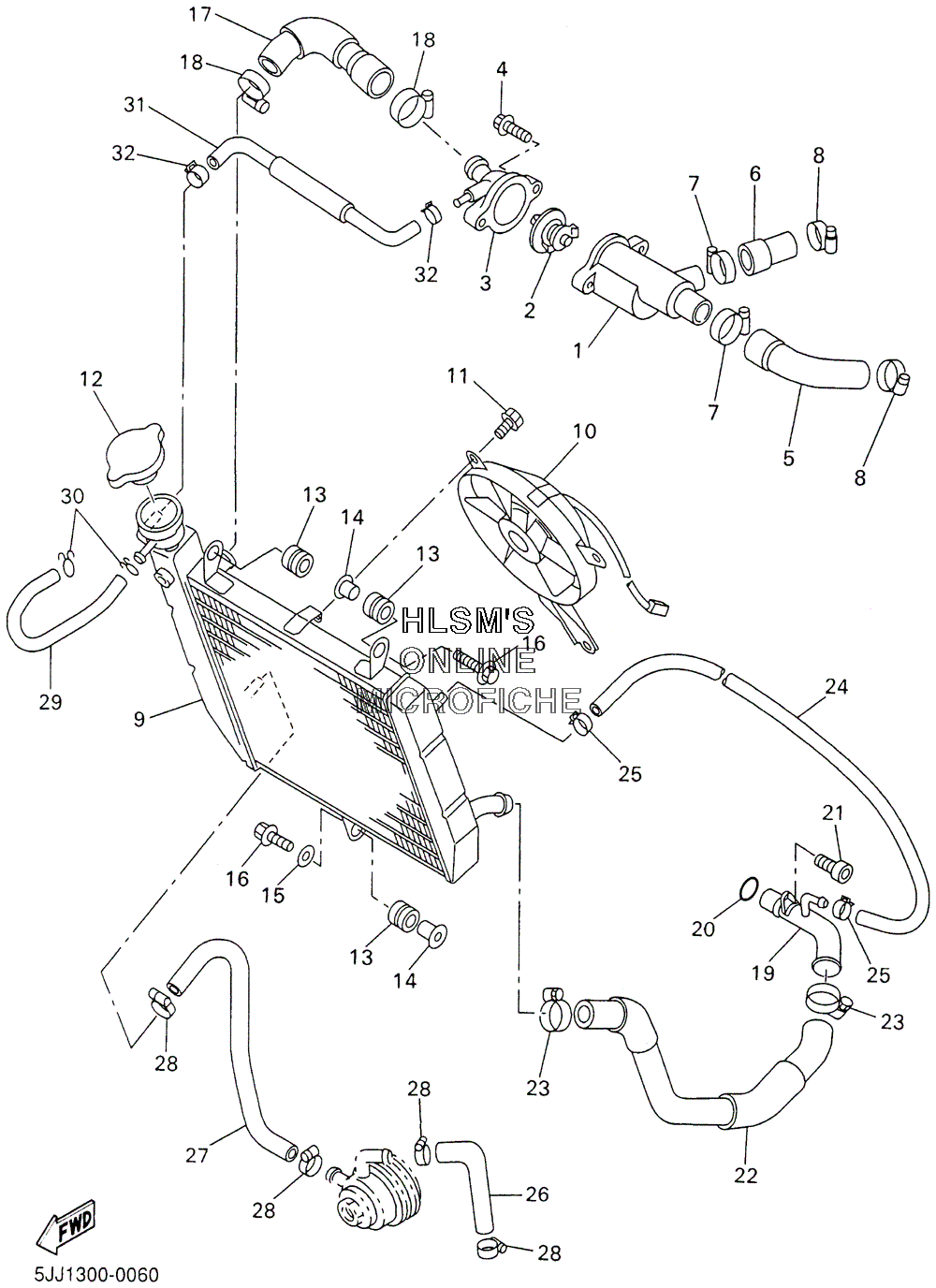

RADIATOR для Yamaha YZF-R1 - 2001 года выпуска
-
№АртикулНазвание
-
14XV-12417-00-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
24FM-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
34XV-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
495817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
54XV-12577-00-00 HOSE 2HOSE 2
-
64XV-12578-00-00 HOSE 3HOSE 3
-
790450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
890450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
95JJ-12461-00-00 RADIATOR ASSYRADIATOR ASSY
-
104XV-12405-00-00 BLOWER ASSYBLOWER ASSY
-
1195817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
124JH-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
1390480-15363-00 GROMMETGROMMET
-
1490387-07391-00 COLLARCOLLAR
-
1590201-063J2-00 WASHER, PLATEWASHER, PLATE
-
1695817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
174XV-12579-00-00 HOSE 4HOSE 4
-
1890450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
194XV-12484-00-00 PIPE 4PIPE 4
-
2093210-23787-00 O-RINGO-RING
-
2190317-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
224XV-12551-00-00 HOSE 7HOSE 7
-
2390450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
244XV-1243A-00-00 HOSE 1HOSE 1
-
2590467-11090-00 CLIPCLIP
-
265JJ-12588-00-00 HOSE 5HOSE 5
-
275JJ-12589-00-00 HOSE 6HOSE 6
-
2890450-25037-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2990445-09M25-00 HOSE (L130)HOSE (L130)
-
3090467-08003-00 CLIPCLIP
-
314XV-12552-00-00 HOSE 8HOSE 8
-
3290467-11090-00 CLIPCLIP
