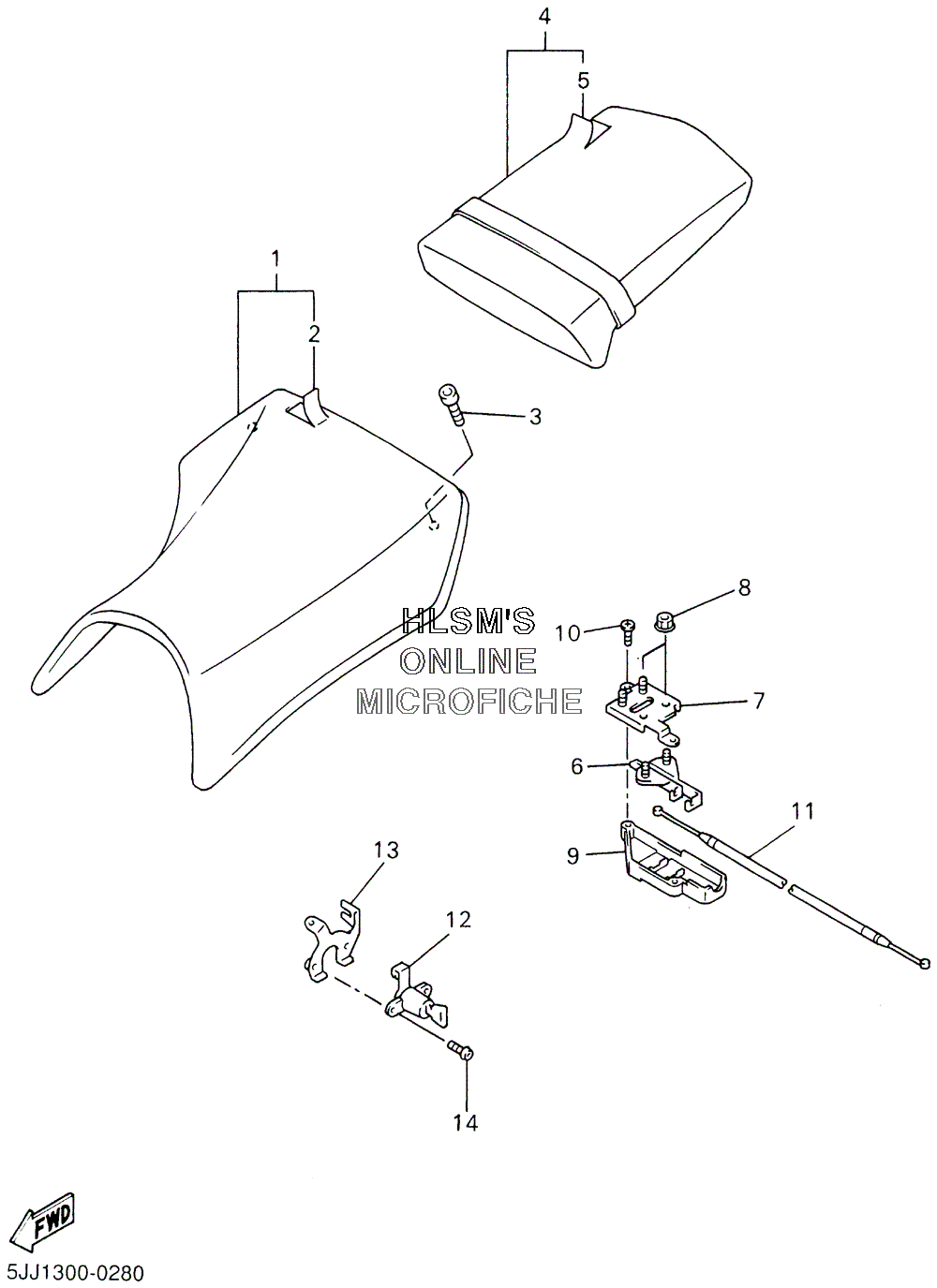

SEAT для Yamaha YZF-R1 - 2001 года выпуска
-
№АртикулНазвание
-
15JJ-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25JJ-2470F-00-00 ...COVER, SEAT...COVER, SEAT
-
390110-06258-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45JJ-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
55JJ-24751-00-00 ...COVER, TANDEM SEAT...COVER, TANDEM SEAT
-
64BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
75JJ-24792-00-00 PLATEPLATE
-
895707-06500-00 NUT, FLANGENUT, FLANGE
-
95JJ-2475X-01-00 COVER,2COVER,2
-
1097707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
115JJ-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
123CK-W2470-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
134XV-2117K-00-00 STAY, LOCKSTAY, LOCK
-
1490149-06308-00 SCREWSCREW
