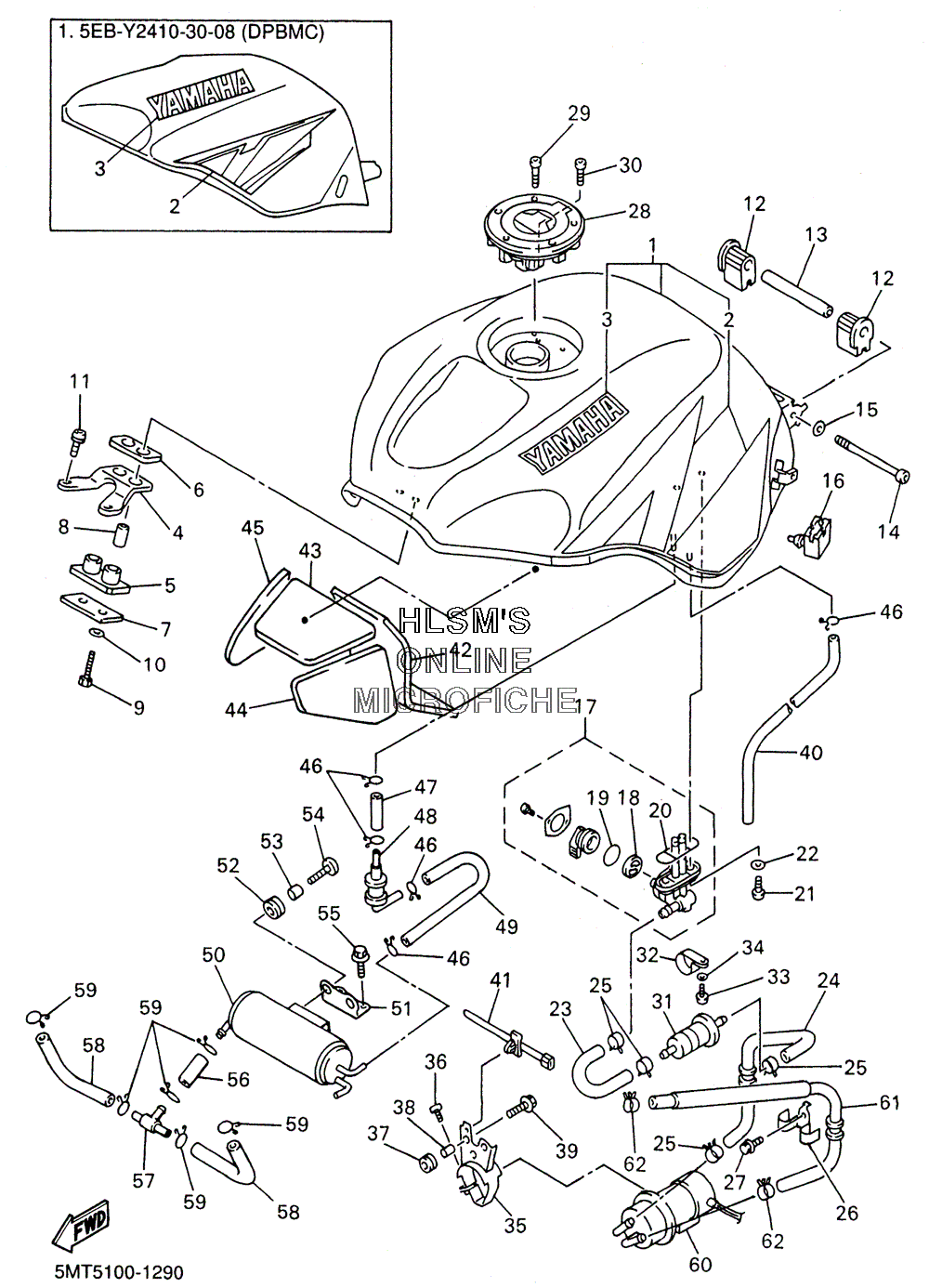

FUEL TANK (CALF ONLY) для Yamaha YZF-R6 CHAMPIONS LTD ED. - 2001 года выпуска
-
№АртикулНазвание
-
15EB-Y2410-30-09 FUEL TANK COMP. (DEEP PURPLISH BLUE METALLIC (DPBMC) / BLUISH WHITE (BWC1))FUEL TANK COMP. (DEEP PURPLISH BLUE METALLIC (DPBMC) / BLUISH WHITE (BWC1))
-
25MT-24244-00-00 ...GRAPHIC, FUEL TANK 1...GRAPHIC, FUEL TANK 1
-
35MT-24161-00-00 ...EMBLEM 1...EMBLEM 1
-
44TV-2153A-40-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
55MT-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
65EB-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
72GH-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
82GH-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
990387-06027-00 COLLARCOLLAR
-
1097007-06030-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
1290159-06005-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
135EB-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1490387-061W6-00 COLLARCOLLAR
-
1591317-06090-00 BOLT, SOCKETBOLT, SOCKET
-
1690201-06050-00 WASHER, PLATEWASHER, PLATE
-
175EB-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
184TV-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
193XV-24523-00-00 ...VALVE...VALVE
-
203XV-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
214X8-24512-00-00 ...O-RING...O-RING
-
2290149-06008-00 SCREWSCREW
-
2390202-05193-00 WASHER, PLATEWASHER, PLATE
-
245EB-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
255EB-24312-00-00 PIPE 2PIPE 2
-
2690467-14057-00 CLIPCLIP
-
275EB-2417H-00-00 CLAMP 1CLAMP 1
-
2895027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
295JJ-24602-00-00 CAP ASSYCAP ASSY
-
3090110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3191317-05010-00 BOLTBOLT
-
324TV-24560-00-00 FILTER ASSYFILTER ASSY
-
331AE-24366-00-00 CLAMP, FUEL PIPE 1CLAMP, FUEL PIPE 1
-
3498507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3592907-06600-00 WASHER, PLATEWASHER, PLATE
-
365EB-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
3798507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3890480-13163-00 GROMMETGROMMET
-
3990387-060G7-00 COLLARCOLLAR
-
4090119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4190445-102G9-00 HOSE (L650)HOSE (L650)
-
4290464-12089-00 CLAMPCLAMP
-
435EB-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
445EB-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
455EB-2411J-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
465EB-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
4790467-10008-00 CLIPCLIP
-
484DU-24321-00-00 PIPE 10PIPE 10
-
493UH-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
505GV-24314-00-00 PIPE 4PIPE 4
-
515GV-24170-00-00 CANISTER ASSYCANISTER ASSY
-
525GV-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
5390480-13018-00 GROMMETGROMMET
-
5490387-062L2-00 COLLARCOLLAR
-
5590110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5695027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
575GV-14149-00-00 PIPEPIPE
-
583H3-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
595GV-14465-00-00 PIPEPIPE
-
6090467-10008-00 CLIPCLIP
-
615EB-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
625EB-14294-00-00 HOSEHOSE
-
6390467-11044-00 CLIP, SCISSORCLIP, SCISSOR
