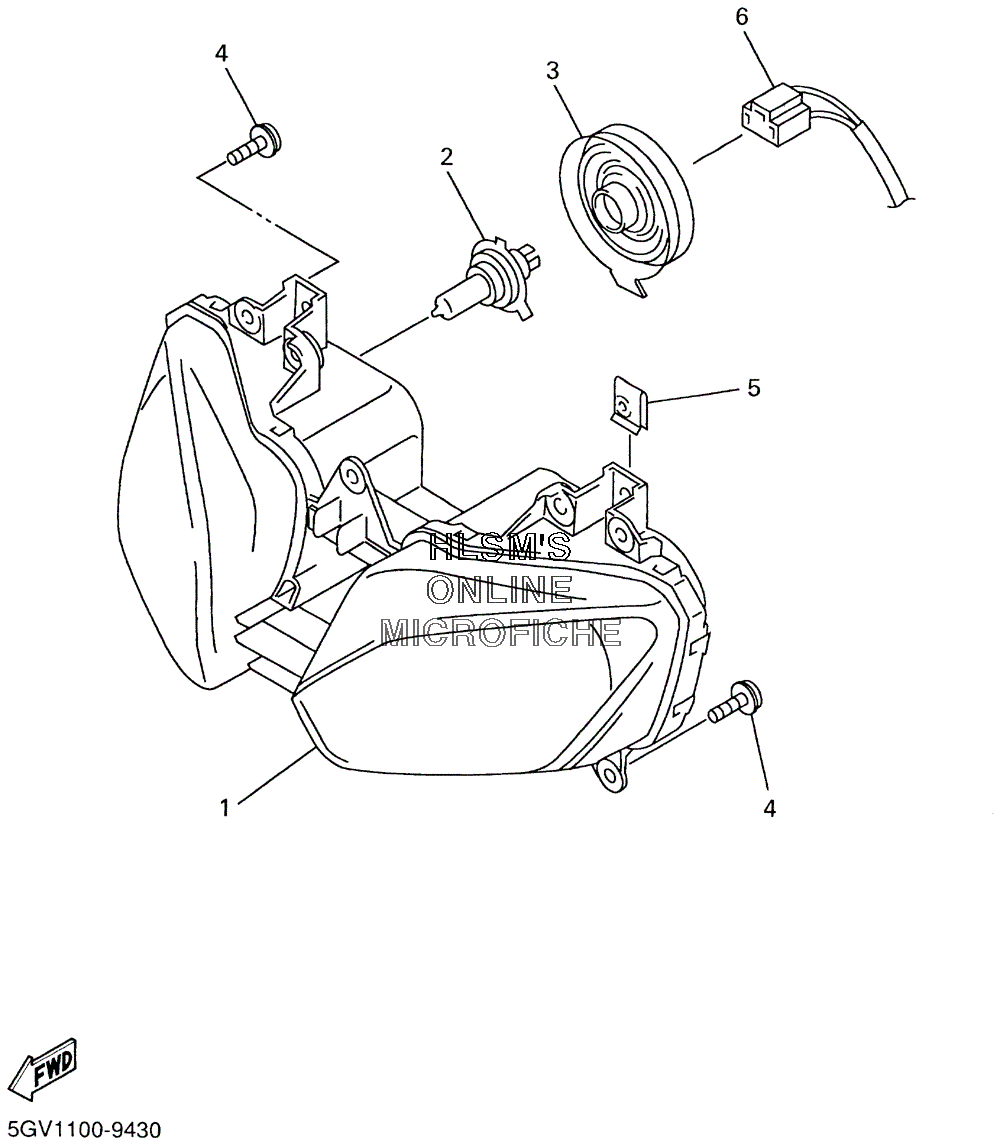

HEADLIGHT для Yamaha YZF-R6 CHAMPIONS LTD ED. - 2001 года выпуска
-
№АртикулНазвание
-
15EB-84310-20-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
25V2-84314-00-XX BULB (12V-60/55W)BULB (12V-60/55W)
-
34SV-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
490164-05014-00 SCREW, TAPPINGSCREW, TAPPING
-
590183-05024-00 NUT, SPRINGNUT, SPRING
-
65MT-84359-10-00 CORD, HEADLIGHTCORD, HEADLIGHT
