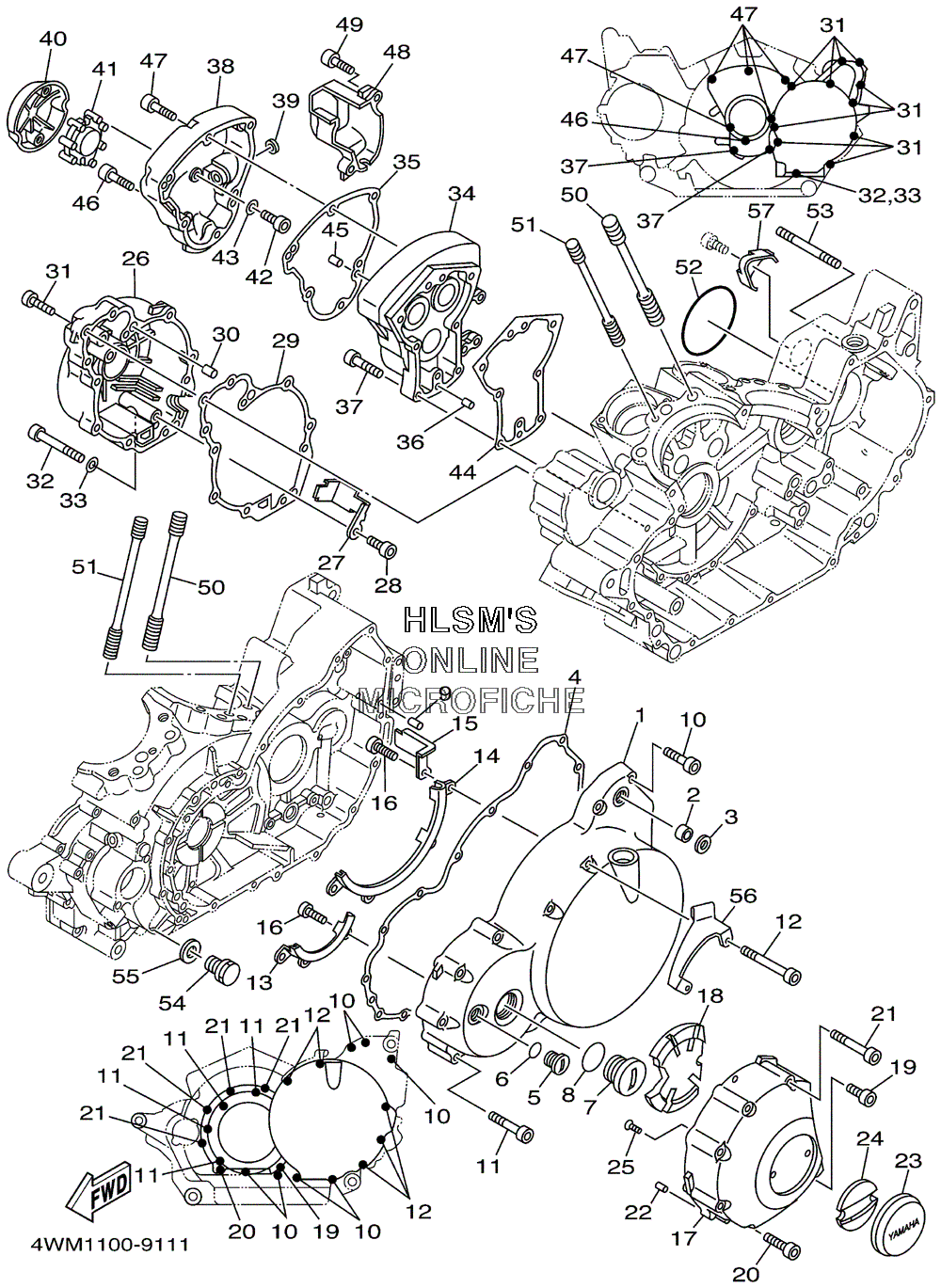

CRANKCASE COVER для Yamaha XV 1600 AS MIDNIGHT STAR - 2002 года выпуска
-
№АртикулНазвание
-
14WM-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
293317-11287-00 BEARINGBEARING
-
393102-12224-00 OIL SEALOIL SEAL
-
44WM-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
590340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
693210-14369-00 O-RINGO-RING
-
790340-32080-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-32172-00 O-RINGO-RING
-
999510-10114-00 PIN, DOWELPIN, DOWEL
-
1091314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1191314-06045-00 BOLTBOLT
-
1291314-06070-00 BOLTBOLT
-
134WM-15142-00-00 GUIDE 1GUIDE 1
-
144WM-15143-00-00 GUIDEGUIDE
-
154WM-15484-00-00 CLAMP 2CLAMP 2
-
1698507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
175MB-15423-00-00 COVER 2COVER 2
-
184WM-15326-00-00 DAMPER, ENGINE MOUNT 2DAMPER, ENGINE MOUNT 2
-
1991314-06025-00 BOLTBOLT
-
2091314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2191314-06060-00 BOLTBOLT
-
2291808-16023-00 PIN, DOWELPIN, DOWEL
-
234WM-15425-00-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
244WM-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
2598707-05012-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
265MB-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
274WM-15377-00-00 GUIDE, INLETGUIDE, INLET
-
2891317-06010-00 BOLTBOLT
-
294WM-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
3099510-10114-00 PIN, DOWELPIN, DOWEL
-
3191314-06030-00 BOLTBOLT
-
3291314-06065-00 BOLTBOLT
-
3390430-06014-00 GASKETGASKET
-
345MB-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
354WM-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
3693606-10227-00 PIN, DOWELPIN, DOWEL
-
3791314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
384WM-12278-01-00 COVER, DECOMP.COVER, DECOMP.
-
3993109-08050-00 OIL SEALOIL SEAL
-
404WM-15427-00-00 COVER, CAP 2COVER, CAP 2
-
414WM-15335-00-00 DAMPER 3DAMPER 3
-
4291317-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4390430-06014-00 GASKETGASKET
-
444WM-12286-00-00 GASKET, DECOMPRESSIONGASKET, DECOMPRESSION
-
4593606-10227-00 PIN, DOWELPIN, DOWEL
-
4691314-06025-00 BOLTBOLT
-
4791314-06030-00 BOLTBOLT
-
485MB-12275-00-00 COVER, DECOMP LEVERCOVER, DECOMP LEVER
-
4991314-06025-00 BOLTBOLT
-
5090116-12240-00 BOLT, STUDBOLT, STUD
-
5190116-10344-00 BOLT, STUDBOLT, STUD
-
5293210-750A1-00 O-RINGO-RING
-
5390116-08065-00 BOLT, STUDBOLT, STUD
-
5490340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
55214-11198-01-00 GASKETGASKET
-
564WM-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
575MB-15413-00-00 COVERCOVER
