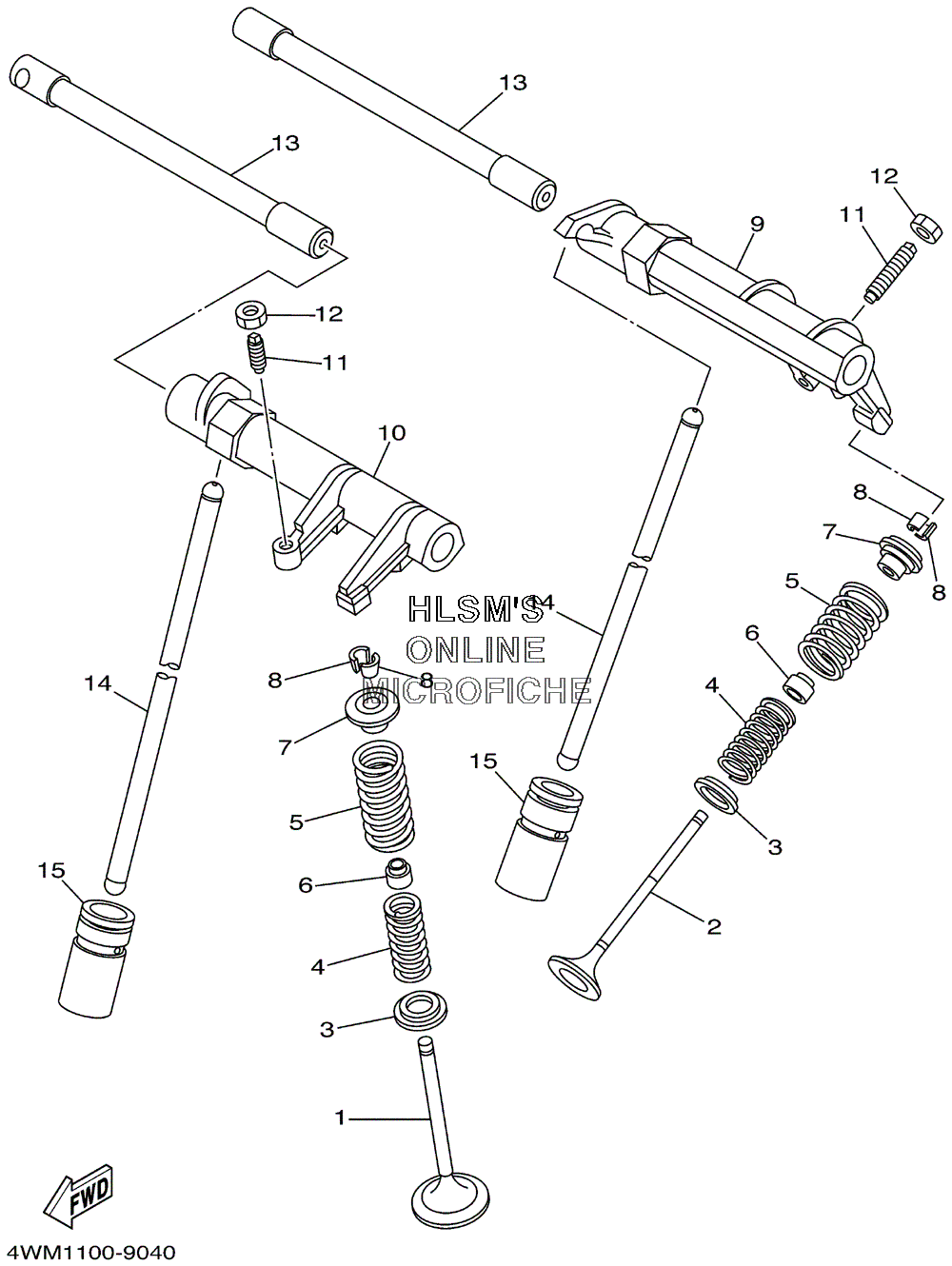

VALVE для Yamaha XV 1600 AS MIDNIGHT STAR - 2002 года выпуска
-
№АртикулНазвание
-
14WM-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
24WM-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
326H-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
44WM-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
54WM-12114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
64KM-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
726H-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
84G0-12118-00-00 COTTER, VALVECOTTER, VALVE
-
94WM-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
104WM-12161-00-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
1131G-12159-02-00 SCREW, VALVE ADJSCREW, VALVE ADJ
-
1231G-12158-00-00 NUT, LOCKNUT, LOCK
-
134WM-12146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
144WM-12154-00-00 ROD, VALVE PUSHROD, VALVE PUSH
-
154WM-12153-00-00 LIFTER, VALVELIFTER, VALVE
