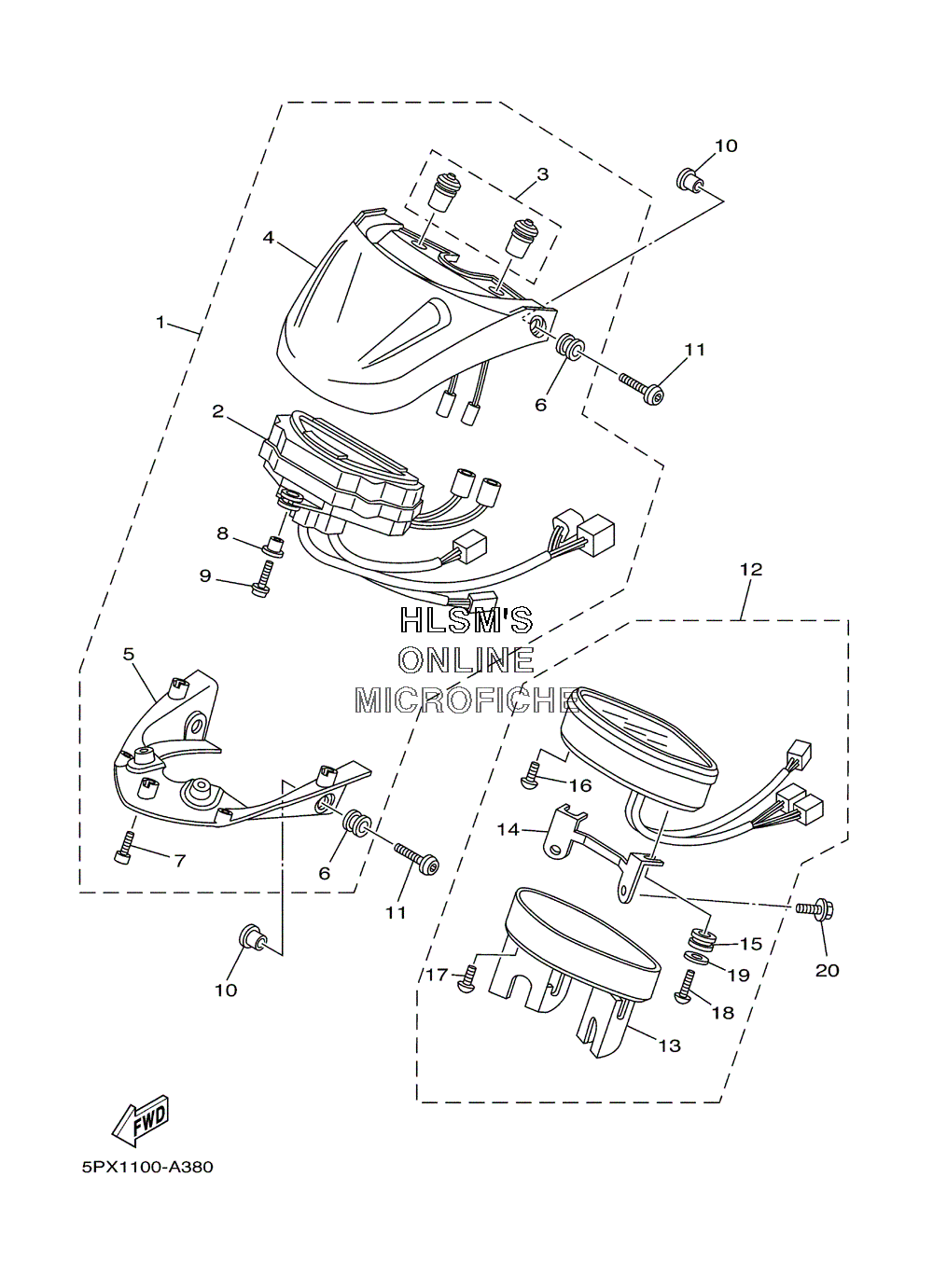

INSTRUMENT PANEL для Yamaha XV 1700 PC ROAD STAR WARRIOR CALIFORNIA - 2002 года выпуска
-
№АртикулНазвание
-
15PX-83500-00-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
25PX-8358G-00-00 ...LCD ASSY...LCD ASSY
-
35PX-8358J-00-00 ...SWITCH, METER CONTROL...SWITCH, METER CONTROL
-
45PX-8357B-00-00 ...COVER, METER 1 ASSY...COVER, METER 1 ASSY
-
55PX-83579-00-00 ...COVER, METER 2...COVER, METER 2
-
690480-12007-00 ...GROMMET...GROMMET
-
791380-04010-00 ...BOLT...BOLT
-
85PX-83522-00-00 ...COLLAR...COLLAR
-
997602-03112-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
1090560-06201-00 SPACERSPACER
-
1190149-06302-00 SCREW, SPECIAL SHAPESCREW, SPECIAL SHAPE
-
125PX-83570-00-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
135PX-83507-00-00 ...COVER, SPEEDOMETER...COVER, SPEEDOMETER
-
145PX-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
154XV-83513-00-00 ...DAMPER...DAMPER
-
1697707-30014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1790164-03010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1897707-50016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1953Y-83524-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
2091314-08012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
