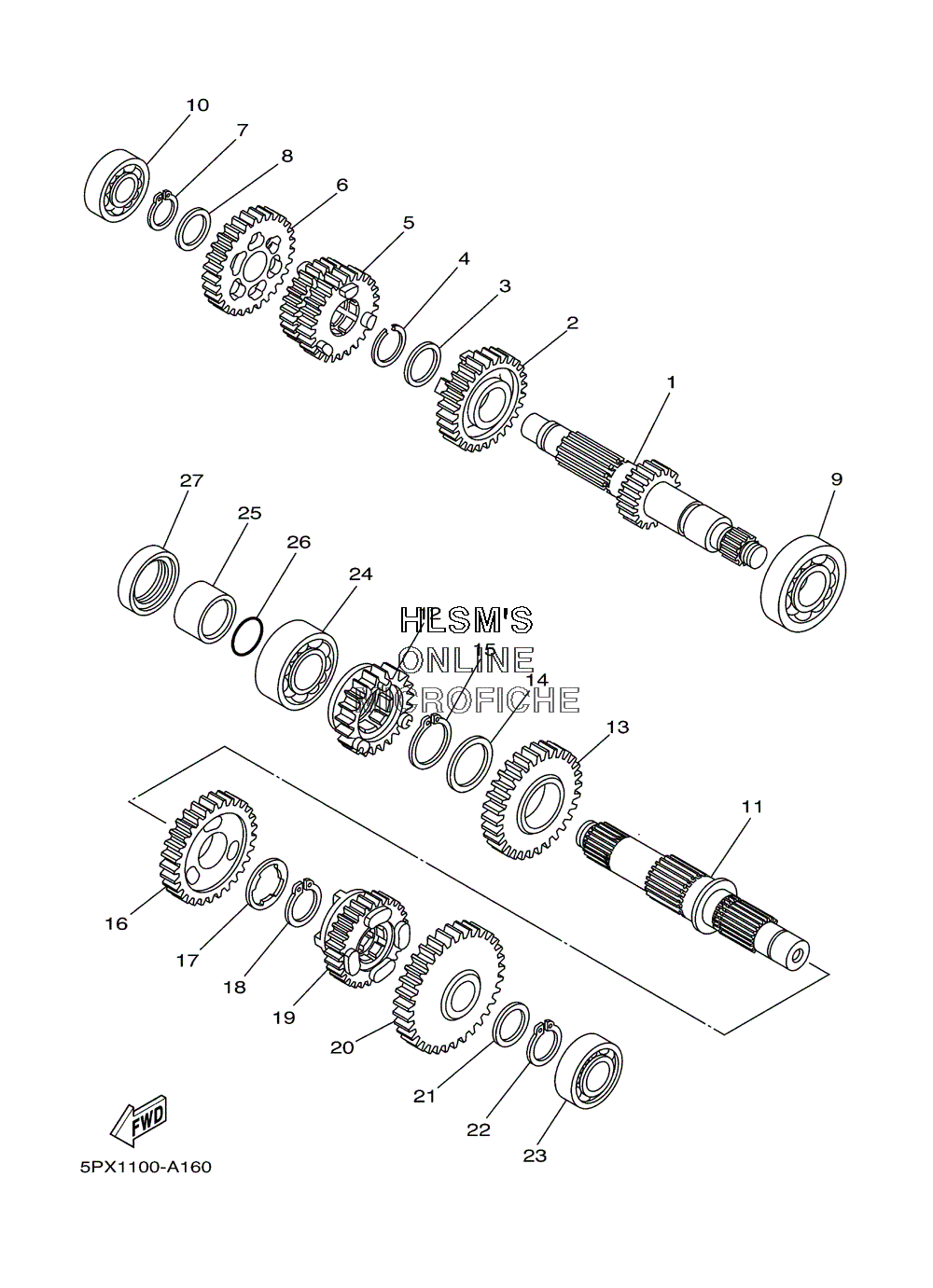

TRANSMISSION для Yamaha XV 1700 PC ROAD STAR WARRIOR CALIFORNIA - 2002 года выпуска
-
№АртикулНазвание
-
15PX-17411-00-00 AXLE, MAINAXLE, MAIN
-
25PX-17141-00-00 GEAR, 4TH PINIONGEAR, 4TH PINION
-
390209-25196-00 WASHERWASHER
-
493440-28062-00 CIRCLIPCIRCLIP
-
55PX-17121-00-00 GEAR, 2ND PINIONGEAR, 2ND PINION
-
65PX-17151-00-00 GEAR, 5TH PINIONGEAR, 5TH PINION
-
793410-23056-00 CIRCLIPCIRCLIP
-
890201-232K5-00 WASHER, PLATEWASHER, PLATE
-
993306-37806-00 BEARINGBEARING
-
1093306-30441-00 BEARINGBEARING
-
114WM-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
125PX-17251-00-00 GEAR, 5TH WHEELGEAR, 5TH WHEEL
-
134NK-17221-01-00 GEAR, 2ND WHEEL (30T)GEAR, 2ND WHEEL (30T)
-
1490209-32231-00 WASHERWASHER
-
1593440-34025-00 CIRCLIPCIRCLIP
-
164NK-17231-01-00 GEAR, 3RD WHEEL (29T)GEAR, 3RD WHEEL (29T)
-
1790209-27192-00 WASHERWASHER
-
1893440-30077-00 CIRCLIPCIRCLIP
-
195PX-17241-00-00 GEAR, 4TH WHEELGEAR, 4TH WHEEL
-
205PX-17211-00-00 GEAR, 1ST WHEELGEAR, 1ST WHEEL
-
2190201-256K6-00 WASHER, PLATE (0.9T)WASHER, PLATE (0.9T)
-
2293410-25017-00 CIRCLIPCIRCLIP
-
2393306-20550-00 BEARING (B6205DU8)BEARING (B6205DU8)
-
2493305-20607-00 BEARINGBEARING
-
2590387-3015P-00 COLLARCOLLAR
-
2693210-30660-00 O-RINGO-RING
-
2793103-38184-00 OIL SEALOIL SEAL
