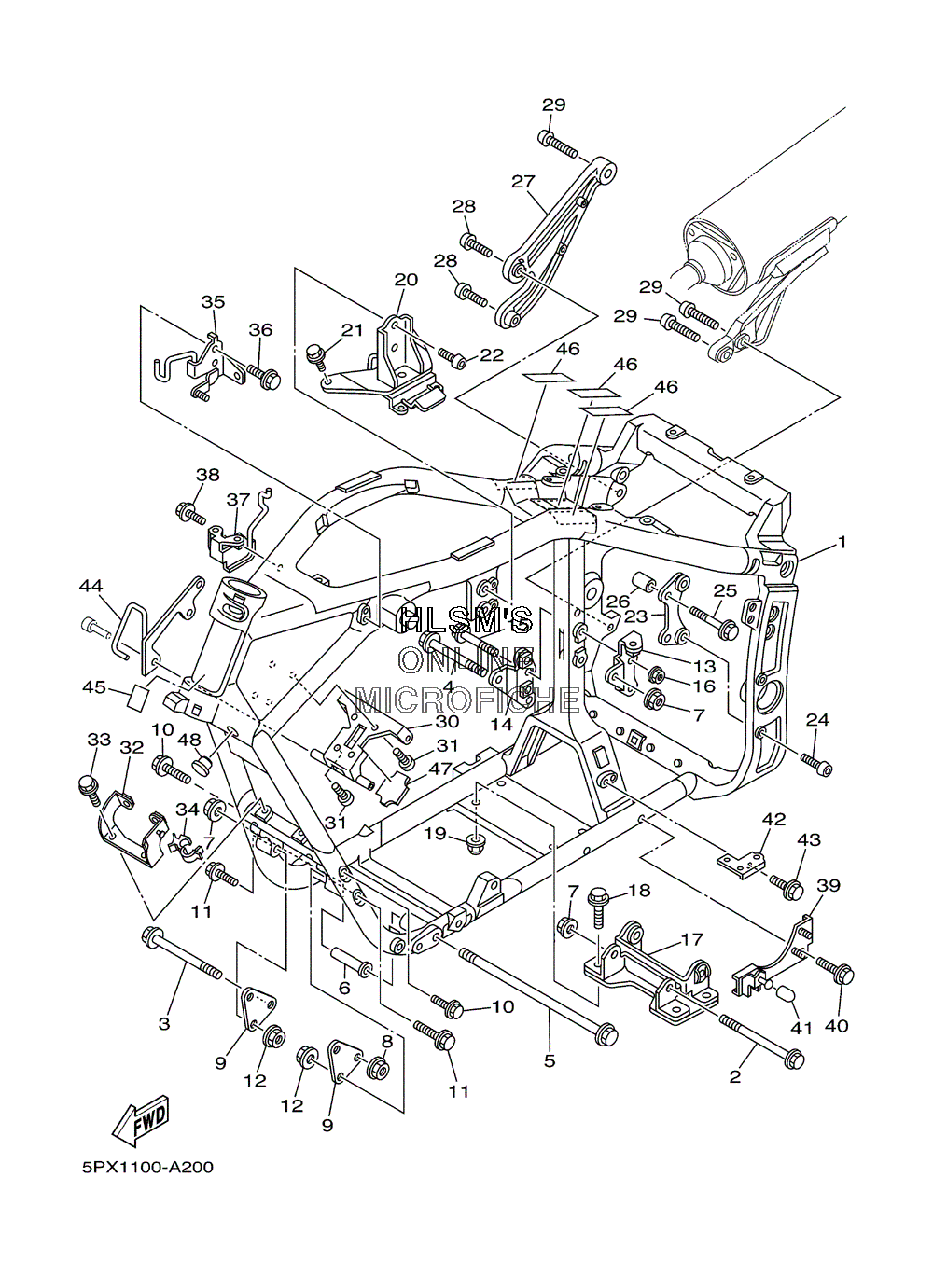

FRAME для Yamaha XV 1700 PC ROAD STAR WARRIOR - 2002 года выпуска
-
№АртикулНазвание
-
15PX-21110-00-00 FRAME COMP.FRAME COMP.
-
290105-12208-00 BOLT, FLANGEBOLT, FLANGE
-
390105-12016-00 BOLT, FLANGEBOLT, FLANGE
-
490105-12689-00 BOLT, FLANGEBOLT, FLANGE
-
590105-126A6-00 BOLT, FLANGEBOLT, FLANGE
-
65PX-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
795607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
94WM-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
1090105-10049-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-10060-00 BOLT, FLANGEBOLT, FLANGE
-
1290185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
135PX-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
145PX-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1590105-10737-00 BOLT, FLANGEBOLT, FLANGE
-
1695607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
175PX-21318-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
1895817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
1995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
205PX-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
2195827-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2290111-10003-00 BOLTBOLT
-
235PX-2137F-00-00 STAY 1STAY 1
-
2490111-10009-00 BOLTBOLT
-
2590105-10049-00 BOLT, FLANGEBOLT, FLANGE
-
2690387-10013-00 COLLARCOLLAR
-
275PX-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
2890111-10006-00 BOLTBOLT
-
2990157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
305PX-21359-00-00 BRACKET, COILBRACKET, COIL
-
3191317-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
325PX-2128A-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
3390105-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3490464-20191-00 CLAMPCLAMP
-
355PX-21597-10-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
3690105-06010-00 BOLT, FLANGEBOLT, FLANGE
-
375PX-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
3890105-06010-00 BOLT, FLANGEBOLT, FLANGE
-
395PX-21343-00-00 BRACKET, HORNBRACKET, HORN
-
4095817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
413VR-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
425PX-21453-00-00 BRACKET, SWITCHBRACKET, SWITCH
-
4390105-06696-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
445PX-21161-00-00 HOLDER, CABLEHOLDER, CABLE
-
455PX-21268-00-00 SEALSEAL
-
465PX-21269-00-00 SEALSEAL
-
475PX-21266-00-00 SHEET 1SHEET 1
-
4890338-15110-00 PLUGPLUG
