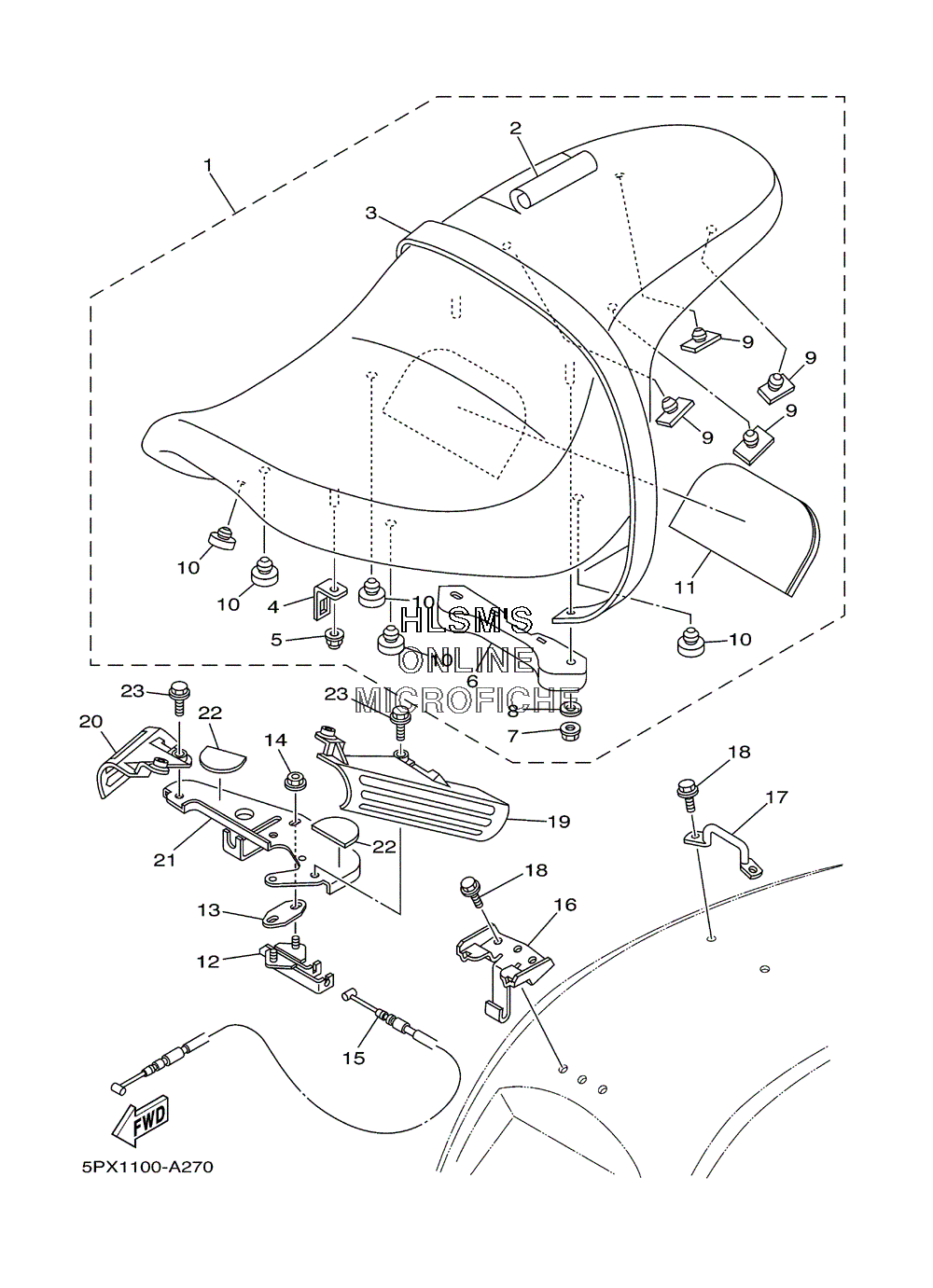

SEAT для Yamaha XV 1700 PC ROAD STAR WARRIOR - 2002 года выпуска
-
№АртикулНазвание
-
15PX-24730-00-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
25PX-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
35PX-24720-00-00 ...SEAT BAND ASSY...SEAT BAND ASSY
-
45PX-24719-00-00 ...STAY, REAR...STAY, REAR
-
595707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
65PX-2471A-00-00 ...STAY, SEAT...STAY, SEAT
-
795607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
890201-06M02-00 ......WASHER, PLATE......WASHER, PLATE
-
9509-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
1022W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
115PX-24723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
124BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
134BP-24792-00-00 PLATEPLATE
-
1495707-06500-00 NUT, FLANGENUT, FLANGE
-
155PX-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
165PX-2475N-00-00 BRACKETBRACKET
-
175PX-2475R-00-00 BRACKET 6BRACKET 6
-
1895027-08016-00 BOLT, FLANGEBOLT, FLANGE
-
195PX-2476U-00-00 PROTECTOR, 1PROTECTOR, 1
-
205PX-2476V-00-00 PROTECTOR, 2PROTECTOR, 2
-
215PX-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
225PX-21735-00-00 SEAL 2SEAL 2
-
2395817-08020-00 BOLT, FLANGEBOLT, FLANGE
