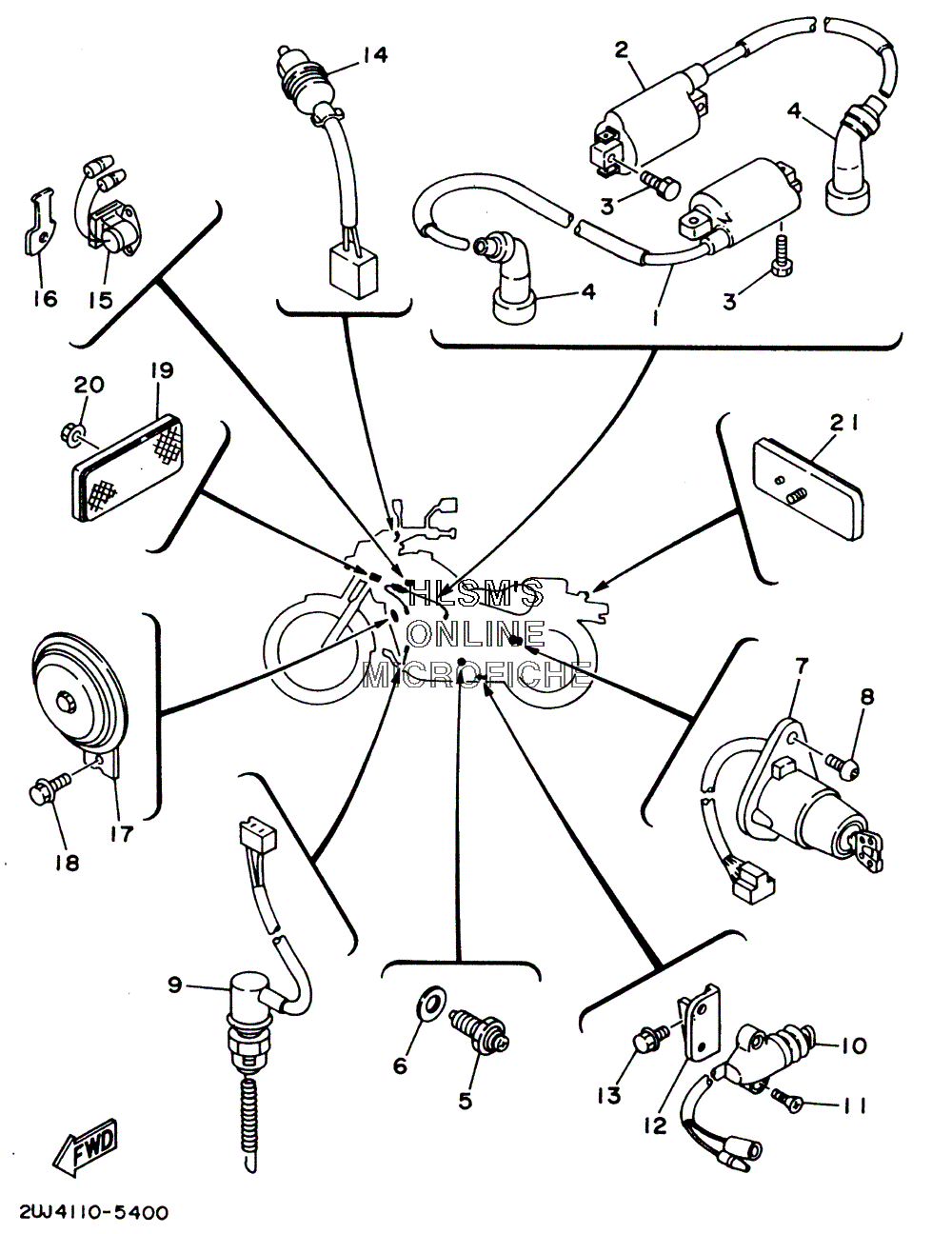

ELECTRICAL 2 для Yamaha XV 250 VIRAGO - 2002 года выпуска
-
№АртикулНазвание
-
14DN-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
24DN-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
390101-05396-00 BOLTBOLT
-
45EL-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
54KM-82540-00-00 REVERSE SWITCH ASSYREVERSE SWITCH ASSY
-
690430-10171-00 GASKETGASKET
-
72UJ-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
890149-06228-00 SCREWSCREW
-
93XV-82530-01-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
103LD-82566-60-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
1198507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
122UJ-82565-00-00 PANEL, SWITCHPANEL, SWITCH
-
1395817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
142UJ-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
153BT-82560-00-00 THERMOSWITCH ASSY (CALF ONLY)THERMOSWITCH ASSY (CALF ONLY)
-
155FU-82560-20-00 THERMOSWITCH ASSY (EXCEPT CALF)THERMOSWITCH ASSY (EXCEPT CALF)
-
163BG-82571-00-00 PANEL, SWITCH (CALF ONLY)PANEL, SWITCH (CALF ONLY)
-
163DM-82571-00-00 PANEL, SWITCH (EXCEPT CALF)PANEL, SWITCH (EXCEPT CALF)
-
174LR-83371-00-00 HORNHORN
-
1895817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1911H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2095707-05500-00 NUT, FLANGENUT, FLANGE
