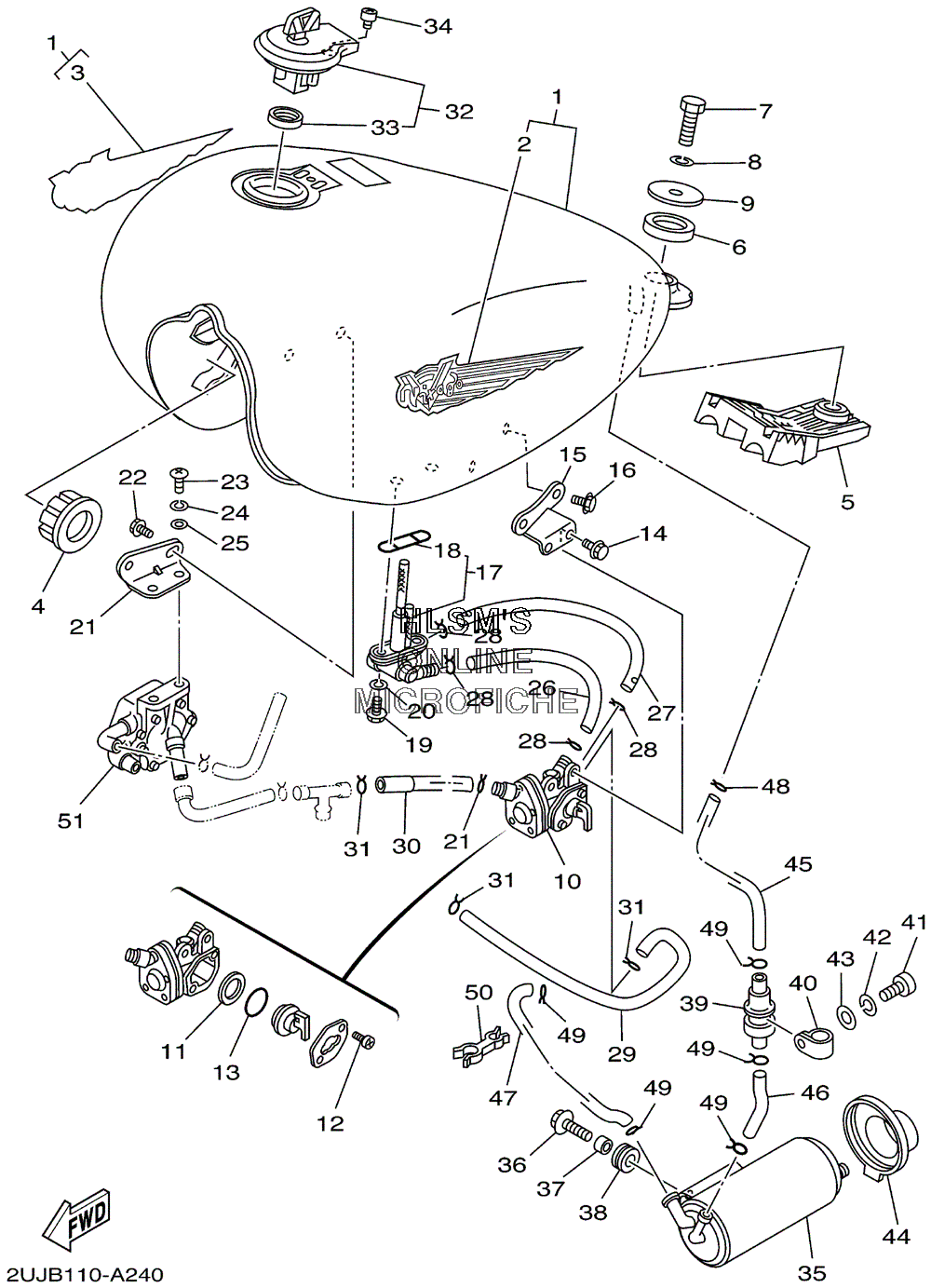

FUEL TANK для Yamaha XV 250 VIRAGO - 2002 года выпуска
-
№АртикулНазвание
-
13BG-24110-00-X1 FUEL TANK COMP. (BLACK (BL2)) (CALF ONLY)FUEL TANK COMP. (BLACK (BL2)) (CALF ONLY)
-
13LS-Y2410-02-03 FUEL TANK COMP. (BLACK (BL2)) (EXCEPT CALF)FUEL TANK COMP. (BLACK (BL2)) (EXCEPT CALF)
-
23LW-24161-00-00 ...EMBLEM 1...EMBLEM 1
-
33LW-24162-00-00 ...EMBLEM 2...EMBLEM 2
-
44H7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
52UJ-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
642X-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
797017-08035-00 BOLTBOLT
-
892907-08100-00 WASHER, SPRINGWASHER, SPRING
-
990201-08569-00 WASHER, PLATEWASHER, PLATE
-
102UJ-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
113H3-24523-00-00 ...VALVE...VALVE
-
1298580-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
131JK-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
1495024-06010-00 BOLT, FLANGEBOLT, FLANGE
-
152UJ-24544-01-00 BRACKET, FUEL COCKBRACKET, FUEL COCK
-
1695024-06010-00 BOLT, FLANGEBOLT, FLANGE
-
172UJ-24560-00-00 FILTER ASSYFILTER ASSY
-
184X8-24512-00-00 ...O-RING...O-RING
-
1990149-06011-00 SCREWSCREW
-
2090202-05187-00 WASHER, PLATEWASHER, PLATE
-
212UJ-24491-01-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2295024-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2398517-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2492907-06100-00 WASHER, SPRINGWASHER, SPRING
-
2592907-06600-00 WASHER, PLATEWASHER, PLATE
-
2690445-116K9-00 HOSE (L235)HOSE (L235)
-
2790445-116K9-00 HOSE (L235)HOSE (L235)
-
2890467-10008-00 CLIPCLIP
-
292UJ-24312-01-00 PIPE 2PIPE 2
-
302UJ-24313-00-00 PIPE 3PIPE 3
-
3190467-10008-00 CLIPCLIP
-
3220K-24602-04-00 CAP ASSY (CALF ONLY)CAP ASSY (CALF ONLY)
-
324X7-24602-04-00 CAP ASSY (EXCEPT CALF)CAP ASSY (EXCEPT CALF)
-
334X7-24612-00-00 ...GASKET, CAP...GASKET, CAP
-
3491317-05010-00 BOLTBOLT
-
353BG-24170-00-00 CANISTER ASSY (CALF ONLY)CANISTER ASSY (CALF ONLY)
-
3690119-06118-00 BOLT, WITH WASHER (CALF ONLY)BOLT, WITH WASHER (CALF ONLY)
-
3790387-0600V-00 COLLAR (CALF ONLY)COLLAR (CALF ONLY)
-
3890480-14329-00 GROMMET (CALF ONLY)GROMMET (CALF ONLY)
-
394WM-24180-00-00 ROLL OVER VALVE ASSY (CALF ONLY)ROLL OVER VALVE ASSY (CALF ONLY)
-
4090461-15139-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
4198517-05012-00 SCREW, PAN HEAD (CALF ONLY)SCREW, PAN HEAD (CALF ONLY)
-
4292907-05100-00 WASHER, SPRING (CALF ONLY)WASHER, SPRING (CALF ONLY)
-
4392907-05600-00 WASHER, PLATE (CALF ONLY)WASHER, PLATE (CALF ONLY)
-
442JU-2419E-00-00 COVER, CANISTER (CALF ONLY)COVER, CANISTER (CALF ONLY)
-
453BG-24321-02-00 PIPE 10 (CALF ONLY)PIPE 10 (CALF ONLY)
-
463BG-24322-01-00 PIPE 11 (CALF ONLY)PIPE 11 (CALF ONLY)
-
473BG-24323-00-00 PIPE 12 (CALF ONLY)PIPE 12 (CALF ONLY)
-
4890467-09006-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
4990467-10008-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
5090464-16119-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
513DM-13910-00-00 FUEL PUMP ASSYFUEL PUMP ASSY
