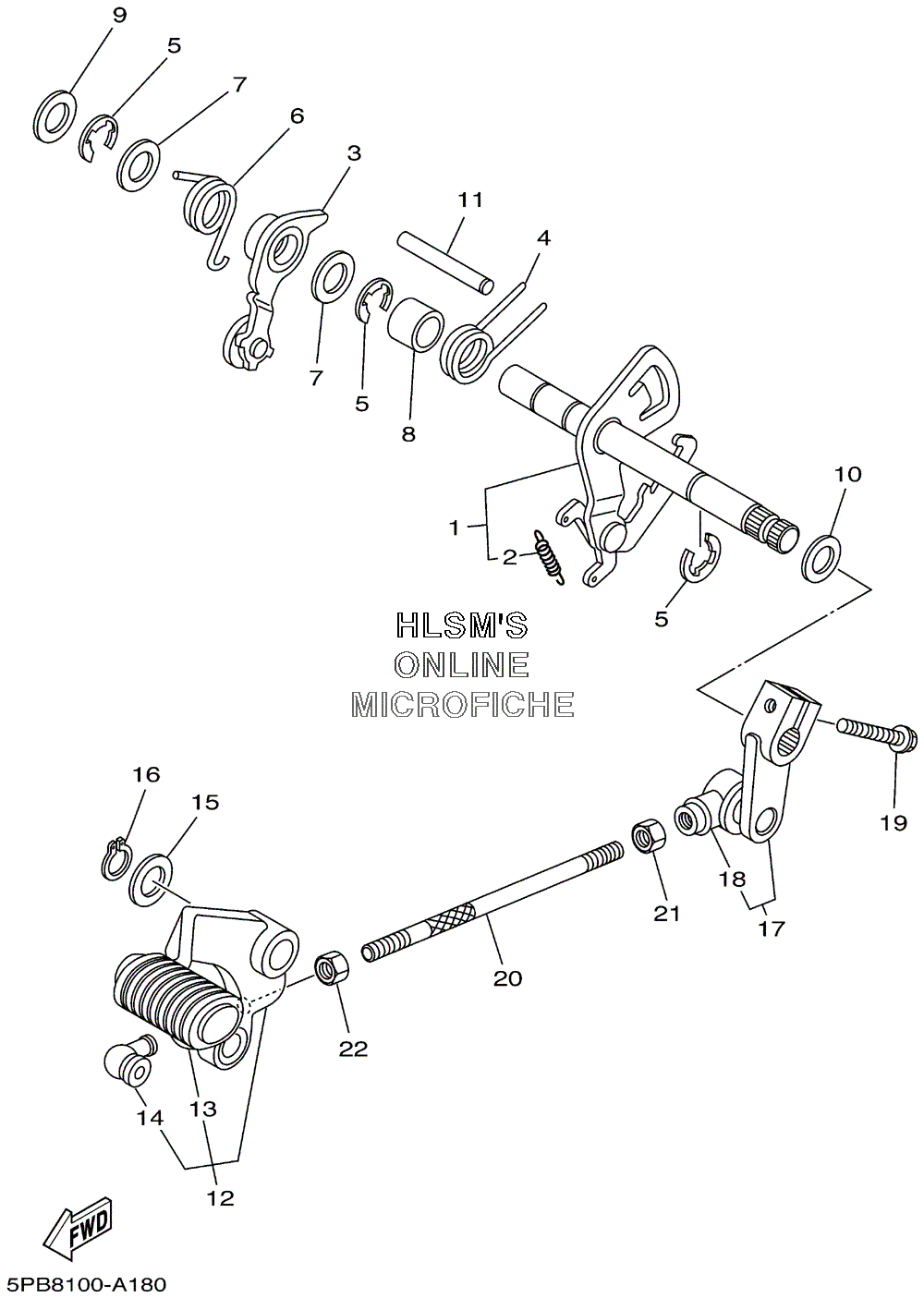

SHIFT SHAFT для Yamaha XVS 1100 V-STAR CUSTOM CALIFORNIA - 2002 года выпуска
-
№АртикулНазвание
-
15EL-18120-00-00 SHIFT LEVER ASSYSHIFT LEVER ASSY
-
290506-08227-00 ...SPRING, TENSION...SPRING, TENSION
-
35EL-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
490508-32535-00 SPRING, TORSIONSPRING, TORSION
-
599006-10600-00 CIRCLIPCIRCLIP
-
690508-29531-00 SPRING, TORSIONSPRING, TORSION
-
790201-12588-00 WASHER, PLATEWASHER, PLATE
-
890387-124F4-00 COLLARCOLLAR
-
990201-12588-00 WASHER, PLATEWASHER, PLATE
-
1090201-12166-00 WASHER, PLATEWASHER, PLATE
-
1193608-50158-00 PIN, DOWELPIN, DOWEL
-
125EL-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
1322N-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
142H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
1590201-12362-00 WASHER, PLATEWASHER, PLATE
-
1699009-12400-00 CIRCLIPCIRCLIP
-
175EL-18112-00-00 ARM, SHIFTARM, SHIFT
-
182H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
1997024-06020-00 BOLTBOLT
-
204DN-18115-20-00 ROD, SHIFTROD, SHIFT
-
2190170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
229538R-06700-00 NUTNUT
