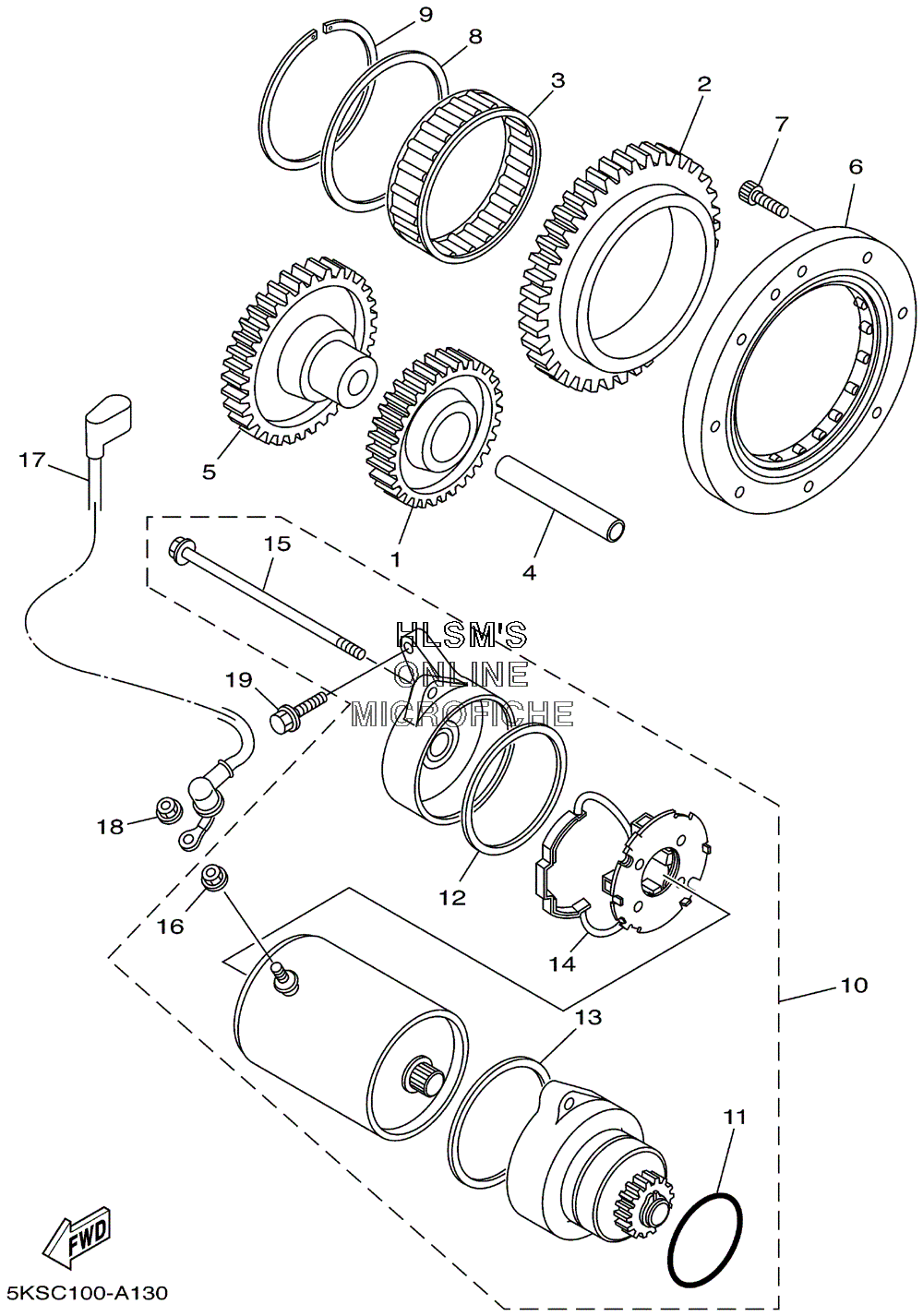

STARTER для Yamaha XVS 1100 V-STAR CUSTOM CALIFORNIA - 2002 года выпуска
-
№АртикулНазвание
-
15EL-15515-00-00 GEAR 3GEAR 3
-
25EL-15517-11-00 GEAR, IDLER 2GEAR, IDLER 2
-
393310-5720G-00 BEARINGBEARING
-
424W-15521-00-00 SHAFT 1SHAFT 1
-
55EL-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
65EL-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
791317-06016-00 BOLTBOLT
-
890201-72008-00 WASHER, PLATEWASHER, PLATE
-
993440-68180-00 CIRCLIPCIRCLIP
-
105EL-81890-00-00 MOTOR ASSYMOTOR ASSY
-
111J7-81847-60-00 ...O-RING...O-RING
-
1211H-81844-00-00 ...GASKET...GASKET
-
134G0-81844-00-00 ...GASKET...GASKET
-
145A8-81840-10-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
153KM-81826-00-00 ...BOLT...BOLT
-
164XV-8182A-00-00 ...NUT...NUT
-
175EL-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
184XV-8182A-00-00 NUTNUT
-
1995814-06025-00 BOLT, FLANGEBOLT, FLANGE
