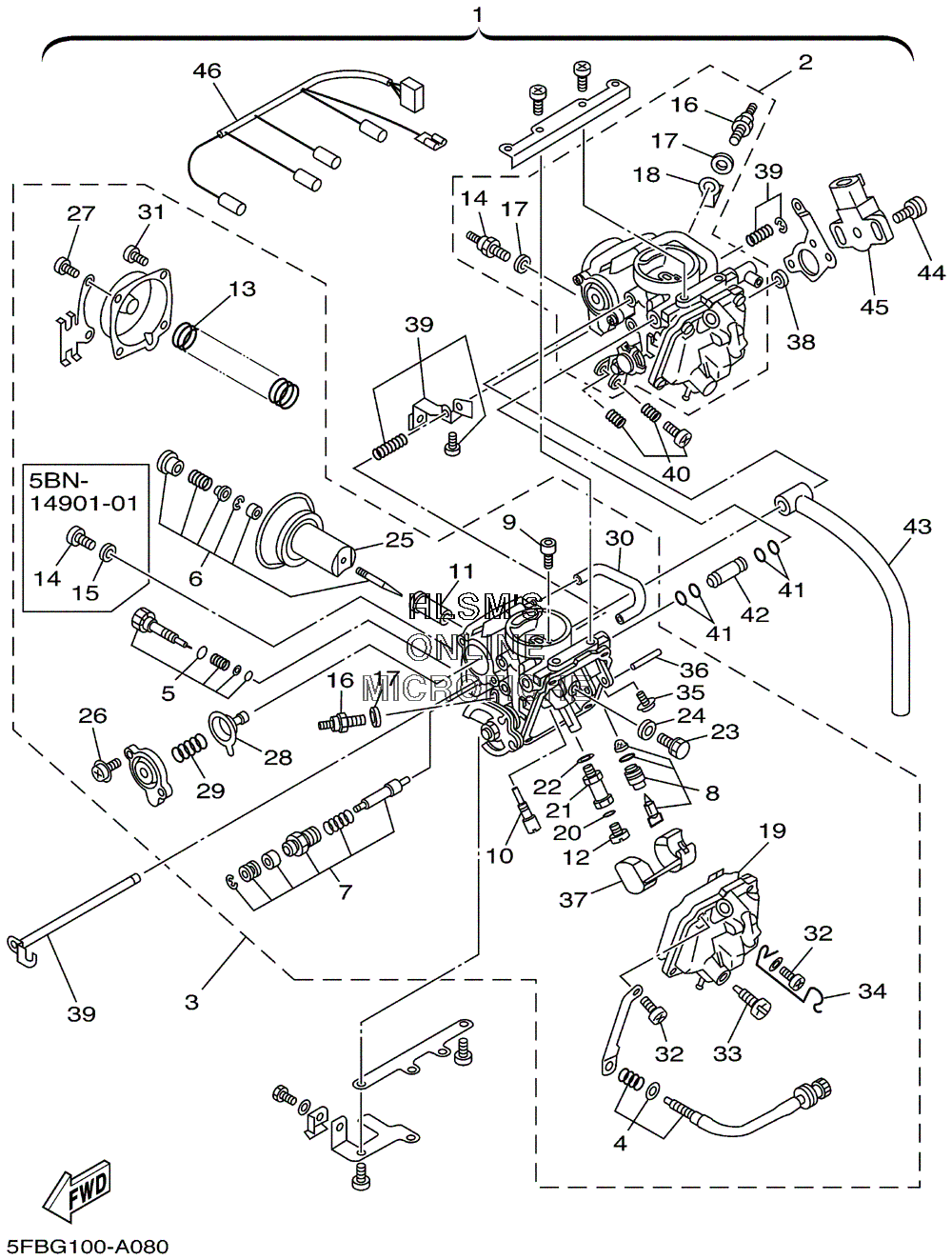

CARBURETOR для Yamaha XVS 650 V-STAR CUSTOM - 2002 года выпуска

№

Артикул

Название
1

5BN-14900-01-00 CARBURETOR ASSY (EXCEPT CALF)

CARBURETOR ASSY (EXCEPT CALF)

0 ₽
1

5BN-14900-11-00 CARBURETOR ASSY (CALF ONLY)

CARBURETOR ASSY (CALF ONLY)

0 ₽
2

5BN-14901-01-00 ...CARBURETOR ASSY 1 - REAR (EXCEPT CALF)

...CARBURETOR ASSY 1 - REAR (EXCEPT CALF)

0 ₽
2

5BN-14901-11-00 ...CARBURETOR ASSY 1 - REAR (CALF ONLY)

...CARBURETOR ASSY 1 - REAR (CALF ONLY)

0 ₽
3

5BN-14902-01-00 ...CARBURETOR ASSY 2 - FRONT (EXCEPT CALF)

...CARBURETOR ASSY 2 - FRONT (EXCEPT CALF)

0 ₽
3

5BN-14902-11-00 ...CARBURETOR ASSY 2 - FRONT (CALF ONLY)

...CARBURETOR ASSY 2 - FRONT (CALF ONLY)

0 ₽
4

4TR-14103-00-00 ......THROTTLE SCREW SET - CARB ASSY 2

......THROTTLE SCREW SET - CARB ASSY 2

6 450 ₽
5

4LA-14105-00-00 ......PILOT SCREW SET

......PILOT SCREW SET

1 880 ₽
6

5BN-1490J-00-00 ......NEEDLE SET

......NEEDLE SET

0 ₽
7

4DN-1410A-01-00 ......STARTER SET

......STARTER SET

5 030 ₽
8

3CF-14107-10-00 ......NEEDLE VALVE SET

......NEEDLE VALVE SET

4 400 ₽
9

1HX-14231-20-00 ......JET,PILOT AIR(100)

......JET,PILOT AIR(100)

1 260 ₽
10

4KM-14142-20-00 ......JET, PILOT ( 20)

......JET, PILOT ( 20)

1 130 ₽
11

5BN-14141-34-00 ......NOZZLE, MAIN

......NOZZLE, MAIN

5 660 ₽
12

3G2-14231-18-00 ......JET, MAIN ( 90)

......JET, MAIN ( 90)

1 040 ₽
13

4VR-14933-00-00 ......SPRING, DIAPHRAGM

......SPRING, DIAPHRAGM

1 000 ₽
14

3DM-14216-00-00 ......SCREW - CARB ASSY 2 (EXCEPT CALF)

......SCREW - CARB ASSY 2 (EXCEPT CALF)

400 ₽
14

5FU-83790-00-00 ......HEATER ASSY - CARB ASSY 1

......HEATER ASSY - CARB ASSY 1

3 770 ₽
15

127-14198-00-00 ......GASKET - CARB ASSY 2 (EXCEPT CALF)

......GASKET - CARB ASSY 2 (EXCEPT CALF)

400 ₽
16

5FU-83790-10-00 ......HEATER ASSY

......HEATER ASSY

4 400 ₽
17

90201-08016-00 ......WASHER, PLATE - CARB ASSY 2

......WASHER, PLATE - CARB ASSY 2

430 ₽
17

90201-08016-00 ......WASHER, PLATE - CARB ASSY 1

......WASHER, PLATE - CARB ASSY 1

430 ₽
18

4DH-82103-00-00 ......TERMINAL 1 - CARB ASSY 1

......TERMINAL 1 - CARB ASSY 1

970 ₽
19

1HX-14147-00-00 ......O-RING

......O-RING

1 730 ₽
20

1AE-14227-00-00 ......O-RING

......O-RING

440 ₽
21

1AE-14261-00-00 ......HOLDER

......HOLDER

1 200 ₽
22

1AE-14237-00-00 ......GASKET

......GASKET

280 ₽
23

1HX-14565-00-00 ......SCREW

......SCREW

1 190 ₽
24

137-14153-00-00 ......WASHER, MAIN JET

......WASHER, MAIN JET

310 ₽
25

4TR-14940-00-00 ......DIAPHRAGM ASSY

......DIAPHRAGM ASSY

16 220 ₽
26

1UY-14565-00-00 ......SCREW

......SCREW

180 ₽
27

3KW-14486-00-00 ......SCREW, ROD - CARB ASSY 2

......SCREW, ROD - CARB ASSY 2

280 ₽
28

22V-14940-00-00 ......DIAPHRAGM ASSY

......DIAPHRAGM ASSY

2 670 ₽
29

26H-14275-00-00 ......SPRING

......SPRING

400 ₽
30

4TR-14348-00-00 ......PIPE 1

......PIPE 1

3 300 ₽
31

98507-04008-00 ......SCREW, PAN HEAD - CARB ASSY 2

......SCREW, PAN HEAD - CARB ASSY 2

160 ₽
31

98507-04008-00 ......SCREW, PAN HEAD - CARB ASSY 1

......SCREW, PAN HEAD - CARB ASSY 1

160 ₽
32

98507-04014-00 ......SCREW, PAN HEAD

......SCREW, PAN HEAD

150 ₽
33

12R-14191-00-00 ......PLUG, DRAIN

......PLUG, DRAIN

880 ₽
34

4TR-14937-00-00 ......CLIP

......CLIP

1 730 ₽
35

1FN-14565-00-00 ......SCREW

......SCREW

340 ₽
36

353-14186-00-00 ......PIN, FLOAT

......PIN, FLOAT

340 ₽
37

1HX-14985-00-00 ......FLOAT

......FLOAT

5 030 ₽
38

4HM-14239-00-00 ...SEAL

...SEAL

1 040 ₽
39

4TR-1490L-00-00 ...STARTER LEVER SET, 1

...STARTER LEVER SET, 1

6 920 ₽
40

3KW-1490K-00-00 ...STOP SCREW SET

...STOP SCREW SET

1 440 ₽
41

36Y-14147-00-00 ...O-RING

...O-RING

720 ₽
42

1WG-14251-00-00 ...NIPPLE

...NIPPLE

1 730 ₽
43

4TR-14987-00-00 ...HOSE

...HOSE

4 250 ₽
44

4KM-24453-00-00 ...SCREW

...SCREW

480 ₽
45

4NK-85885-00-00 ...THROTTLE POSITION SENSOR ASSY

...THROTTLE POSITION SENSOR ASSY

25 190 ₽
46

5BN-81517-00-00 ...WIRE, SUB LEAD

...WIRE, SUB LEAD

0 ₽
