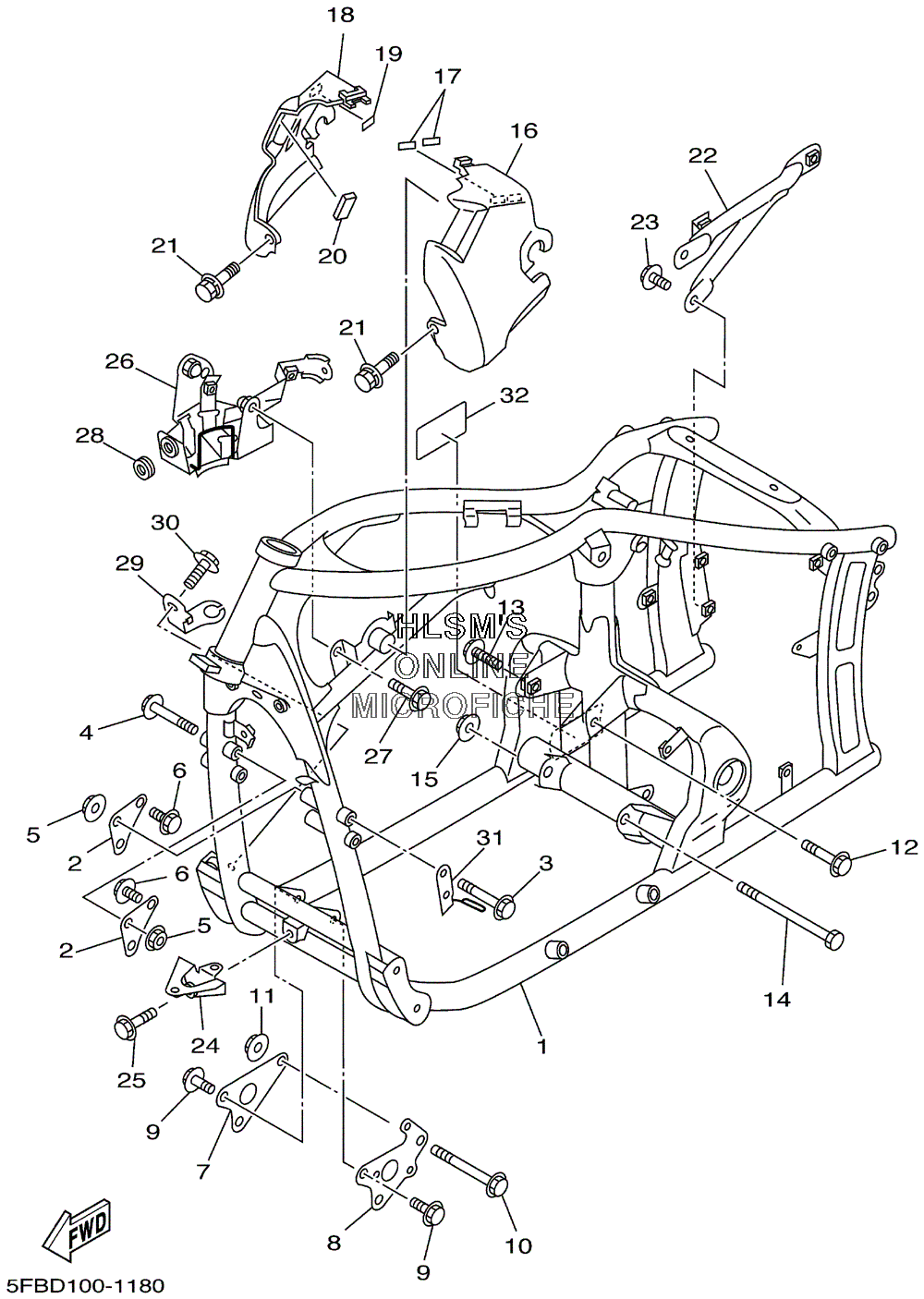

FRAME для Yamaha XVS 650 V-STAR CUSTOM - 2002 года выпуска
-
№АртикулНазвание
-
14VR-21110-20-00 FRAME COMP. (EXCEPT CALF)FRAME COMP. (EXCEPT CALF)
-
15BN-21110-10-00 FRAME COMP. (CALF ONLY)FRAME COMP. (CALF ONLY)
-
24VR-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
390105-082A4-00 BOLT, FLANGEBOLT, FLANGE
-
490105-084A1-00 BOLT, FLANGEBOLT, FLANGE
-
590179-08684-00 NUTNUT
-
695817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
74VR-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
85BN-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
990105-08307-00 BOLT, FLANGEBOLT, FLANGE
-
1095814-10100-00 BOLT, FLANGEBOLT, FLANGE
-
1190179-10658-00 NUTNUT
-
1290105-10253-00 BOLT, FLANGEBOLT, FLANGE
-
1390105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
1490101-12694-00 BOLTBOLT
-
1590179-12248-00 NUTNUT
-
164TR-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
173BN-21747-00-00 DAMPERDAMPER
-
184TR-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
193BN-21747-00-00 DAMPERDAMPER
-
204SV-28372-00-00 DAMPERDAMPER
-
2190119-06236-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
224TR-21460-01-00 STAY, MUFFLERSTAY, MUFFLER
-
2395817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
244VR-28356-01-00 STAY 1STAY 1
-
2590105-062A2-00 BOLT, FLANGEBOLT, FLANGE
-
264TR-24491-02-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2795807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2890480-12320-00 GROMMETGROMMET
-
295KP-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3095807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
314VR-21161-00-00 HOLDER, CABLEHOLDER, CABLE
-
325FB-2179R-10-00 PLATE, EPA 2 (CALF ONLY)PLATE, EPA 2 (CALF ONLY)
-
325FB-2179V-10-00 PLATE, EPA 1 (EXCEPT CALF)PLATE, EPA 1 (EXCEPT CALF)
