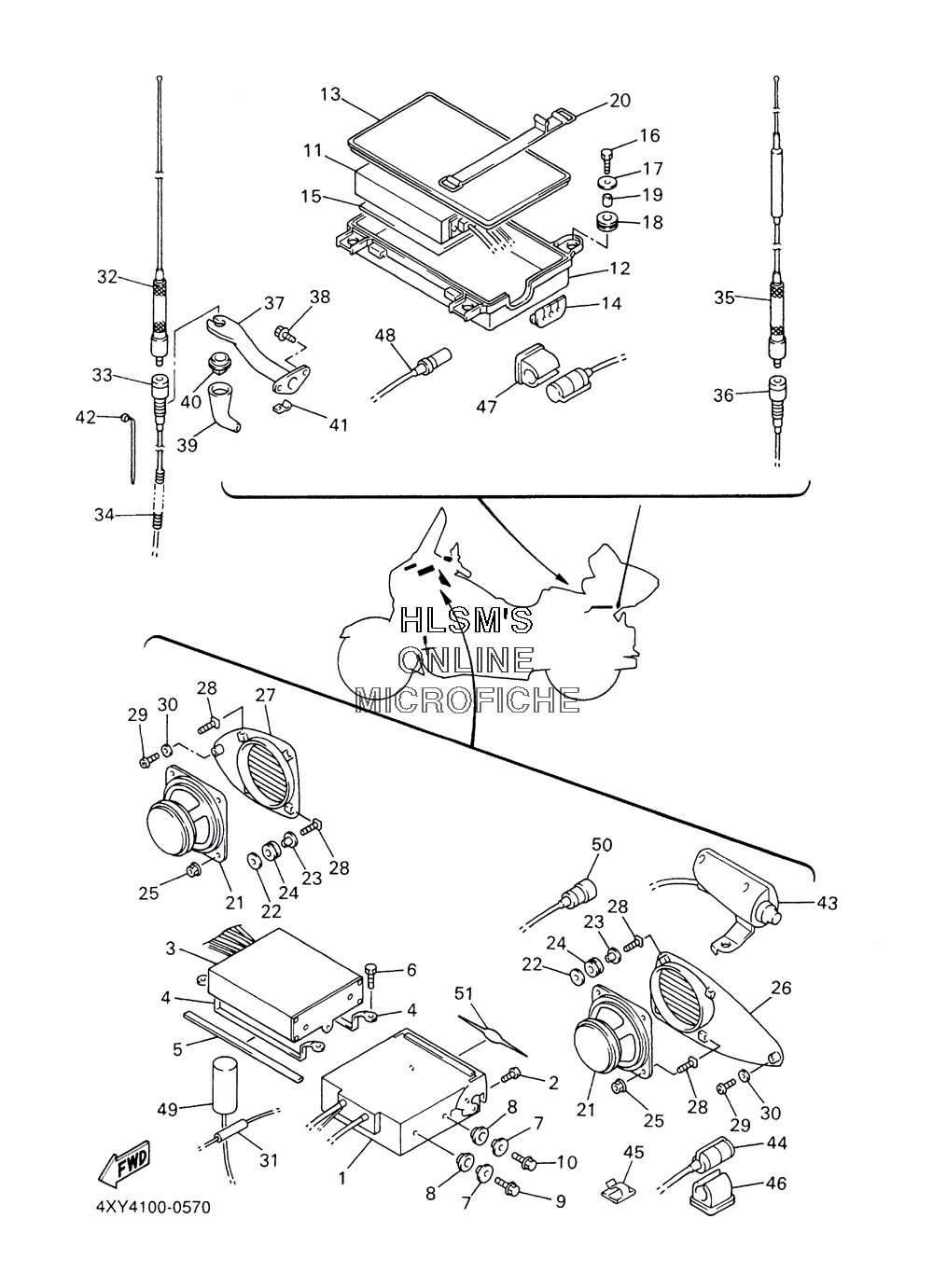

AUDIO EQUIPMENT для Yamaha XVZ 1300 TF ROYAL STAR VENTURE - 2002 года выпуска
-
№АртикулНазвание
-
14XY-88150-00-P5 CASSETTE DECK ASSY (YELLOWISH SILVER (YS2))CASSETTE DECK ASSY (YELLOWISH SILVER (YS2))
-
298517-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
34XY-88132-00-00 AMP. POWERAMP. POWER
-
44XY-88114-00-00 BRACKET, RADIOBRACKET, RADIO
-
54XY-88149-00-00 DAMPERDAMPER
-
697027-05010-00 BOLTBOLT
-
790387-06024-00 COLLARCOLLAR
-
890480-14429-00 GROMMETGROMMET
-
995027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1095027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
114XY-88182-00-00 BLACK BOX, CBBLACK BOX, CB
-
124XY-8818B-00-00 COVER 1COVER 1
-
134XY-8818C-00-00 COVER 2COVER 2
-
144XY-8818E-00-00 GASKET, CBGASKET, CB
-
154XY-8818D-00-00 SEAT 1SEAT 1
-
1697017-06025-00 BOLT, HEXBOLT, HEX
-
1790201-065F3-00 WASHER, PLATEWASHER, PLATE
-
1890480-14450-00 GROMMETGROMMET
-
1990387-0714B-00 COLLARCOLLAR
-
204J2-82131-01-00 BAND, BATTERYBAND, BATTERY
-
214XY-88161-00-00 SPEAKER 1SPEAKER 1
-
2290201-061A5-00 WASHER, PLATEWASHER, PLATE
-
2390387-068J7-00 COLLARCOLLAR
-
2490480-13163-00 GROMMETGROMMET
-
2595707-05500-00 NUT, FLANGENUT, FLANGE
-
264XY-88163-00-P5 GRILLE, SPEAKER 1 (YELLOWISH SILVER (YS2))GRILLE, SPEAKER 1 (YELLOWISH SILVER (YS2))
-
274XY-88173-00-P5 GRILLE, SPEAKER 2 (YELLOWISH SILVER (YS2))GRILLE, SPEAKER 2 (YELLOWISH SILVER (YS2))
-
284XY-28333-00-00 BOLTBOLT
-
2990167-05016-00 SCREW, TAPPINGSCREW, TAPPING
-
3092907-04600-00 WASHERWASHER
-
314XY-88188-00-00 FILTER, NOISEFILTER, NOISE
-
324XY-88141-10-00 POLE, ANTENNA (AM/FM)POLE, ANTENNA (AM/FM)
-
334XY-88146-10-00 CABLE 1CABLE 1
-
344XY-82139-00-00 TUBETUBE
-
354XY-88143-10-00 POLE, ANTENNA (CB)POLE, ANTENNA (CB)
-
364XY-88147-10-00 CORD 2CORD 2
-
374XY-88144-00-00 BRACKET, ANTENNABRACKET, ANTENNA
-
3895027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
394XY-88145-00-00 COVERCOVER
-
404XY-8814A-00-00 SPACERSPACER
-
4190464-05188-00 CLAMPCLAMP
-
4290464-13073-00 CLAMPCLAMP
-
434XY-88168-00-00 REMOTE CONTROL 1REMOTE CONTROL 1
-
444XY-88196-00-00 CORD, HEAD SET 1CORD, HEAD SET 1
-
4590464-07002-00 CLAMPCLAMP
-
464XY-88195-01-00 HOLDER, CONNECTORHOLDER, CONNECTOR
-
474XY-88195-01-00 HOLDER, CONNECTORHOLDER, CONNECTOR
-
484XY-88186-01-00 CORD, CBCORD, CB
-
491NL-81965-01-00 CONDENSER, SMOOTHINGCONDENSER, SMOOTHING
-
504XY-88192-01-00 CORD, EXTENSIONCORD, EXTENSION
