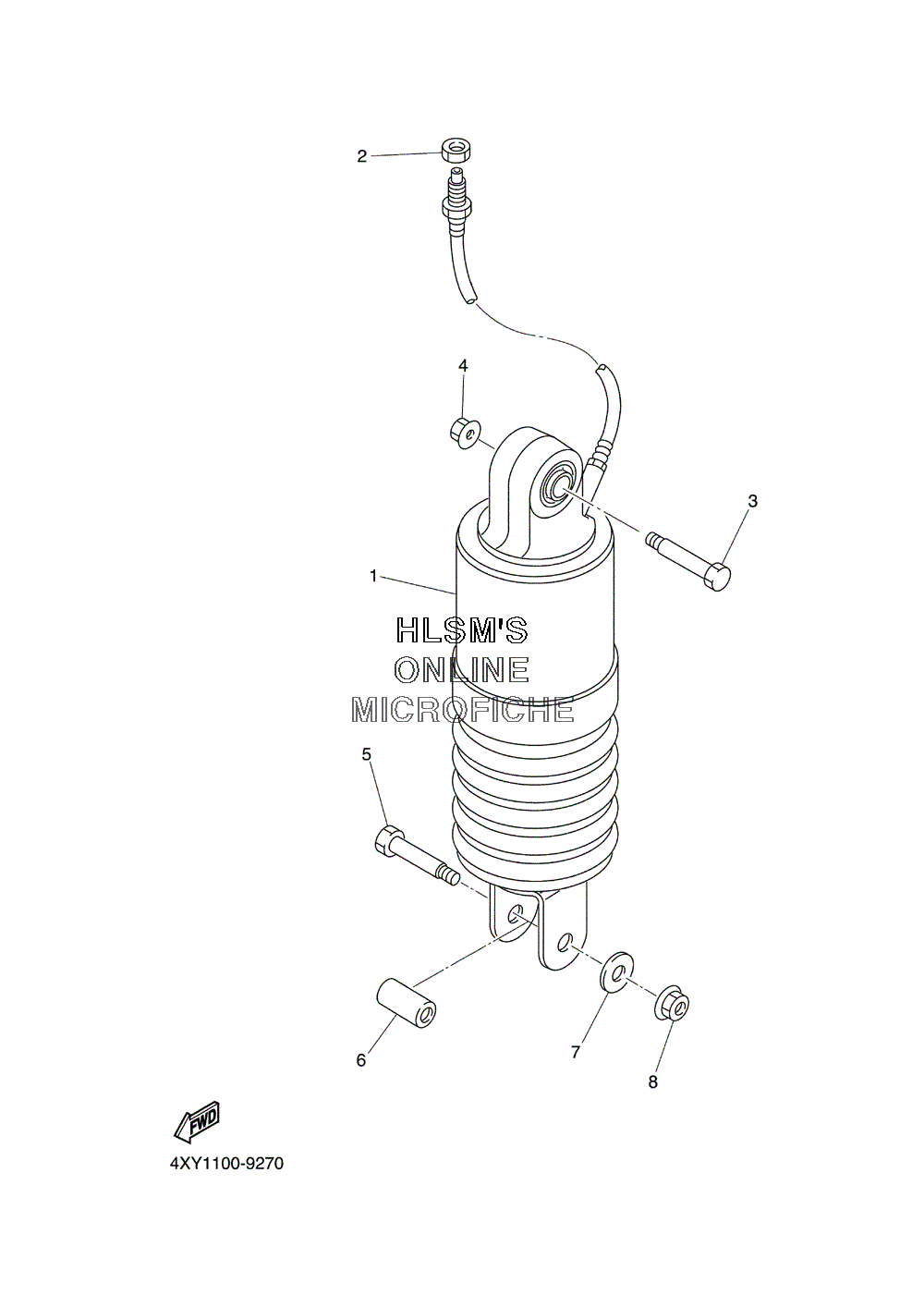

SUSPENSION - REAR SHOCK ABSORBER для Yamaha XVZ 1300 TF ROYAL STAR VENTURE - 2002 года выпуска
-
№АртикулНазвание
-
14XY-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
295307-14700-00 NUTNUT
-
390101-12498-00 BOLTBOLT
-
495607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590101-12498-00 BOLTBOLT
-
690387-126W4-00 COLLARCOLLAR
-
790201-126A7-00 WASHER, PLATEWASHER, PLATE
-
895607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
