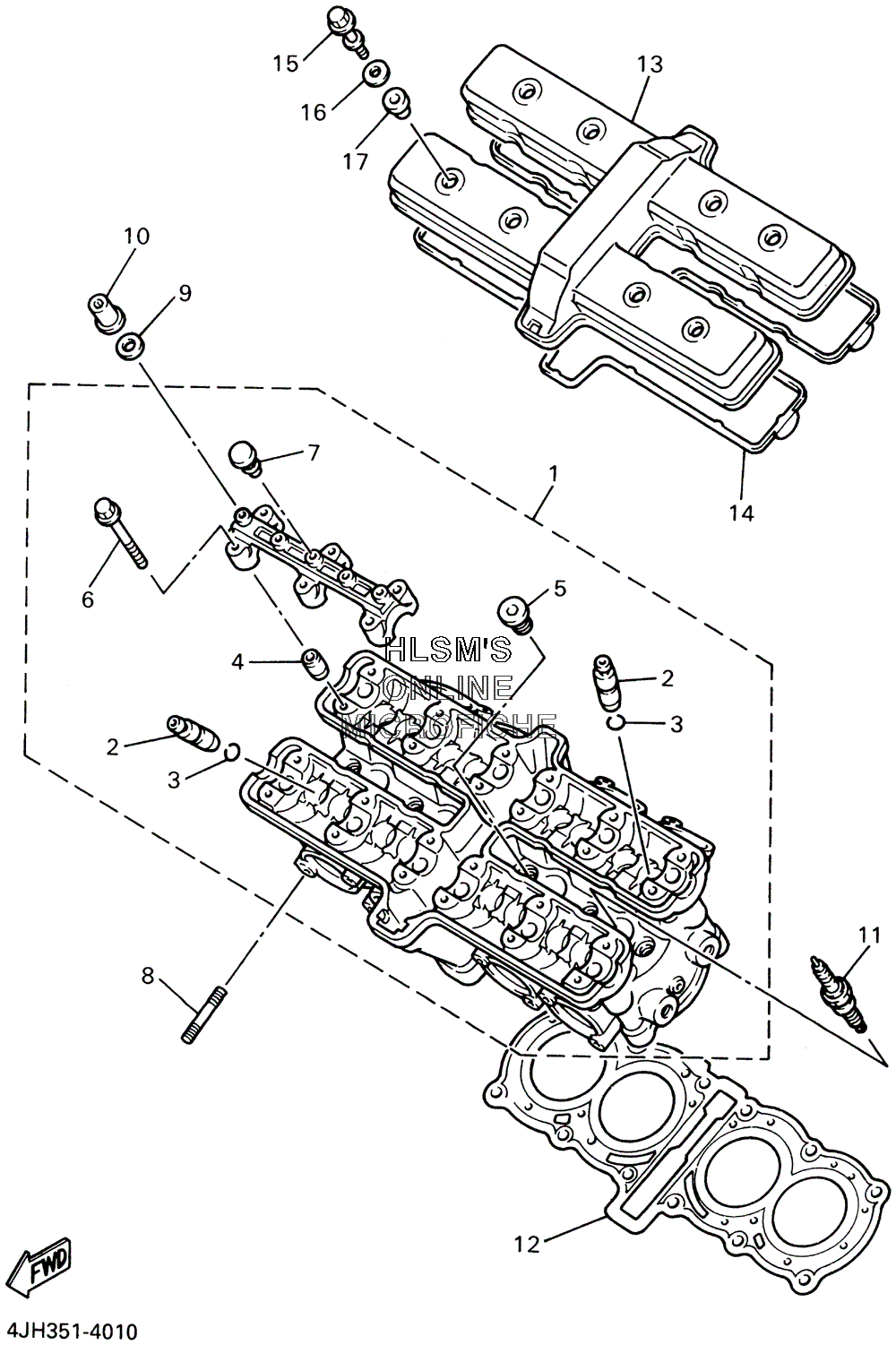

CYLINDER HEAD для Yamaha YZF 600 R - 2002 года выпуска
-
№АртикулНазвание
-
14JH-11101-02-00 CYLINDER HEAD ASSY (EXCEPT CALIF)CYLINDER HEAD ASSY (EXCEPT CALIF)
-
14MM-11101-02-00 CYLINDER HEAD ASSY (CALIF ONLY)CYLINDER HEAD ASSY (CALIF ONLY)
-
23TJ-11133-10-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
393440-07149-00 ...CIRCLIP...CIRCLIP
-
491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
590340-12112-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
695027-060350-00 ...BOLT, FLANGE...BOLT, FLANGE
-
790338-08174-00 ...PLUG...PLUG
-
890116-06466-00 BOLT, STUDBOLT, STUD
-
990201-090P4-00 WASHER, PLATEWASHER, PLATE
-
1090179-09612-00 NUTNUT
-
11NGK-CR9E0-00-00 PLUG, SPARK (NGK R CR9E) (OPT)PLUG, SPARK (NGK R CR9E) (OPT)
-
124JH-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
133TJ-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
144TV-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1590109-064F0-00 BOLTBOLT
-
1690209-11262-00 WASHERWASHER
-
172GH-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
