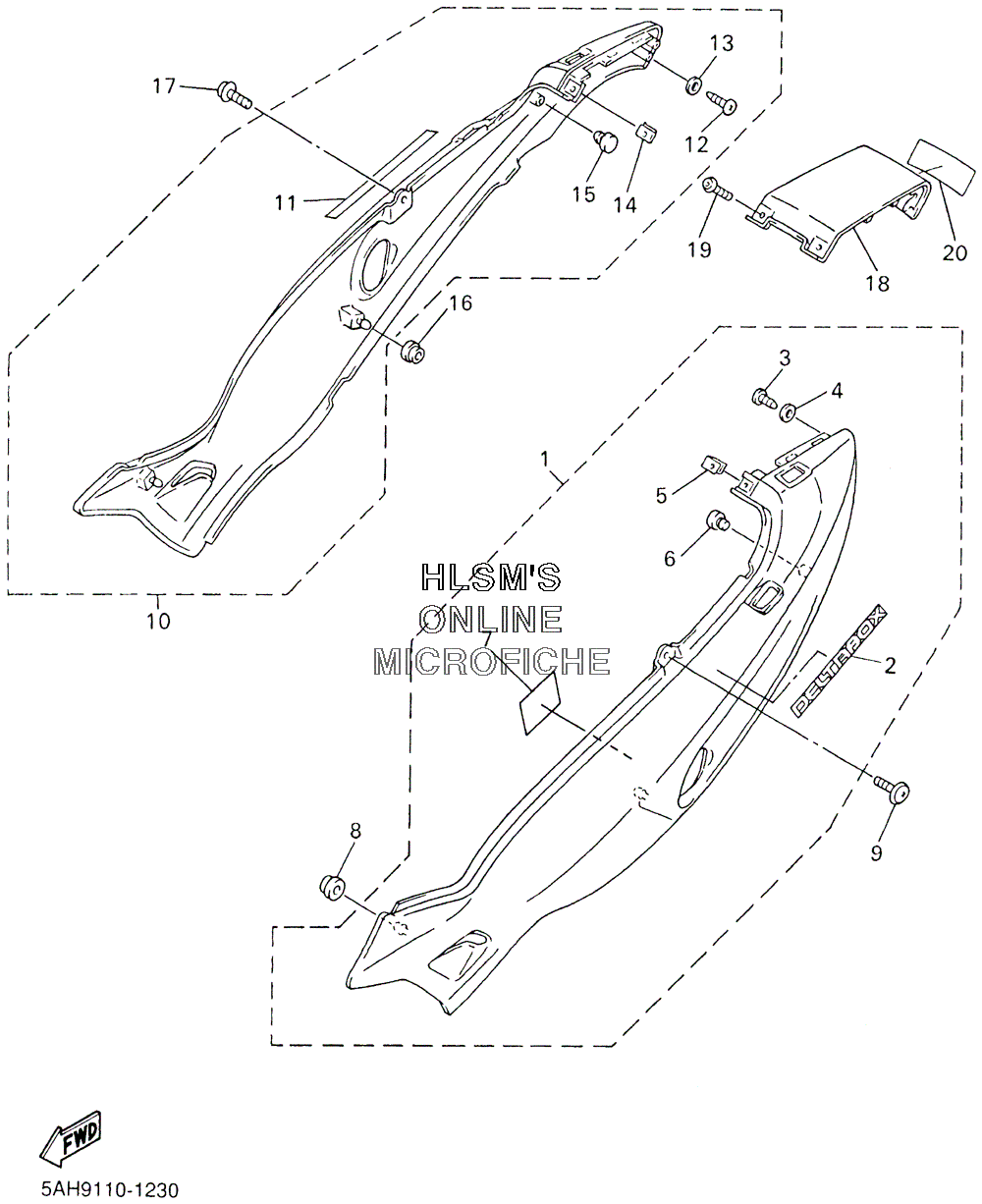

SIDE COVER для Yamaha YZF 600 R - 2002 года выпуска
-
№АртикулНазвание
-
14TV-Y2171-0V-P4 COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC (DPBMC)) (EXCEPT CALIF)COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC (DPBMC)) (EXCEPT CALIF)
-
14TV-Y2171-0W-P4 COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC (DPBMC)) (CALIF ONLY)COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC (DPBMC)) (CALIF ONLY)
-
14TV-Y2171-1A-4B COVER, SIDE 1 (BLACK (BL2)) (EXCEPT CALIF)COVER, SIDE 1 (BLACK (BL2)) (EXCEPT CALIF)
-
14TV-Y2171-1B-4B COVER, SIDE 1 (BLACK (BL2)) (CALIF ONLY)COVER, SIDE 1 (BLACK (BL2)) (CALIF ONLY)
-
24SV-28328-40-00 ...EMBLEM (FOR BLACK (BL2))...EMBLEM (FOR BLACK (BL2))
-
24SV-28328-60-00 ...EMBLEM (FOR DEEP PURPLISH BLUE METALLIC (DPBMC))...EMBLEM (FOR DEEP PURPLISH BLUE METALLIC (DPBMC))
-
397707-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
490201-043H7-00 ...WASHER, PLATE...WASHER, PLATE
-
590183-05024-00 ...NUT, SPRING...NUT, SPRING
-
690338-10132-00 ...PLUG...PLUG
-
75AH-2179V-50-00 ...PLATE, EPA 1(NON CALIFORNIA)...PLATE, EPA 1(NON CALIFORNIA)
-
75AH-2179R-50-00 ...PLATE, EPA 2(CALIFORNIA)...PLATE, EPA 2(CALIFORNIA)
-
890480-13567-00 GROMMETGROMMET
-
998507-06016-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
104TV-Y2172-K1-P4 COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC (DPBMC))COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC (DPBMC))
-
104TV-Y2172-L1-4B COVER, SIDE 2 (BLACK (BL2))COVER, SIDE 2 (BLACK (BL2))
-
114SV-28328-40-00 ...EMBLEM (FOR BLACK (BL2))...EMBLEM (FOR BLACK (BL2))
-
114SV-28328-60-00 ...EMBLEM (FOR DEEP PURPLISH BLUE METALLIC (DPBMC))...EMBLEM (FOR DEEP PURPLISH BLUE METALLIC (DPBMC))
-
1297707-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1390201-043H7-00 ...WASHER, PLATE...WASHER, PLATE
-
1490183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1590338-10132-00 ...PLUG...PLUG
-
1690480-13567-00 GROMMETGROMMET
-
1798507-06016-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
184TV-21651-00-P2 COVER, REAR FENDER (DEEP PURPLISH BLUE METALLIC (DPBMC))COVER, REAR FENDER (DEEP PURPLISH BLUE METALLIC (DPBMC))
-
184TV-21651-00-4B COVER, REAR FENDER (BLACK (BL2))COVER, REAR FENDER (BLACK (BL2))
-
1990154-05059-00 SCREW, BINDINGSCREW, BINDING
-
2099246-00080-00 EMBLEM, YAMAHA (FOR BLACK (BL2))EMBLEM, YAMAHA (FOR BLACK (BL2))
-
2099241-00080-00 EMBLEM, YAMAHA (FOR DEEP PURPLISH BLUE METALLIC (DPBMC))EMBLEM, YAMAHA (FOR DEEP PURPLISH BLUE METALLIC (DPBMC))
