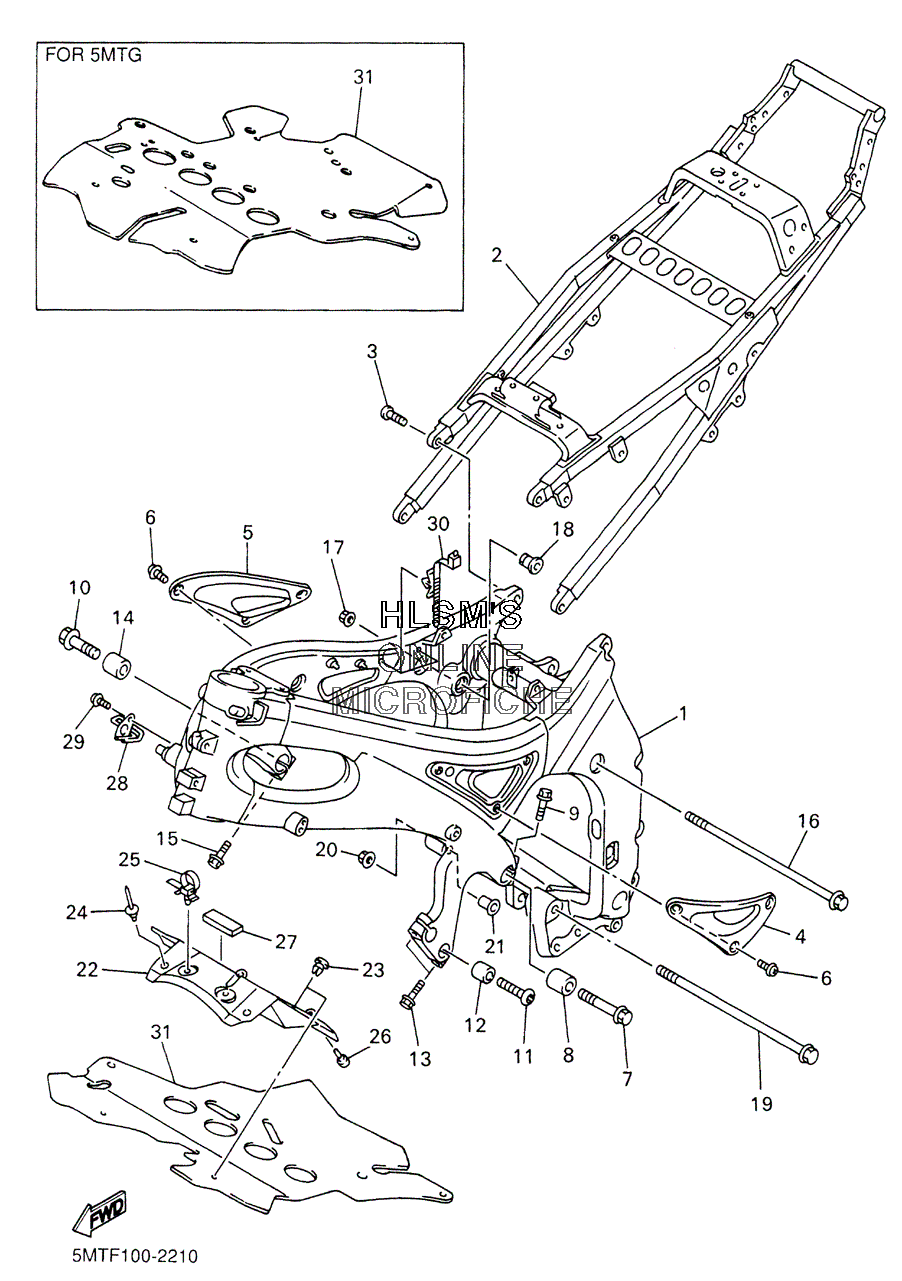

FRAME для Yamaha YZF-R6 - 2002 года выпуска
-
№АртикулНазвание
-
15EB-21110-01-00 FRAME COMP.FRAME COMP.
-
25EB-21190-01-00 REAR FRAME COMP.REAR FRAME COMP.
-
390111-10018-00 BOLTBOLT
-
45EB-2117V-00-00 COVER 7COVER 7
-
55EB-2117W-00-00 COVER 8COVER 8
-
690154-05059-00 SCREW, BINDINGSCREW, BINDING
-
795027-12060-00 BOLT, FLANGEBOLT, FLANGE
-
890387-1414W-00 COLLARCOLLAR
-
995027-08035-00 BOLT, FLANGEBOLT, FLANGE
-
1090105-12004-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1192017-10040-00 SCREWSCREW
-
1290387-1214V-00 COLLARCOLLAR
-
1395027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1490387-1312P-00 COLLARCOLLAR
-
1595027-08035-00 BOLT, FLANGEBOLT, FLANGE
-
1690105-10042-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1790179-10696-00 NUTNUT
-
185EB-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1990105-106A2-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2090179-10696-00 NUTNUT
-
215EB-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
225EB-2117M-00-00 COVER 2 (EXCEPT CALF)COVER 2 (EXCEPT CALF)
-
225EB-2117M-10-00 COVER 2 (CALF ONLY)COVER 2 (CALF ONLY)
-
2390269-07076-00 RIVETRIVET
-
2490269-07077-00 RIVETRIVET
-
2590464-12036-00 CLAMPCLAMP
-
2636Y-21639-00-00 DAMPER 2DAMPER 2
-
273KJ-15337-00-00 DAMPER 4DAMPER 4
-
285EB-26132-00-00 GUIDE, CABLE 2GUIDE, CABLE 2
-
2998517-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3090464-20213-00 CLAMPCLAMP
-
315EB-12682-01-00 PROTECTOR, HEAT (EXCEPT CALF)PROTECTOR, HEAT (EXCEPT CALF)
-
315GV-12682-00-00 PROTECTOR, HEAT (CALF ONLY)PROTECTOR, HEAT (CALF ONLY)
