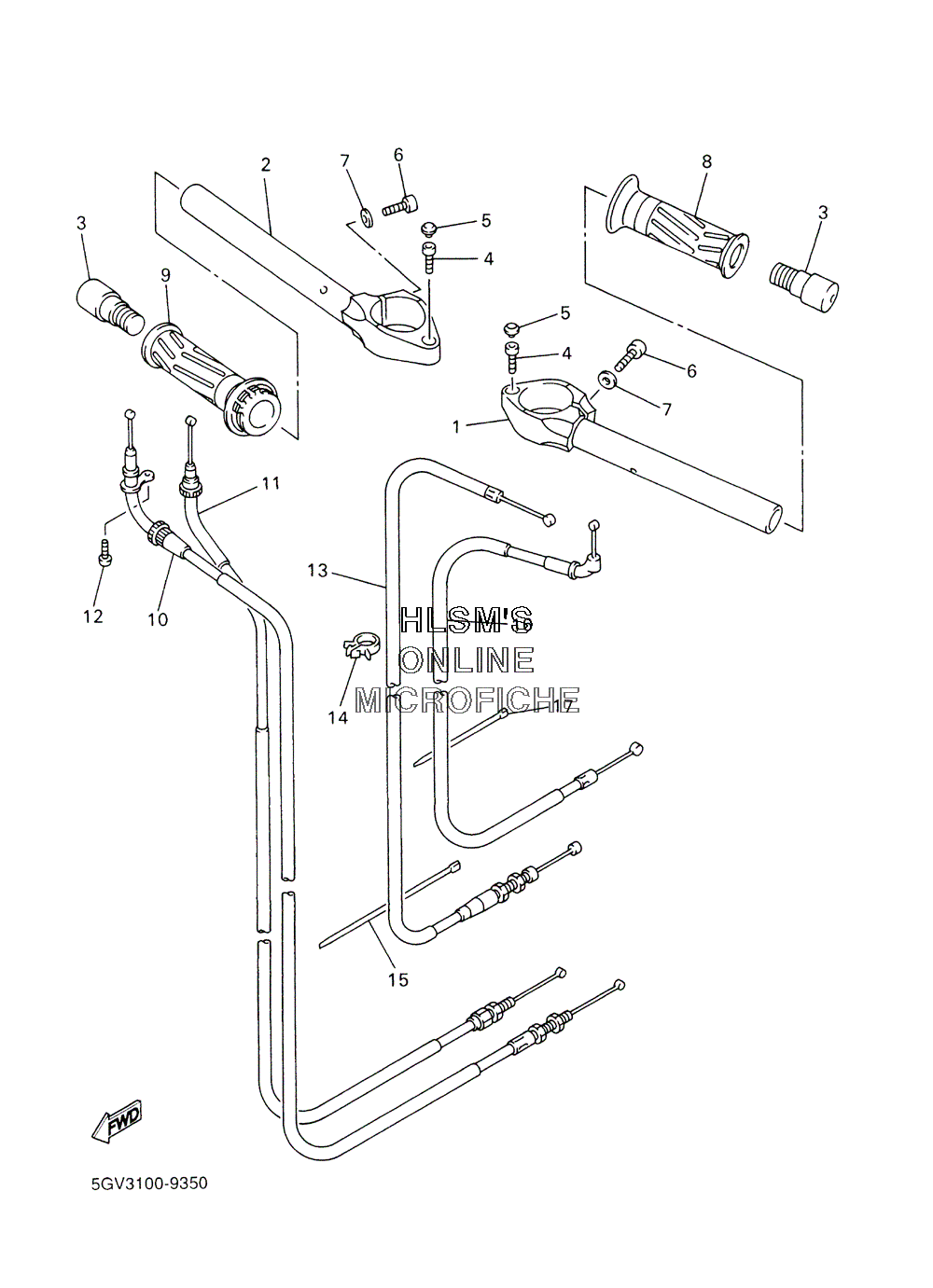

HANDLEBAR W/ CABLES для Yamaha YZF-R6 - 2002 года выпуска
-
№АртикулНазвание
-
15MT-26121-00-00 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
25MT-26122-00-00 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
35EB-26246-00-00 END, GRIPEND, GRIP
-
491317-06020-00 BOLTBOLT
-
52H9-23469-00-00 CAP, BOLTCAP, BOLT
-
691314-08030-00 BOLTBOLT
-
790201-086J0-00 WASHER, PLATEWASHER, PLATE
-
84YR-26241-01-00 GRIPGRIP
-
95EB-26240-00-00 GRIP ASSYGRIP ASSY
-
105EB-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
115EB-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
1298517-05010-00 SCREW, PAN HEAD (35X)SCREW, PAN HEAD (35X)
-
135EB-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
1490464-15157-00 CLAMPCLAMP
-
1590464-15195-00 CLAMPCLAMP
-
165EB-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
1790464-15195-00 CLAMPCLAMP
