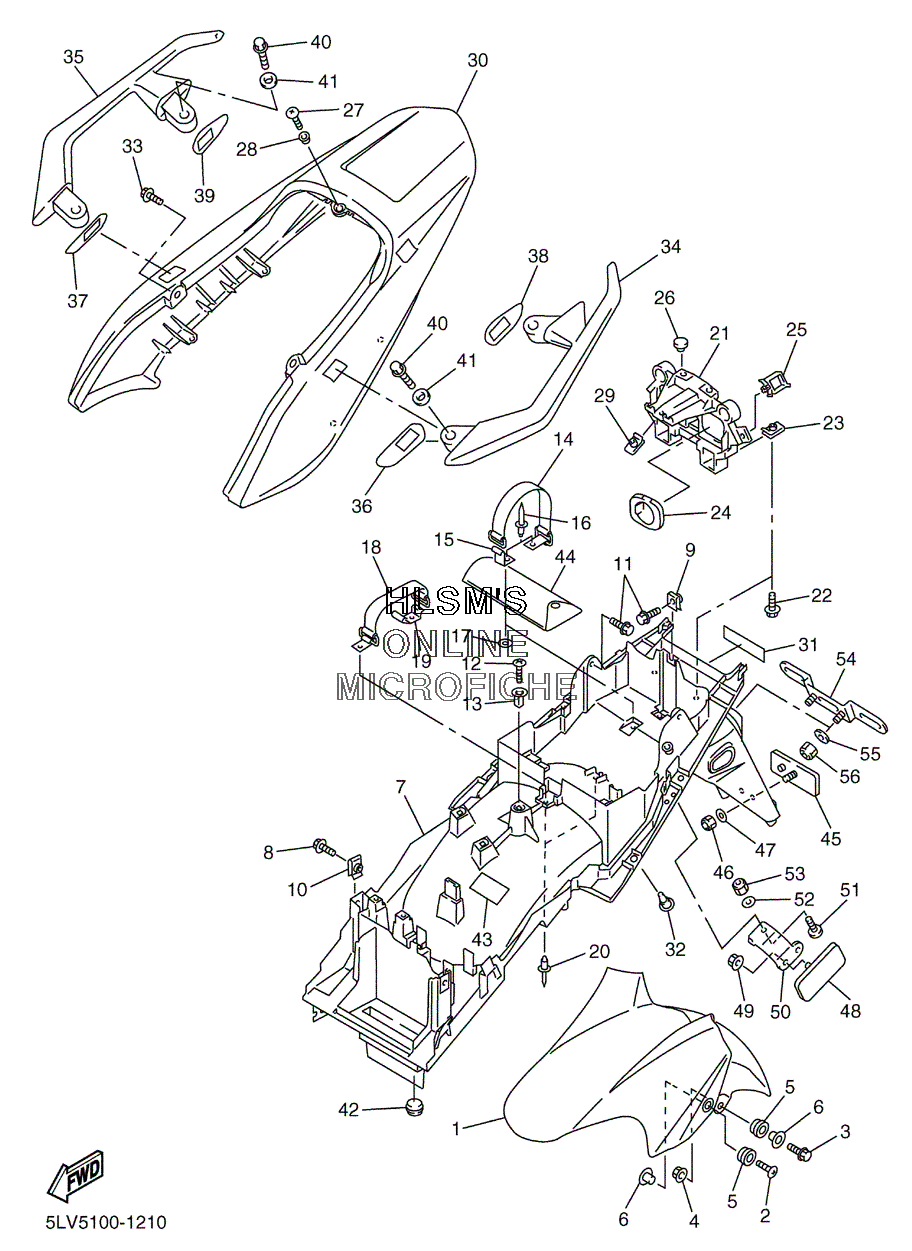

FENDER - FRONT / REAR для Yamaha FZS 1000 FZ-1 CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
15LV-21511-00-P0 FENDER, FRONT (DEEP PURPLISH BLUE METALLIC (DPBMC))FENDER, FRONT (DEEP PURPLISH BLUE METALLIC (DPBMC))
-
15LV-21511-00-P2 FENDER, FRONT (SILVER (S3))FENDER, FRONT (SILVER (S3))
-
290154-06061-00 SCREW, BINDINGSCREW, BINDING
-
395024-06025-00 BOLT, FLANGEBOLT, FLANGE
-
490179-06009-00 NUTNUT
-
590480-12072-00 GROMMETGROMMET
-
690387-065J6-00 COLLARCOLLAR
-
75LV-21611-00-00 FENDER, REARFENDER, REAR
-
890119-06205-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990183-06053-00 NUT, SPRINGNUT, SPRING
-
1090183-06023-00 NUT, SPRINGNUT, SPRING
-
1190119-06205-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1297707-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
1390338-08226-00 PLUGPLUG
-
144HM-21647-00-00 BANDBAND
-
154HM-2162A-00-00 HOOKHOOK
-
1690267-40076-00 RIVET, BLINDRIVET, BLIND
-
1790201-04018-00 WASHER, PLATEWASHER, PLATE
-
184HM-82131-00-00 BAND, BATTERYBAND, BATTERY
-
195LV-2162A-00-00 HOOKHOOK
-
2090267-40076-00 RIVET, BLINDRIVET, BLIND
-
215LV-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2290119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2390183-06053-00 NUT, SPRINGNUT, SPRING
-
245JJ-2172X-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
2590464-16025-00 CLAMPCLAMP
-
263L7-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
2790150-05039-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
2890387-06008-00 COLLARCOLLAR
-
2990183-05061-00 NUT, SPRINGNUT, SPRING
-
305LV-21651-00-P0 COVER, REAR FENDER (DEEP PURPLISH BLUE METALLIC (DPBMC))COVER, REAR FENDER (DEEP PURPLISH BLUE METALLIC (DPBMC))
-
305LV-21651-00-P2 COVER, REAR FENDER (SILVER (S3))COVER, REAR FENDER (SILVER (S3))
-
3199246-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
3290269-07077-00 RIVETRIVET
-
3390109-063F1-00 BOLTBOLT
-
345LV-2474A-00-P0 ASSIST, GRIP (DEEP PURPLISH BLUE METALLIC (DPBMC))ASSIST, GRIP (DEEP PURPLISH BLUE METALLIC (DPBMC))
-
345LV-2474A-00-P2 ASSIST, GRIP (SILVER (S3))ASSIST, GRIP (SILVER (S3))
-
355LV-2474W-00-P0 ASSIST,GRIP 2 (DEEP PURPLISH BLUE METALLIC (DPBMC))ASSIST,GRIP 2 (DEEP PURPLISH BLUE METALLIC (DPBMC))
-
355LV-2474W-00-P2 ASSIST,GRIP 2 (SILVER (S3))ASSIST,GRIP 2 (SILVER (S3))
-
365LV-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
375LV-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
385LV-24723-10-00 DAMPER, SEATDAMPER, SEAT
-
395LV-24724-10-00 DAMPER, SEATDAMPER, SEAT
-
4095027-08025-00 BOLT, FLANGEBOLT, FLANGE
-
4190201-087F0-00 WASHER, PLATEWASHER, PLATE
-
4290480-14100-00 GROMMETGROMMET
-
435LV-2179V-20-00 PLATE, EPA 1 (NON CALIFORNIA)PLATE, EPA 1 (NON CALIFORNIA)
-
435LV-2179R-20-00 PLATE, EPA 2 (CALIFORNIA)PLATE, EPA 2 (CALIFORNIA)
-
445LV-28100-00-00 TOOL KITTOOL KIT
-
453Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4695607-05200-00 NUT, U FLANGENUT, U FLANGE
-
4790201-05725-00 WASHER, PLATEWASHER, PLATE
-
483Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4995707-05500-00 NUT, FLANGENUT, FLANGE
-
504XV-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
5190149-04278-00 SCREWSCREW
-
5290201-04018-00 WASHER, PLATEWASHER, PLATE
-
5395607-04100-00 NUT, UNUT, U
-
545JJ-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
5590201-06057-00 WASHER, PLATEWASHER, PLATE
-
5695607-06100-00 NUT, UNUT, U
