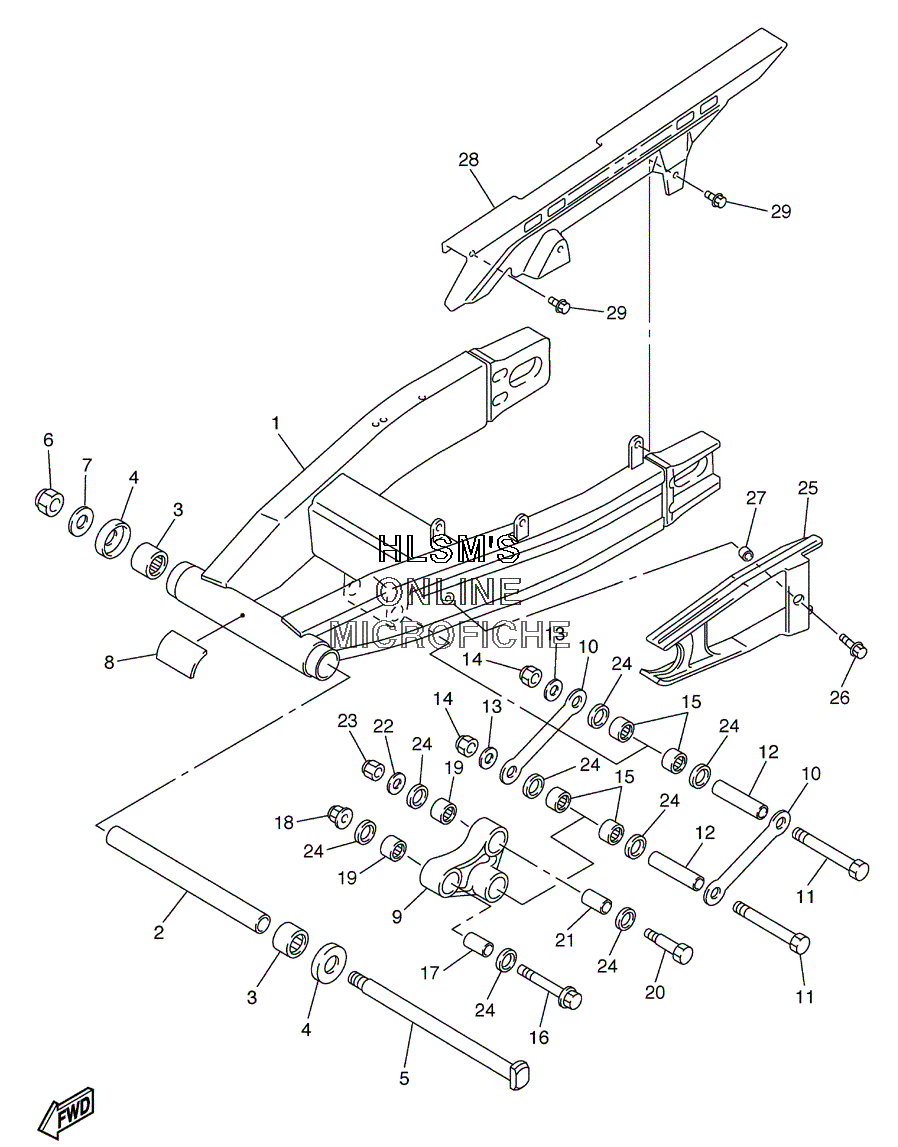

SUSPENSION - REAR ARM для Yamaha FZS 1000 FZ-1 CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
15LV-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
23FV-22184-00-00 BUSHBUSH
-
393315-42523-00 BEARINGBEARING
-
45JJ-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
53GM-22141-01-00 SHAFT, PIVOTSHAFT, PIVOT
-
690185-18104-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790201-186M4-00 WASHER, PLATEWASHER, PLATE
-
85LV-21732-00-00 SEAL 1SEAL 1
-
95LV-2217A-00-00 ARM, RELAYARM, RELAY
-
105LV-2217M-00-00 ARM 1ARM 1
-
1190101-12749-00 BOLTBOLT
-
1290387-126Y1-00 COLLARCOLLAR
-
1392907-12600-00 WASHERWASHER
-
1490185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1593317-21746-00 BEARINGBEARING
-
1690105-10376-00 BOLT, FLANGEBOLT, FLANGE
-
1790387-102R4-00 COLLARCOLLAR
-
1895607-10200-00 NUT, U-FLANGENUT, U-FLANGE
-
1993317-31771-00 BEARINGBEARING
-
2090101-10659-00 BOLTBOLT
-
2190387-127W0-00 COLLARCOLLAR
-
2290201-101J1-00 WASHER, PLATEWASHER, PLATE
-
2395617-10100-00 NUT, UNUT, U
-
2493109-17071-00 OIL SEALOIL SEAL
-
255LV-22151-01-00 SEAL, GUARDSEAL, GUARD
-
2690119-06118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2790387-06022-00 COLLARCOLLAR
-
285LV-22311-00-00 CASE, CHAINCASE, CHAIN
-
2990119-06007-00 BOLT, WITH WASHERBOLT, WITH WASHER
