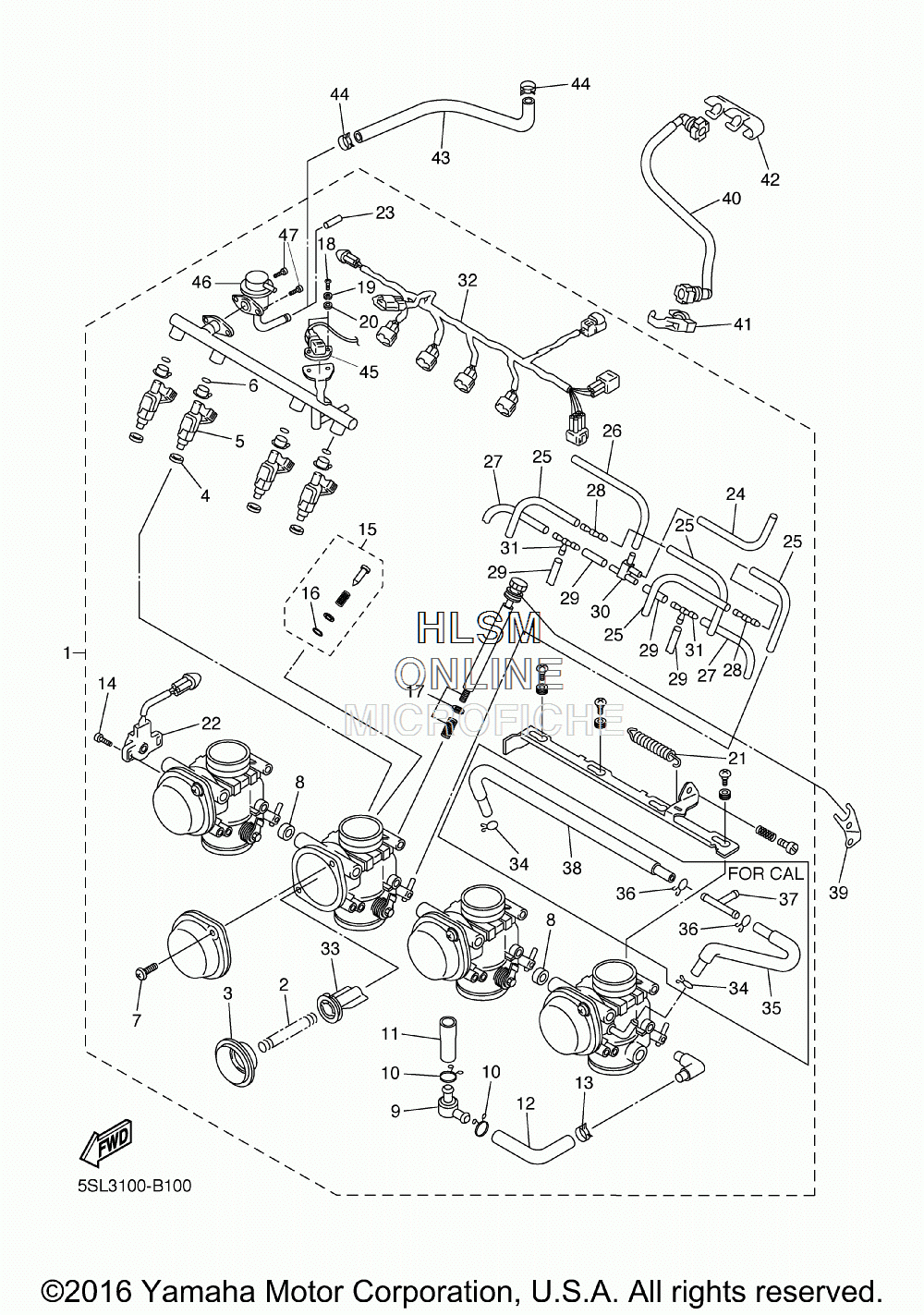

AIR CLEANER W/ INTAKE для Yamaha R6 [ YZFR6SR/C] (5SL7/5SL8) - 2003 года выпуска
-
№АртикулНазвание
-
15SL-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
15SL-13750-10-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
24SV-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
35SL-24411-00-00 ...DIAPHRAGM...DIAPHRAGM
-
490430-09002-00 ...GASKET...GASKET
-
55SL-13761-00-00 ...INJECTOR...INJECTOR
-
65FL-14147-00-00 ...O-RING...O-RING
-
74KM-14216-00-00 ...SCREW...SCREW
-
85SL-14987-00-00 ...HOSE...HOSE
-
93LN-24515-00-00 ...NET, FILTER 2...NET, FILTER 2
-
1090467-15012-00 ...CLIP...CLIP
-
115SL-14148-00-00 ...PIPE...PIPE
-
125SL-14348-00-00 ...PIPE 1...PIPE 1
-
1390467-15001-00 ...CLIP...CLIP
-
148CC-14216-10-00 ...SCREW...SCREW
-
155JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
163H1-14147-00-00 ......O-RING......O-RING
-
175SL-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
1898506-05016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1992906-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
2092906-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
215JW-14589-00-00 ...SPRING...SPRING
-
225SL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
235JW-14118-00-00 ...CAP...CAP
-
245SL-14349-00-00 ...PIPE...PIPE
-
255PW-14396-00-00 ...PIPE...PIPE
-
265PW-14349-00-00 ...PIPE...PIPE
-
2768V-13533-00-00 ...HOSE, VACUUM SENSING 4...HOSE, VACUUM SENSING 4
-
285PW-14251-00-00 ...NIPPLE...NIPPLE
-
295FL-14348-10-00 ...PIPE 1...PIPE 1
-
305PW-1410F-00-00 ...CONNECTOR...CONNECTOR
-
3168V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
325SL-82386-00-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
335PW-14112-00-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
344LE-14137-00-00 ...CLIP...CLIP
-
355SL-14465-00-00 ...PIPE...PIPE
-
3690467-10008-00 ...CLIP...CLIP
-
3790413-08012-00 ...WAY 3...WAY 3
-
385SL-14466-00-00 ...PIPE...PIPE
-
395SL-14413-00-00 STAYSTAY
-
405SL-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
4190464-16005-00 CLAMPCLAMP
-
4290464-16005-00 CLAMPCLAMP
-
435SL-13972-00-00 PIPE, FUEL 2PIPE, FUEL 2
-
4490467-12003-00 CLIPCLIP
-
455JW-13750-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
465SL-13906-00-00 ...REGULATOR, PRESSURE...REGULATOR, PRESSURE
-
4798507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
