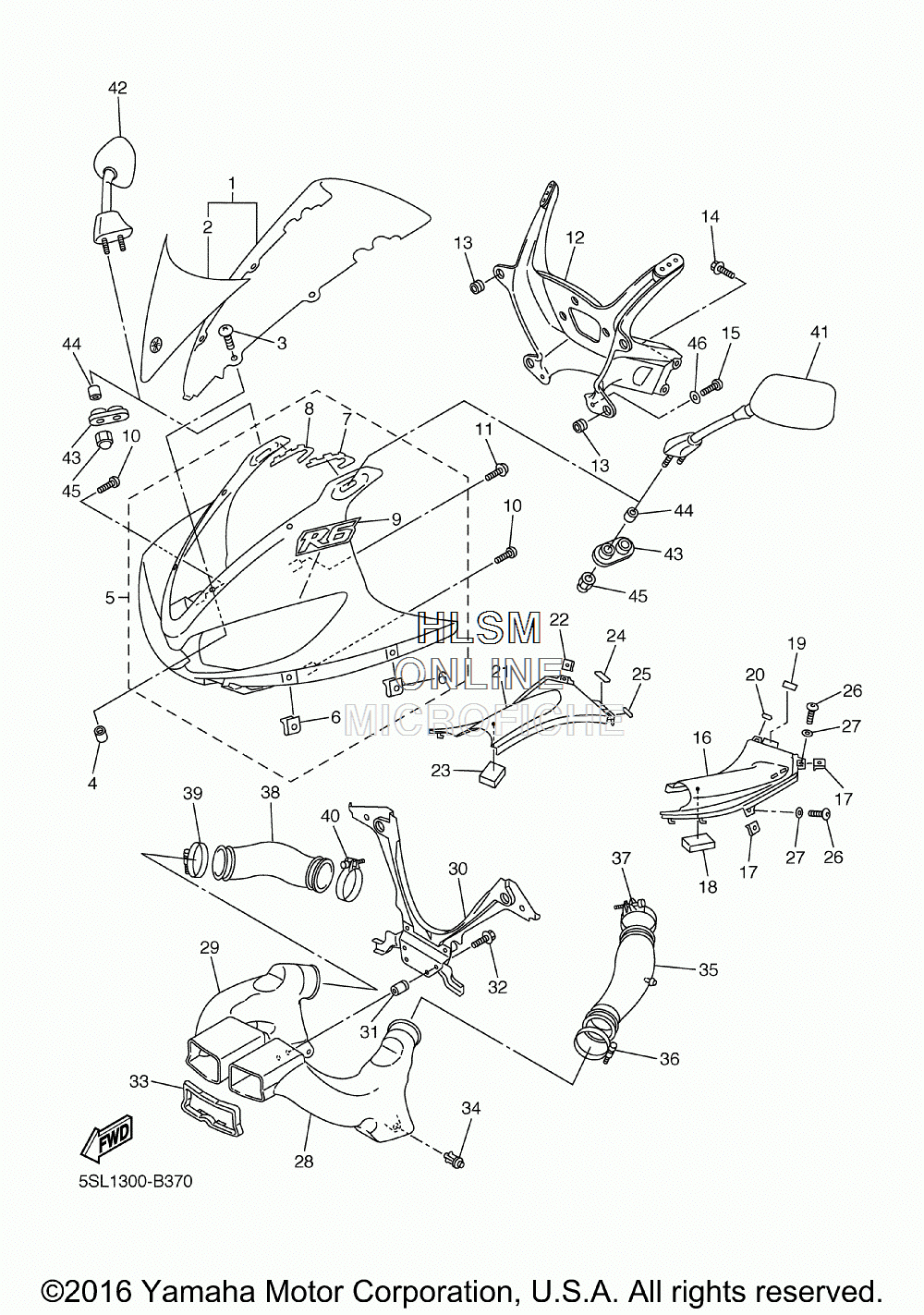

COWLING для Yamaha R6 [ YZFR6SR/C] (5SL7/5SL8) - 2003 года выпуска
-
№АртикулНазвание
-
15SL-Y2881-10-00 WINDSHIELDWINDSHIELD
-
25SL-2832P-00-00 ...GRAPHIC 18...GRAPHIC 18
-
390150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
490179-05523-00 NUTNUT
-
55SL-Y283G-50-33 BODY, FRONT UPPER 1 (YB)BODY, FRONT UPPER 1 (YB)
-
690183-05024-00 ...NUT, SPRING...NUT, SPRING
-
75SL-28428-00-00 ...SEAL 1...SEAL 1
-
85SL-28429-00-00 ...SEAL 2...SEAL 2
-
95SL-28315-50-00 ...EMBLEM...EMBLEM
-
1097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1190160-05007-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
125SL-28356-00-00 STAY 1STAY 1
-
134XV-83513-00-00 DAMPERDAMPER
-
1490105-08052-00 BOLT, FLANGEBOLT, FLANGE
-
1590167-05078-00 SCREW, TAPPINGSCREW, TAPPING
-
165SL-2837L-01-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
1790183-05061-00 NUT, SPRINGNUT, SPRING
-
184XY-21649-00-00 DAMPERDAMPER
-
191FK-84527-00-00 DAMPERDAMPER
-
205SL-28416-00-00 DAMPER 2DAMPER 2
-
215SL-2837M-01-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
2290183-05061-00 NUT, SPRINGNUT, SPRING
-
234XY-21649-00-00 DAMPERDAMPER
-
241FK-84527-00-00 DAMPERDAMPER
-
255SL-28416-00-00 DAMPER 2DAMPER 2
-
2690111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2790202-05180-00 WASHER, PLATEWASHER, PLATE
-
285SL-2838R-00-00 DUCT 2DUCT 2
-
295SL-2838T-00-00 DUCT 3DUCT 3
-
305SL-2838E-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
3190179-05523-00 NUTNUT
-
3290119-05001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
335SL-28371-00-00 DAMPERDAMPER
-
3490269-06008-00 RIVETRIVET
-
355EB-1446F-00-00 JOINT, SURGE TANK 1JOINT, SURGE TANK 1
-
364TV-13575-00-00 BANDBAND
-
3790460-59211-00 CLAMP, HOSECLAMP, HOSE
-
385EB-1446F-00-00 JOINT, SURGE TANK 1JOINT, SURGE TANK 1
-
394TV-13575-00-00 BANDBAND
-
4090460-59211-00 CLAMP, HOSECLAMP, HOSE
-
415SL-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
425SL-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
435SL-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
4490387-06057-00 COLLARCOLLAR
-
4590176-06008-00 NUT, CROWNNUT, CROWN
-
4690202-05088-00 WASHER, PLATEWASHER, PLATE
