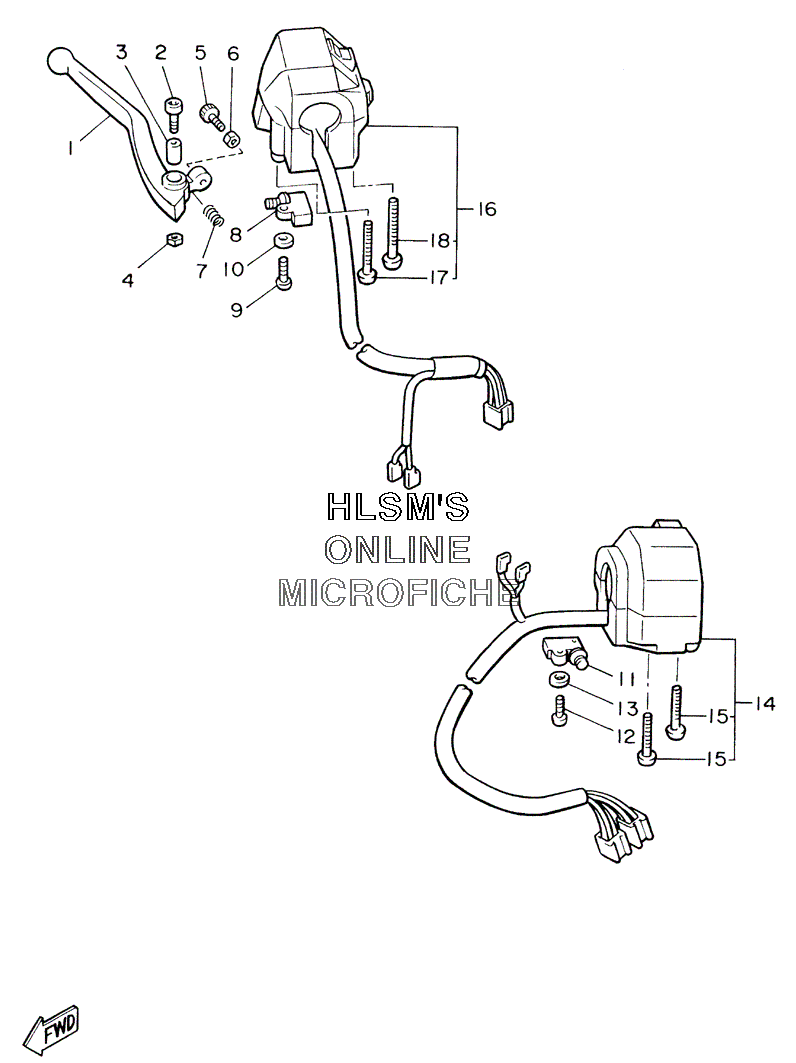

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha VMX 1200 V-MAX - 2003 года выпуска
-
№АртикулНазвание
-
11FK-83922-00-00 LEVER 2LEVER 2
-
290110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
336Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
495617-06100-00 NUT, UNUT, U
-
590149-06131-00 SCREWSCREW
-
690170-06010-00 NUTNUT
-
790501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
8J45-82503-01-00 SWITCH, ALARMSWITCH, ALARM
-
998517-04016-00 SCREWSCREW
-
1092907-04600-00 WASHERWASHER
-
1136Y-82917-00-00 SWITCHSWITCH
-
1298517-04016-00 SCREWSCREW
-
1392907-04600-00 WASHERWASHER
-
141UF-83973-10-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1598507-05035-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
161FK-83973-11-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1798507-05040-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
1898507-05045-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
