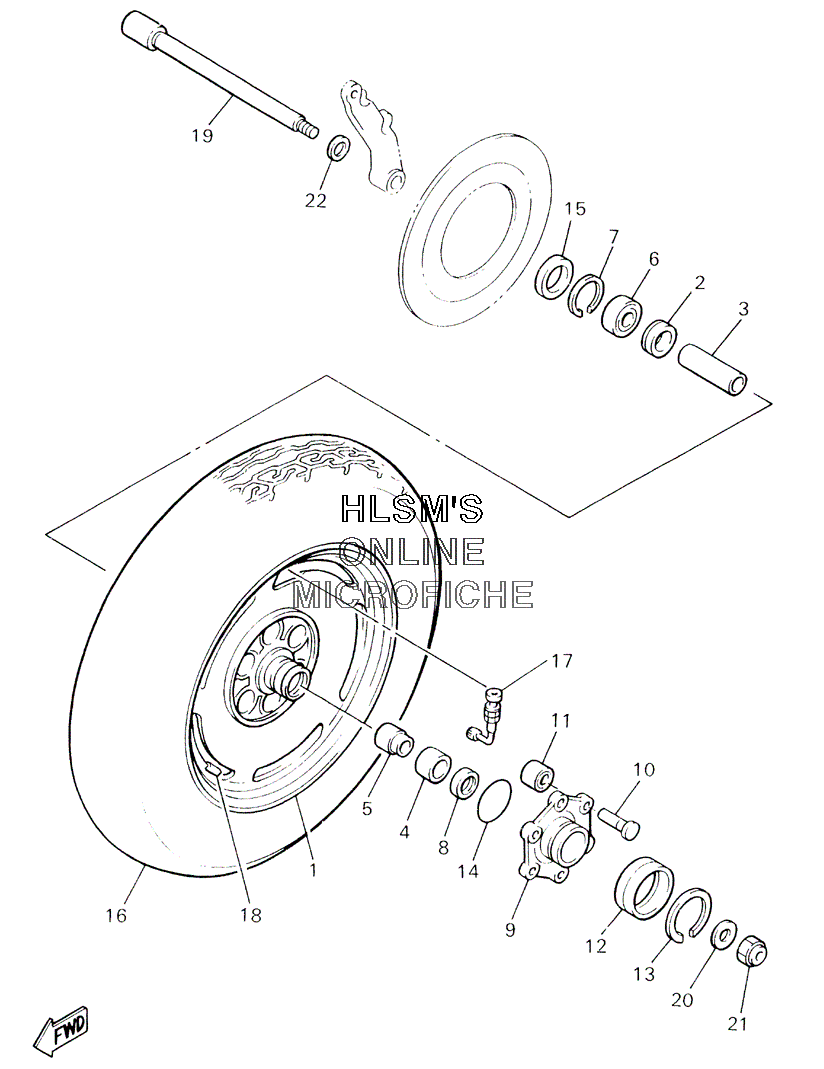

WHEEL - REAR для Yamaha VMX 1200 V-MAX - 2003 года выпуска
-
№АртикулНазвание
-
11UT-25338-01-35 CAST WHEEL, REAR (SILVER (SL))CAST WHEEL, REAR (SILVER (SL))
-
22H7-25315-00-00 FLANGE, SPACERFLANGE, SPACER
-
390560-20295-00 SPACERSPACER
-
493317-32677-00 BEARINGBEARING
-
590387-203H7-00 COLLARCOLLAR
-
693306-30437-00 BEARINGBEARING
-
799009-52500-00 CIRCLIPCIRCLIP
-
893102-25064-00 OIL SEALOIL SEAL
-
926H-25366-01-00 CLUTCH, HUBCLUTCH, HUB
-
1090249-12167-00 PINPIN
-
111FK-25364-00-00 DAMPERDAMPER
-
121J7-25319-02-00 SEAL, HUB DUSTSEAL, HUB DUST
-
1393440-45022-00 CIRCLIPCIRCLIP
-
1493210-68347-00 O-RINGO-RING
-
1593106-40027-00 OIL SEALOIL SEAL
-
1694115-1505G-00 TIRE (150/90-15 M/C 74V G526) (BRIDGESTONE)TIRE (150/90-15 M/C 74V G526) (BRIDGESTONE)
-
1793900-00025-00 VALVE, RIMVALVE, RIM
-
185MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
185MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
185MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
194NK-25381-10-00 AXLE, WHEELAXLE, WHEEL
-
2090201-181U5-00 WASHER, PLATEWASHER, PLATE
-
2190185-18167-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2292903-20600-00 WASHERWASHER
