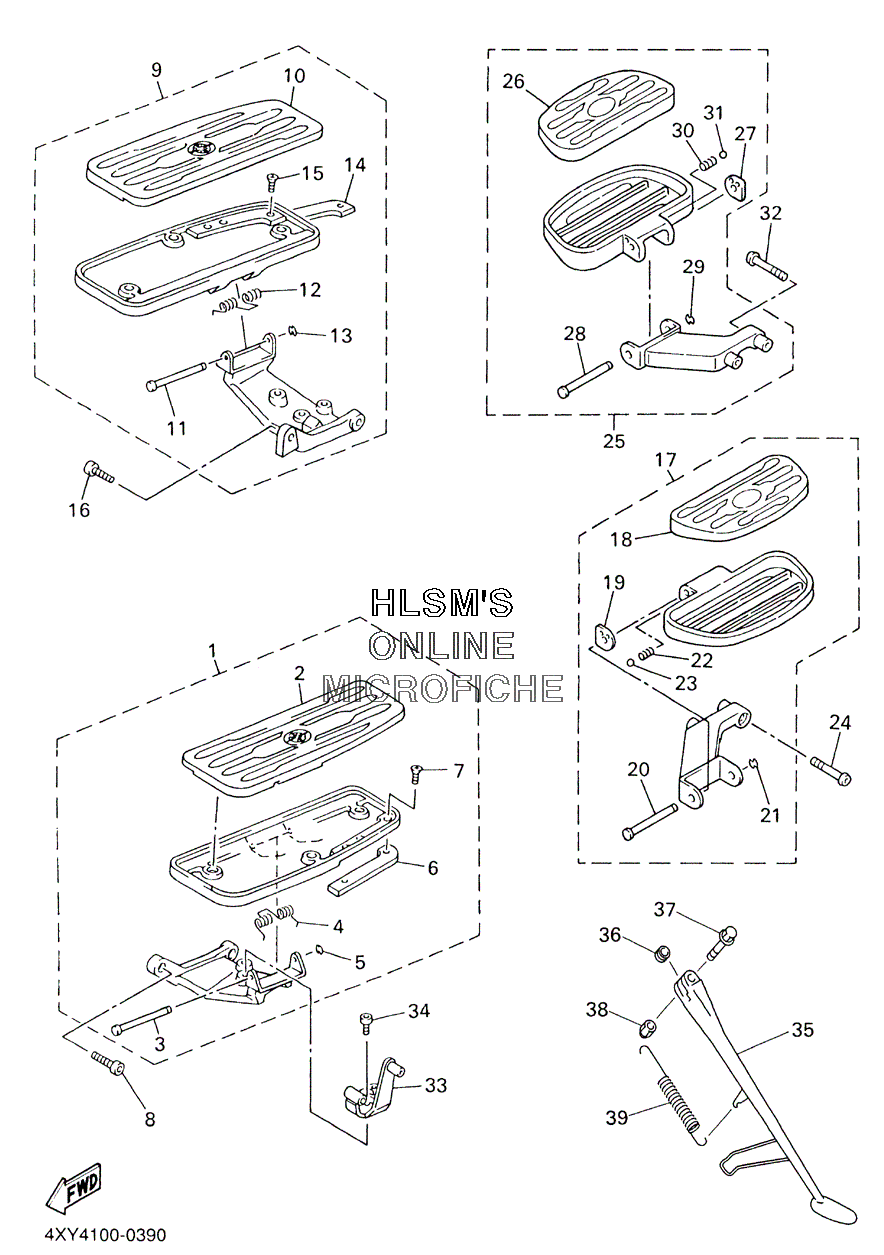

STAND W/ FOOTREST для Yamaha XVZ 1300 TF ROYAL STAR VENTURE - 2003 года выпуска
-
№АртикулНазвание
-
14XY-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
24XY-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
34NK-27427-00-00 ...SHAFT...SHAFT
-
44NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
599001-06600-00 ...CIRCLIP...CIRCLIP
-
64NK-27496-00-00 ...MOLE 1...MOLE 1
-
798780-05010-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
890110-10161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
94XY-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
104XY-27423-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
114NK-27427-00-00 ...SHAFT...SHAFT
-
124NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
1399001-06600-00 ...CIRCLIP...CIRCLIP
-
144NK-27497-00-00 ...MOLE 2...MOLE 2
-
1598780-05010-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
1690110-10161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
174XY-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
184YE-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
194YE-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
204YE-27427-00-00 ...SHAFT...SHAFT
-
2199001-06600-00 ...CIRCLIP...CIRCLIP
-
2290501-13720-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
2393501-04011-00 ...BALL...BALL
-
2492017-08040-00 BOLTBOLT
-
254XY-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
264YE-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
274YE-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
284YE-27427-00-00 ...SHAFT...SHAFT
-
2999001-06600-00 ...CIRCLIP...CIRCLIP
-
3090501-13720-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
3193501-04011-00 ...BALL...BALL
-
3292017-08040-00 BOLTBOLT
-
334NK-27443-00-00 BRACKET 3BRACKET 3
-
3491317-08014-00 BOLTBOLT
-
354XY-27311-00-00 STAND, SIDESTAND, SIDE
-
3690387-1215U-00 COLLARCOLLAR
-
3790105-12460-00 BOLT, FLANGEBOLT, FLANGE
-
3890185-12134-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3990506-35474-00 SPRING, TENSIONSPRING, TENSION
