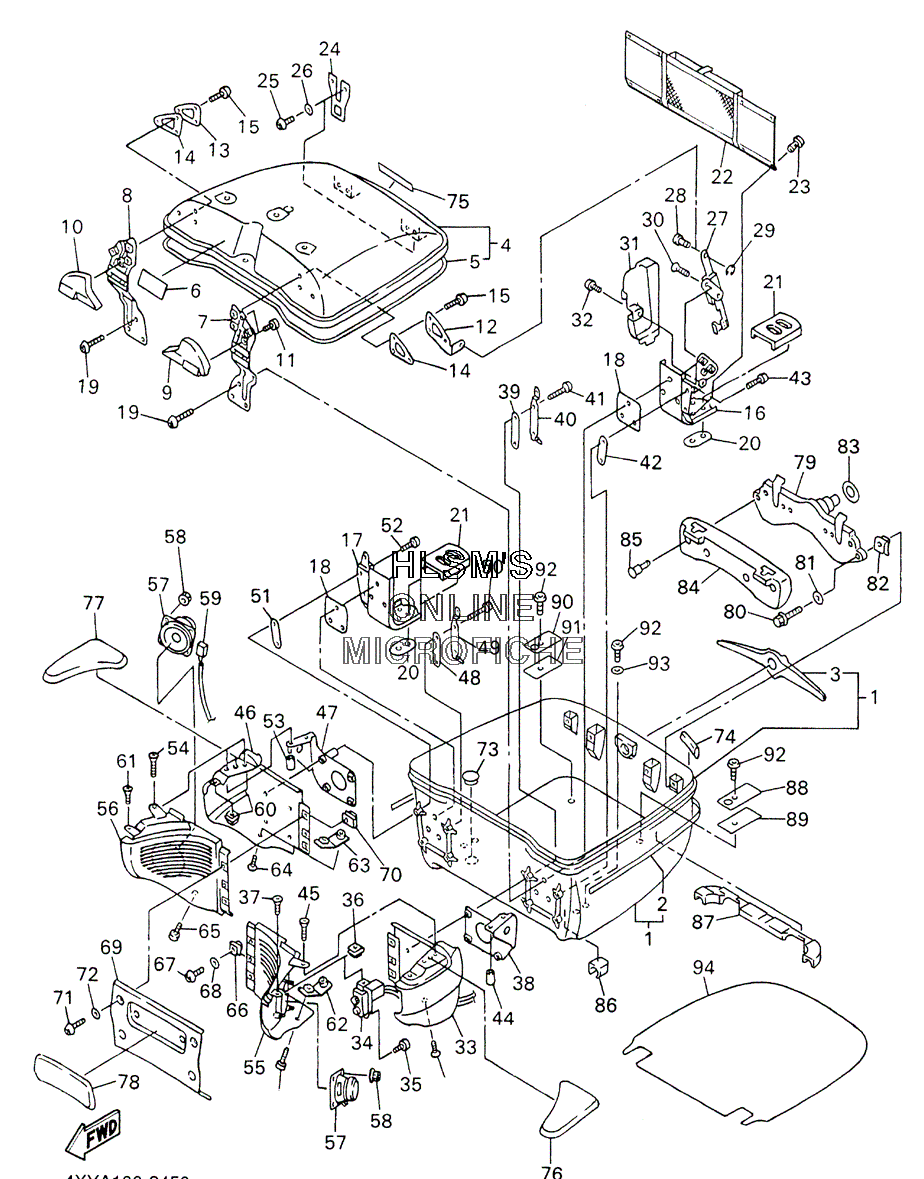

TRAVEL BAG для Yamaha XVZ 1300 TF ROYAL STAR VENTURE - 2003 года выпуска
-
№АртикулНазвание
-
14XY-W2846-00-7X TRAVEL TRUNK LOWER SET (LIGHT YELLOWISH GRAY METALLIC (LYMN9) / DULL RED METALLIC (DRMD))TRAVEL TRUNK LOWER SET (LIGHT YELLOWISH GRAY METALLIC (LYMN9) / DULL RED METALLIC (DRMD))
-
24XY-2840H-70-00 ...GRAPHIC SET, TRAVEL TRUNK...GRAPHIC SET, TRAVEL TRUNK
-
34XY-28445-00-00 ...EMBLEM...EMBLEM
-
44XY-W2847-00-P5 TRAVEL TRUNK UPPER SET (LIGHT YELLOWISH GRAY METALLIC (LYMN9))TRAVEL TRUNK UPPER SET (LIGHT YELLOWISH GRAY METALLIC (LYMN9))
-
54XY-28428-00-00 ...SEAL 1...SEAL 1
-
64XY-2179V-40-00 PLATE, EPA 1 (EXCEPT CALIF)PLATE, EPA 1 (EXCEPT CALIF)
-
64XY-2179R-40-00 PLATE, EPA 2 (CALIF ONLY)PLATE, EPA 2 (CALIF ONLY)
-
74XY-2845E-01-00 HINGE 2HINGE 2
-
84XY-2849E-01-00 HINGE 4HINGE 4
-
94XY-2846K-00-P5 COVER, HINGE 1 (LIGHT YELLOWISH GRAY METALLIC (LYMN9))COVER, HINGE 1 (LIGHT YELLOWISH GRAY METALLIC (LYMN9))
-
104XY-2846L-00-P5 COVER, HINGE 2 (LIGHT YELLOWISH GRAY METALLIC (LYMN9))COVER, HINGE 2 (LIGHT YELLOWISH GRAY METALLIC (LYMN9))
-
1197707-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
124XY-28487-00-00 PLATE 2PLATE 2
-
134XY-28497-00-00 PLATE 3PLATE 3
-
144XY-28485-00-00 PLATE, RUBBER 3PLATE, RUBBER 3
-
1592017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
164XY-28486-01-00 BRACKET 5BRACKET 5
-
174XY-28496-01-00 BRACKET 6BRACKET 6
-
184XY-28484-00-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
1992017-05020-00 BOLTBOLT
-
204XY-28483-00-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
214XY-2848M-00-00 SEAT 4SEAT 4
-
224XY-2848L-00-00 SEAT 3SEAT 3
-
2390269-05055-00 RIVETRIVET
-
244XY-28488-00-00 HOOKHOOK
-
2592017-05008-00 BOLTBOLT
-
2690201-05725-00 WASHER, PLATEWASHER, PLATE
-
274XY-2845L-01-00 STOPPER, OPENSTOPPER, OPEN
-
284XY-2842L-00-00 PIN, STOPPERPIN, STOPPER
-
2999080-04600-00 ...CIRCLIP...CIRCLIP
-
3098707-04010-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
314XY-2843F-00-00 COVER ASSYCOVER ASSY
-
3292017-05010-00 BOLTBOLT
-
334XY-8816E-01-P5 BASE, REMOCON. (LIGHT YELLOWISH GRAY METALLIC (LYMN9))BASE, REMOCON. (LIGHT YELLOWISH GRAY METALLIC (LYMN9))
-
344XY-88169-01-00 REMOTE CONTROL 1REMOTE CONTROL 1
-
3597707-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
3690183-05024-00 NUT, SPRINGNUT, SPRING
-
3798707-05014-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
384XY-28426-00-00 BRACKET 1BRACKET 1
-
394XY-2848J-00-00 PLATE, RUBBER 8PLATE, RUBBER 8
-
404XY-2841R-00-00 PLATE, BOTTOMPLATE, BOTTOM
-
4192017-06030-00 BOLTBOLT
-
424XY-2847J-00-00 PLATE, RUBBER 7PLATE, RUBBER 7
-
4392017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4490179-05523-00 NUTNUT
-
4598707-05020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
464XY-2841L-01-P5 BODY (LIGHT YELLOWISH GRAY METALLIC (LYMN9))BODY (LIGHT YELLOWISH GRAY METALLIC (LYMN9))
-
474XY-28436-00-00 BRACKET 2BRACKET 2
-
484XY-2848J-00-00 PLATE, RUBBER 8PLATE, RUBBER 8
-
494XY-2841R-00-00 PLATE, BOTTOMPLATE, BOTTOM
-
5092017-06030-00 BOLTBOLT
-
514XY-2847J-00-00 PLATE, RUBBER 7PLATE, RUBBER 7
-
5292017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5390179-05523-00 NUTNUT
-
5498707-05020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
554XY-88165-01-P5 GRILLE, SPEAKER 1 (LIGHT YELLOWISH GRAY METALLIC (LYMN9))GRILLE, SPEAKER 1 (LIGHT YELLOWISH GRAY METALLIC (LYMN9))
-
564XY-88175-01-P5 GRILLE, SPEAKER 2 (LIGHT YELLOWISH GRAY METALLIC (LYMN9))GRILLE, SPEAKER 2 (LIGHT YELLOWISH GRAY METALLIC (LYMN9))
-
574XY-88161-00-00 SPEAKER 1SPEAKER 1
-
5895707-05500-00 NUT, FLANGENUT, FLANGE
-
594XY-88176-00-00 CORDCORD
-
6090183-05024-00 NUT, SPRINGNUT, SPRING
-
6198707-05016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
624XY-2846H-01-00 PLATE, 4PLATE, 4
-
634XY-28417-01-00 PLATEPLATE
-
6498707-05012-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
6598907-05012-00 SCREW, BINDINGSCREW, BINDING
-
6690183-05024-00 NUT, SPRINGNUT, SPRING
-
6798517-05012-00 SCREWSCREW
-
6892907-05600-00 WASHER, PLATEWASHER, PLATE
-
694XY-2844J-00-P5 COVER 4COVER 4
-
7090183-05024-00 NUT, SPRINGNUT, SPRING
-
7192014-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7290202-05088-00 WASHER, PLATEWASHER, PLATE
-
7390338-24260-00 PLUGPLUG
-
741JK-21268-00-00 SEALSEAL
-
7599247-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
764XY-2848N-00-00 SEAT 5SEAT 5
-
774XY-2848P-00-00 SEAT 6SEAT 6
-
784XY-2848R-00-00 SEAT 7SEAT 7
-
794XY-W2841-00-00 LOCK ASS'Y 1LOCK ASS'Y 1
-
8090101-05396-00 ...BOLT...BOLT
-
8192907-05600-00 WASHER, PLATEWASHER, PLATE
-
8290183-05024-00 NUT, SPRINGNUT, SPRING
-
834KN-2475M-00-00 SEALSEAL
-
844XY-28493-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
8590269-06001-00 RIVETRIVET
-
864XY-2847R-00-00 DAMPER 10DAMPER 10
-
874XY-2847N-00-00 DAMPER 8DAMPER 8
-
884XY-2846P-00-00 PLATE 7PLATE 7
-
894XY-2849J-00-00 PLATE, RUBBER 9PLATE, RUBBER 9
-
904XY-2846R-00-00 PLATE 8PLATE 8
-
914XY-2847T-00-00 PLATE, RUBBER 11PLATE, RUBBER 11
-
9292017-06016-00 BOLTBOLT
-
9392907-06600-00 WASHER, PLATEWASHER, PLATE
-
944XY-2848H-00-00 SEATSEAT
