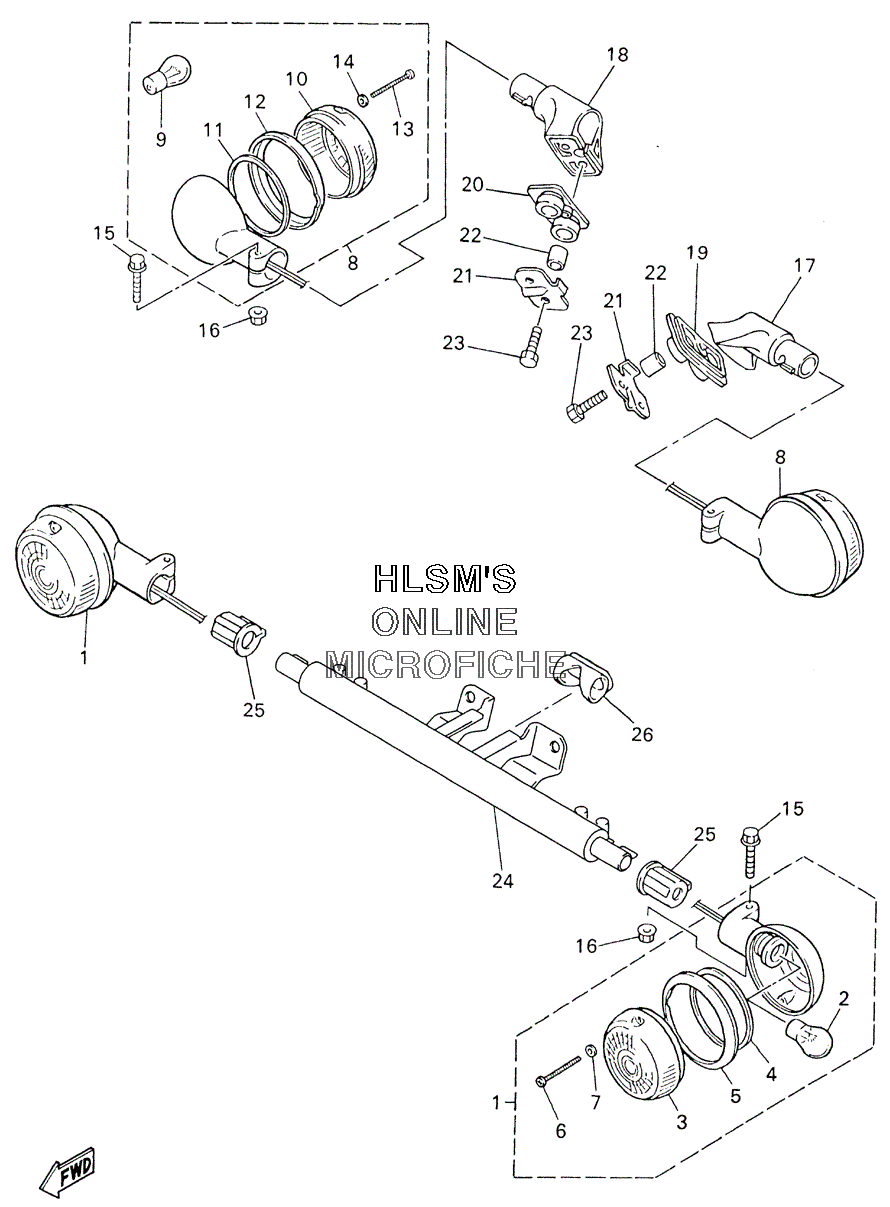

FLASHER LIGHT для Yamaha XVZ 1300 TFS ROYAL STAR MIDNIGHT VENTURE - 2003 года выпуска
-
№АртикулНазвание
-
14WM-83310-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
2256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
342X-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
442X-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
542X-83363-00-00 ...LENS, RIM...LENS, RIM
-
657M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
73AA-84327-00-00 ......WASHER, SPECIAL......WASHER, SPECIAL
-
81AA-83330-K0-00 FLASHER LIGHT ASSY 2FLASHER LIGHT ASSY 2
-
9256-83311-70-XX ......BULB (12V-27W)......BULB (12V-27W)
-
1042X-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1142X-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
1242X-83363-00-00 ...LENS, RIM...LENS, RIM
-
1357M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
143AA-84327-00-00 ......WASHER, SPECIAL......WASHER, SPECIAL
-
1595024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1695780-06500-00 NUT, FLANGENUT, FLANGE
-
174YE-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
184YE-83328-00-00 STAY, FLASHER 2STAY, FLASHER 2
-
194YE-83314-00-00 BASE, FLASHER 1BASE, FLASHER 1
-
204YE-83324-00-00 BASE, FLASHER 2BASE, FLASHER 2
-
214YE-8334F-00-00 WASHER, SPECIAL 8WASHER, SPECIAL 8
-
2290387-060A7-00 COLLARCOLLAR
-
2397017-06020-00 BOLTBOLT
-
244XY-2317V-00-00 STAY 8STAY 8
-
254NK-83321-00-00 DAMPER, FLASHER 1DAMPER, FLASHER 1
-
264NK-83345-00-00 PLUG, BLINDPLUG, BLIND
