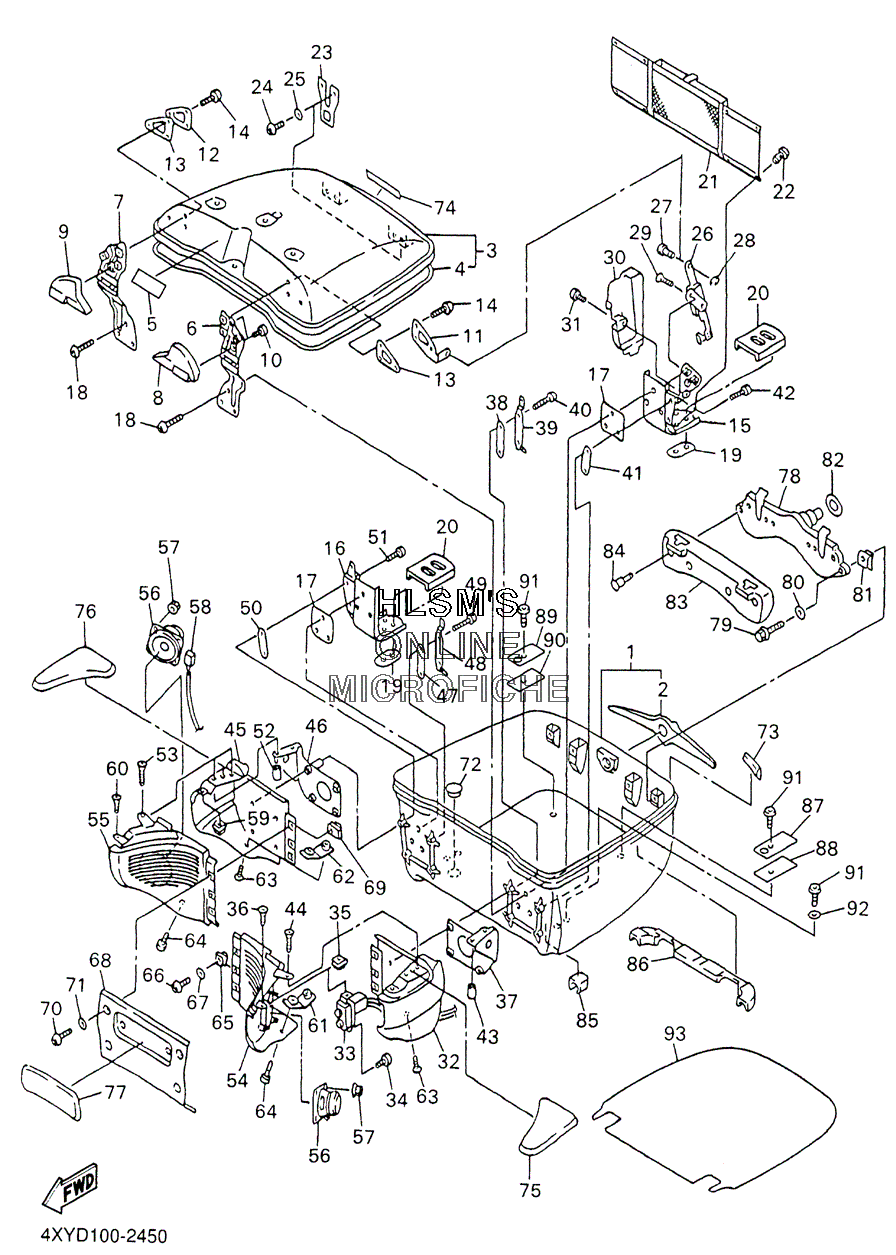

TRAVEL BAG для Yamaha XVZ 1300 TFS ROYAL STAR MIDNIGHT VENTURE - 2003 года выпуска
-
№АртикулНазвание
-
14XY-W2846-00-33 TRAVEL TRUNK LOWER SET (YAMAHA BLACK (YB))TRAVEL TRUNK LOWER SET (YAMAHA BLACK (YB))
-
24XY-28445-00-00 ...EMBLEM...EMBLEM
-
34XY-W2847-00-33 TRAVEL TRUNK UPPER SET (YAMAHA BLACK (YB))TRAVEL TRUNK UPPER SET (YAMAHA BLACK (YB))
-
44XY-28428-00-00 ...SEAL 1...SEAL 1
-
54XY-2179V-40-00 PLATE, EPA 1 (NON CALIFORNIA)PLATE, EPA 1 (NON CALIFORNIA)
-
54XY-2179R-40-00 PLATE, EPA 2 (CALIFORNIA)PLATE, EPA 2 (CALIFORNIA)
-
64XY-2845E-01-00 HINGE 2HINGE 2
-
74XY-2849E-01-00 HINGE 4HINGE 4
-
84XY-2846K-00-33 COVER, HINGE 1 (YAMAHA BLACK (YB))COVER, HINGE 1 (YAMAHA BLACK (YB))
-
94XY-2846L-00-33 COVER, HINGE 2 (YAMAHA BLACK (YB))COVER, HINGE 2 (YAMAHA BLACK (YB))
-
1097707-40010-00 SCREW, TRUSSSCREW, TRUSS
-
114XY-28487-00-00 PLATE 2PLATE 2
-
124XY-28497-00-00 PLATE 3PLATE 3
-
134XY-28485-00-00 PLATE, RUBBER 3PLATE, RUBBER 3
-
1492017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
154XY-28486-01-00 BRACKET 5BRACKET 5
-
164XY-28496-01-00 BRACKET 6BRACKET 6
-
174XY-28484-00-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
1892017-05020-00 BOLTBOLT
-
194XY-28483-00-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
204XY-2848M-00-00 SEAT 4SEAT 4
-
214XY-2848L-00-00 SEAT 3SEAT 3
-
2290269-05055-00 RIVETRIVET
-
234XY-28488-00-00 HOOKHOOK
-
2492017-05008-00 BOLTBOLT
-
2590201-05725-00 WASHER, PLATEWASHER, PLATE
-
264XY-2845L-01-00 STOPPER, OPENSTOPPER, OPEN
-
274XY-2842L-00-00 PIN, STOPPERPIN, STOPPER
-
2899080-04600-00 ...CIRCLIP...CIRCLIP
-
2998707-04010-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
304XY-2843F-00-00 COVER ASSYCOVER ASSY
-
3192017-05010-00 BOLTBOLT
-
324XY-8816E-01-33 BASE, REMOCON. (YAMAHA BLACK (YB))BASE, REMOCON. (YAMAHA BLACK (YB))
-
334XY-88169-01-00 REMOTE CONTROL 1REMOTE CONTROL 1
-
3497707-40010-00 SCREW, TRUSSSCREW, TRUSS
-
3590183-05024-00 NUT, SPRINGNUT, SPRING
-
3698707-05014-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
374XY-28426-00-00 BRACKET 1BRACKET 1
-
384XY-2848J-00-00 PLATE, RUBBER 8PLATE, RUBBER 8
-
394XY-2841R-00-00 PLATE, BOTTOMPLATE, BOTTOM
-
4092017-06030-00 BOLTBOLT
-
414XY-2847J-00-00 PLATE, RUBBER 7PLATE, RUBBER 7
-
4292017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4390179-05523-00 NUTNUT
-
4498707-05020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
454XY-2841L-01-33 BODY (YAMAHA BLACK (YB))BODY (YAMAHA BLACK (YB))
-
464XY-28436-00-00 BRACKET 2BRACKET 2
-
474XY-2848J-00-00 PLATE, RUBBER 8PLATE, RUBBER 8
-
484XY-2841R-00-00 PLATE, BOTTOMPLATE, BOTTOM
-
4992017-06030-00 BOLTBOLT
-
504XY-2847J-00-00 PLATE, RUBBER 7PLATE, RUBBER 7
-
5192017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5290179-05523-00 NUTNUT
-
5398707-05020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
544XY-88165-01-33 GRILLE, SPEAKER 1 (YAMAHA BLACK (YB))GRILLE, SPEAKER 1 (YAMAHA BLACK (YB))
-
554XY-88175-01-33 GRILLE, SPEAKER 2 (YAMAHA BLACK (YB))GRILLE, SPEAKER 2 (YAMAHA BLACK (YB))
-
564XY-88161-00-00 SPEAKER 1SPEAKER 1
-
5795707-05500-00 NUT, FLANGENUT, FLANGE
-
584XY-88176-00-00 CORDCORD
-
5990183-05024-00 NUT, SPRINGNUT, SPRING
-
6098707-05016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
614XY-2846H-01-00 PLATE, 4PLATE, 4
-
624XY-28417-01-00 PLATEPLATE
-
6398707-05012-00 SCREW, FLATSCREW, FLAT
-
6498907-05012-00 BOLT, SOCKETBOLT, SOCKET
-
6590183-05024-00 NUT, SPRINGNUT, SPRING
-
6698517-05012-00 SCREWSCREW
-
6792907-05600-00 WASHERWASHER
-
684XY-2844J-00-33 COVER 4COVER 4
-
6990183-05024-00 NUT, SPRINGNUT, SPRING
-
7092014-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7190202-05088-00 WASHER, PLATEWASHER, PLATE
-
7290338-24260-00 PLUGPLUG
-
731JK-21268-00-00 SEALSEAL
-
7499247-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
754XY-2848N-00-00 SEAT 5SEAT 5
-
764XY-2848P-00-00 SEAT 6SEAT 6
-
774XY-2848R-00-00 SEAT 7SEAT 7
-
784XY-W2841-00-00 LOCK ASS'Y 1LOCK ASS'Y 1
-
7990101-05396-00 ...BOLT...BOLT
-
8092907-05600-00 WASHERWASHER
-
8190183-05024-00 NUT, SPRINGNUT, SPRING
-
824KN-2475M-00-00 SEALSEAL
-
834XY-28493-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
8490269-06001-00 RIVETRIVET
-
854XY-2847R-00-00 DAMPER 10DAMPER 10
-
864XY-2847N-00-00 DAMPER 8DAMPER 8
-
874XY-2846P-00-00 PLATE 7PLATE 7
-
884XY-2849J-00-00 PLATE, RUBBER 9PLATE, RUBBER 9
-
894XY-2846R-00-00 PLATE 8PLATE 8
-
904XY-2847T-00-00 PLATE, RUBBER 11PLATE, RUBBER 11
-
9192017-06016-00 BOLTBOLT
-
9292907-06600-00 WASHER, PLATEWASHER, PLATE
-
934XY-2848H-00-00 SEATSEAT
