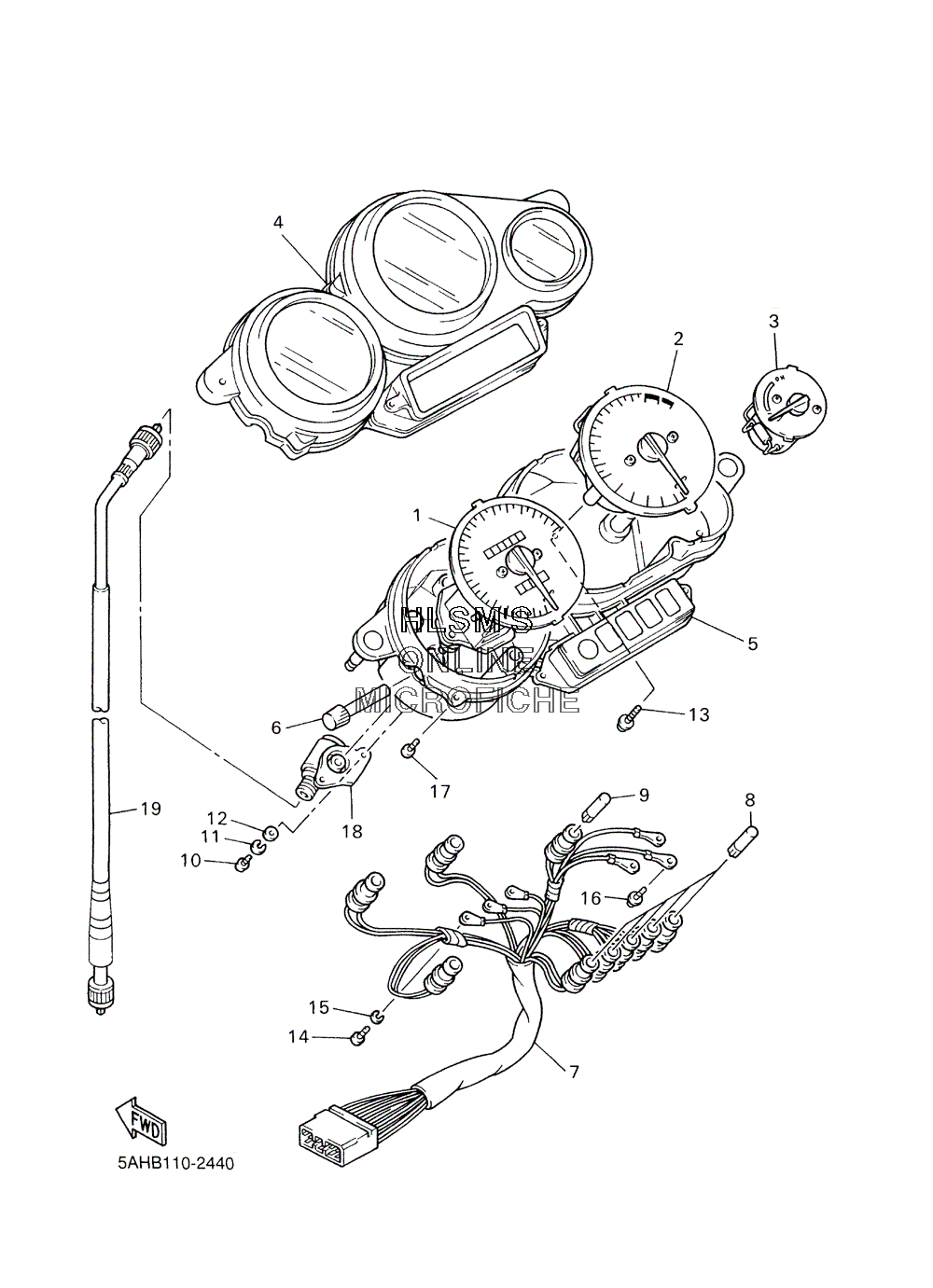

INSTRUMENT PANEL для Yamaha YZF 600 R CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
14TV-83570-40-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
24TV-83540-00-00 TACHOMETER ASSYTACHOMETER ASSY
-
34SV-83590-00-00 WATER TEMPERATURE ASSYWATER TEMPERATURE ASSY
-
44FM-83559-00-00 COVER, METERCOVER, METER
-
54FM-8353H-40-00 CASE, UNDERCASE, UNDER
-
64SV-83578-00-00 KNOB, TRIP METERKNOB, TRIP METER
-
74TV-83509-00-00 SOCKET CORD ASSYSOCKET CORD ASSY
-
84R0-83517-00-00 BULB (12V-3.4W T10)BULB (12V-3.4W T10)
-
93GM-83517-00-00 BULB (12V-1.7W)BULB (12V-1.7W)
-
1098507-04010-00 SCREWSCREW
-
1192907-04100-00 WASHER, SPRINGWASHER, SPRING
-
1292907-04600-00 WASHERWASHER
-
134NX-83546-00-00 BOLTBOLT
-
1498507-03010-00 SCREWSCREW
-
1592907-03100-00 WASHER, SPRINGWASHER, SPRING
-
1690159-03102-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
174SV-83546-00-00 BOLTBOLT
-
184FM-83520-00-00 SOCKET CORD ASSYSOCKET CORD ASSY
-
194TV-83550-01-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
