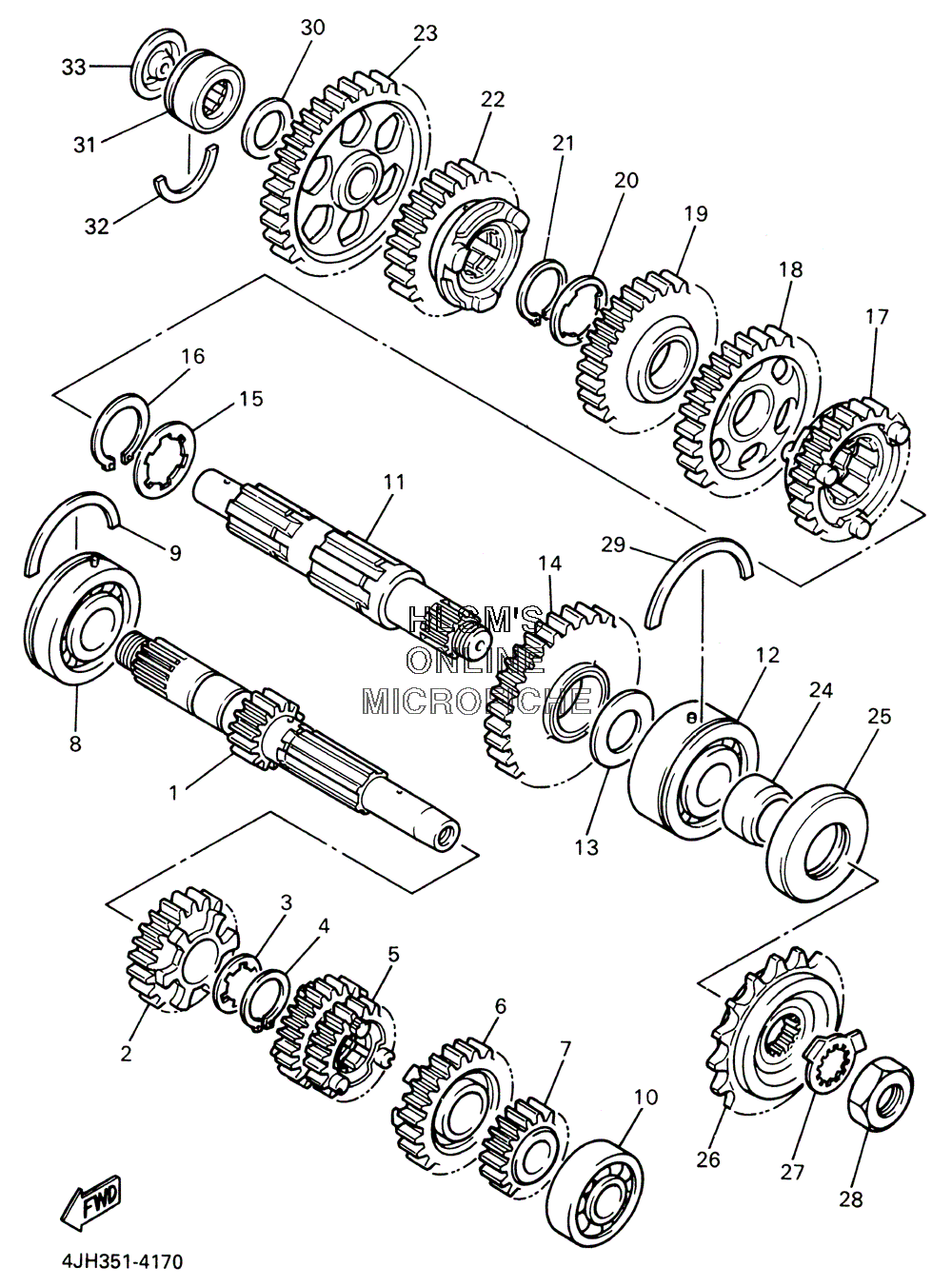

TRANSMISSION для Yamaha YZF 600 R CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
14JH-17411-00-00 AXLE, MAIN (13T)AXLE, MAIN (13T)
-
24TV-17151-00-00 GEAR, 5TH PINION (21T)GEAR, 5TH PINION (21T)
-
390209-22191-00 WASHERWASHER
-
493440-25084-00 CIRCLIPCIRCLIP
-
54JH-17131-00-00 GEAR, 3RD/4TH PINION (22T/21T)GEAR, 3RD/4TH PINION (22T/21T)
-
64TV-17161-00-00 GEAR, 6TH PINION (27T)GEAR, 6TH PINION (27T)
-
74TV-17121-00-00 GEAR, 2ND PINION (19T)GEAR, 2ND PINION (19T)
-
893306-37208-00 BEARINGBEARING
-
993440-54152-00 CIRCLIPCIRCLIP
-
1093306-20464-00 BEARINGBEARING
-
114TV-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
1293305-20509-00 BEARINGBEARING
-
134TV-17417-00-00 SHIM 1SHIM 1
-
144JH-17221-00-00 GEAR, 2ND WHEEL (37T)GEAR, 2ND WHEEL (37T)
-
1590209-27336-00 WASHERWASHER
-
1693440-30077-00 CIRCLIPCIRCLIP
-
174TV-17261-00-00 GEAR, 6TH WHEEL (29T)GEAR, 6TH WHEEL (29T)
-
184JH-17231-00-00 GEAR, 3RD WHEEL (34T)GEAR, 3RD WHEEL (34T)
-
194JH-17241-00-00 GEAR, 4TH WHEEL (28T)GEAR, 4TH WHEEL (28T)
-
2090209-22191-00 WASHERWASHER
-
2193440-25084-00 CIRCLIPCIRCLIP
-
224TV-17251-00-00 GEAR, 5TH WHEEL (25T)GEAR, 5TH WHEEL (25T)
-
234JH-17211-00-00 GEAR, 1ST WHEEL (37T)GEAR, 1ST WHEEL (37T)
-
2490387-2504A-00 COLLARCOLLAR
-
2593102-35368-00 OIL SEALOIL SEAL
-
264TV-17460-00-00 SPROCKET, DRIVE (15T)SPROCKET, DRIVE (15T)
-
2790215-21022-00 WASHER, LOCKWASHER, LOCK
-
2890179-18020-00 NUTNUT
-
2993440-52014-00 CIRCLIPCIRCLIP
-
3090201-20276-00 WASHER, PLATE ( 1.0T)WASHER, PLATE ( 1.0T)
-
3193311-42045-00 BEARING (20NG3315NE)BEARING (20NG3315NE)
-
32278-17425-00-00 CIRCLIP 2CIRCLIP 2
-
334G0-17433-01-00 NOZZLENOZZLE
