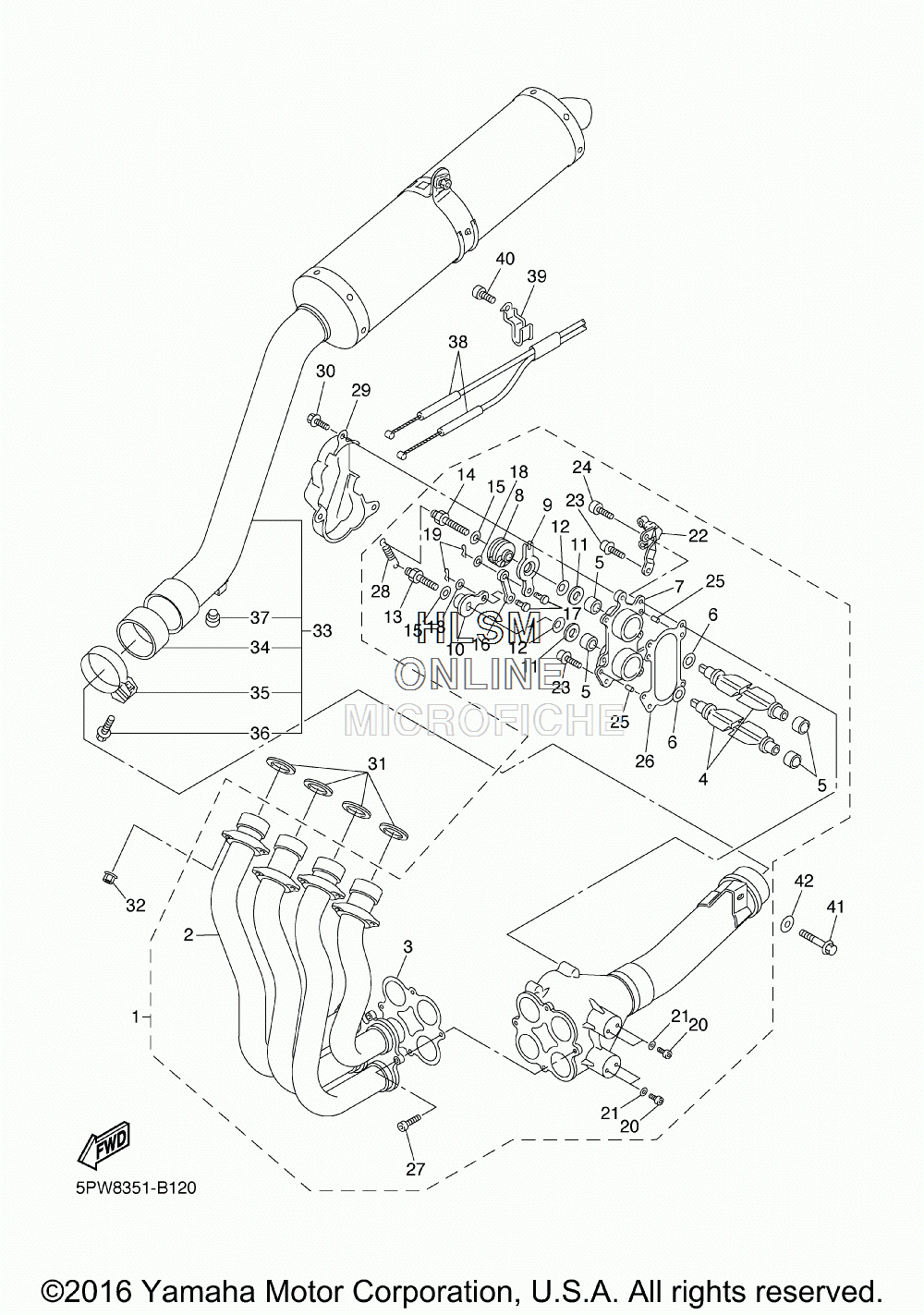

EXHAUST для Yamaha YZF-R1 - 2003 года выпуска
-
№АртикулНазвание
-
15PW-14610-01-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
25PW-14602-01-00 ...EXHAUST PIPE COMP....EXHAUST PIPE COMP.
-
35PW-14623-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
45PW-14821-00-00 ...ARM, SHAFT (VALVE)...ARM, SHAFT (VALVE)
-
55PW-14638-01-00 ...COLLAR...COLLAR
-
690201-14014-00 ...WASHER, PLATE...WASHER, PLATE
-
75PW-14811-01-00 ...HOUSING...HOUSING
-
85PW-14865-00-00 ...PULLEY...PULLEY
-
95PW-14889-00-00 ...CAP, CASE...CAP, CASE
-
105PW-14858-00-00 ...CAP, CASE...CAP, CASE
-
1190201-10M76-00 ...WASHER, PLATE...WASHER, PLATE
-
125PW-14683-00-00 ...SPRING, HOOK...SPRING, HOOK
-
135PW-14684-00-00 ...BOLT, HOOK...BOLT, HOOK
-
145PW-14777-00-00 ...BOLT...BOLT
-
1590201-050T4-00 ...WASHER, PLATE...WASHER, PLATE
-
165PW-14836-00-00 ...ROD...ROD
-
175PW-1469V-00-00 ...PIN...PIN
-
1890201-06431-00 ...WASHER, PLATE...WASHER, PLATE
-
1993410-06053-00 ...CIRCLIP...CIRCLIP
-
2091380-04006-00 ...BOLT...BOLT
-
2192990-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
225PW-14867-00-00 ...BRACKET...BRACKET
-
2390119-06115-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
2490110-06025-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
2593606-07M17-00 ...PIN, DOWEL...PIN, DOWEL
-
265PW-14643-00-00 ...GASKET 3...GASKET 3
-
2790110-06025-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
2890506-10003-00 ...SPRING, TENSION...SPRING, TENSION
-
295PW-14826-00-00 PROTECTOR, EXHAUSTPROTECTOR, EXHAUST
-
3090119-06187-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
314FM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
3290179-08410-00 NUTNUT
-
335PW-14710-10-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
344XV-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
355JJ-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
3695817-08030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
374FM-24181-00-00 ...DAMPER, LOCATING 1...DAMPER, LOCATING 1
-
385PW-1130E-00-00 CABLE PULLEY ASSYCABLE PULLEY ASSY
-
3990462-10013-00 CLAMPCLAMP
-
4091314-06010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4195817-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4290201-08612-00 WASHER, PLATEWASHER, PLATE
