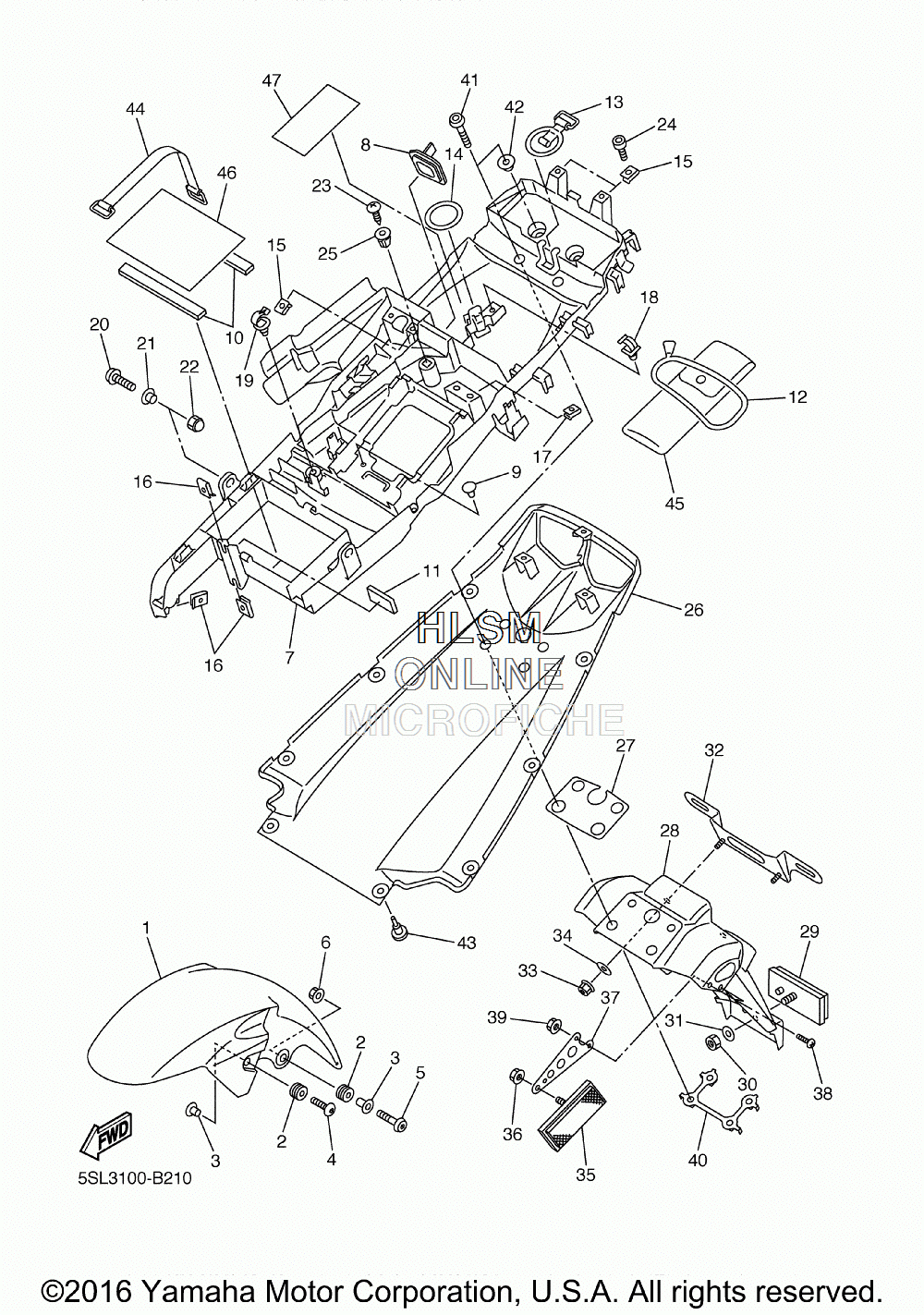

FENDER - FRONT / REAR для Yamaha YZF-R6 CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
15SL-21511-00-P1 FENDER, FRONT (OPT) (DPBMC)FENDER, FRONT (OPT) (DPBMC)
-
15SL-21511-00-P2 FENDER, FRONT (OPT) (S3)FENDER, FRONT (OPT) (S3)
-
290480-14003-00 GROMMETGROMMET
-
390387-06057-00 COLLARCOLLAR
-
490111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
592014-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
695707-06500-00 NUT, FLANGENUT, FLANGE
-
75SL-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
85MT-2172X-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
990338-06018-00 PLUGPLUG
-
101AE-2834E-00-00 DAMPER 3DAMPER 3
-
113KJ-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
123YX-21376-00-00 BAND, TOOLBAND, TOOL
-
135SL-21646-00-00 BANDBAND
-
145SL-21647-00-00 BANDBAND
-
1590183-05076-00 NUT, SPRINGNUT, SPRING
-
1690183-06053-00 NUT, SPRINGNUT, SPRING
-
1790183-04039-00 NUT, SPRINGNUT, SPRING
-
1890464-07259-00 CLAMPCLAMP
-
1990464-13249-00 CLAMPCLAMP
-
2090111-06007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2190387-06022-00 COLLARCOLLAR
-
2290176-06055-00 NUT, CROWNNUT, CROWN
-
2397707-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
2491317-05012-00 BOLTBOLT
-
2590338-08226-00 PLUGPLUG
-
265SL-21611-00-P1 FENDER, REAR (OPT) (UR DPBMC)FENDER, REAR (OPT) (UR DPBMC)
-
265SL-21611-00-P2 FENDER, REAR (OPT) (S3)FENDER, REAR (OPT) (S3)
-
275SL-21669-00-00 SEALSEAL
-
285SL-21629-10-00 GUARD, MUDGUARD, MUD
-
293Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3095607-05100-00 NUT, UNUT, U
-
3190201-05725-00 WASHER, PLATEWASHER, PLATE
-
325MT-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
3395607-06100-00 NUT, UNUT, U
-
3490201-06057-00 WASHER, PLATEWASHER, PLATE
-
353Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3695707-05500-00 NUT, FLANGENUT, FLANGE
-
375PW-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
3890150-04041-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
3995607-04100-00 NUT, UNUT, U
-
405PW-2161G-00-00 BRACKET 6BRACKET 6
-
4192017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4290387-065G0-00 COLLARCOLLAR
-
4390269-07077-00 RIVETRIVET
-
445JJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
455SL-28100-00-00 TOOL KITTOOL KIT
-
465EB-14733-00-00 MAT 1MAT 1
-
475SL-2179R-00-00 PLATE, EPA 2 (CALIFORNIA)PLATE, EPA 2 (CALIFORNIA)
-
475SL-2179V-00-00 PLATE, EPA 1 (NON CALIFORNIA)PLATE, EPA 1 (NON CALIFORNIA)
