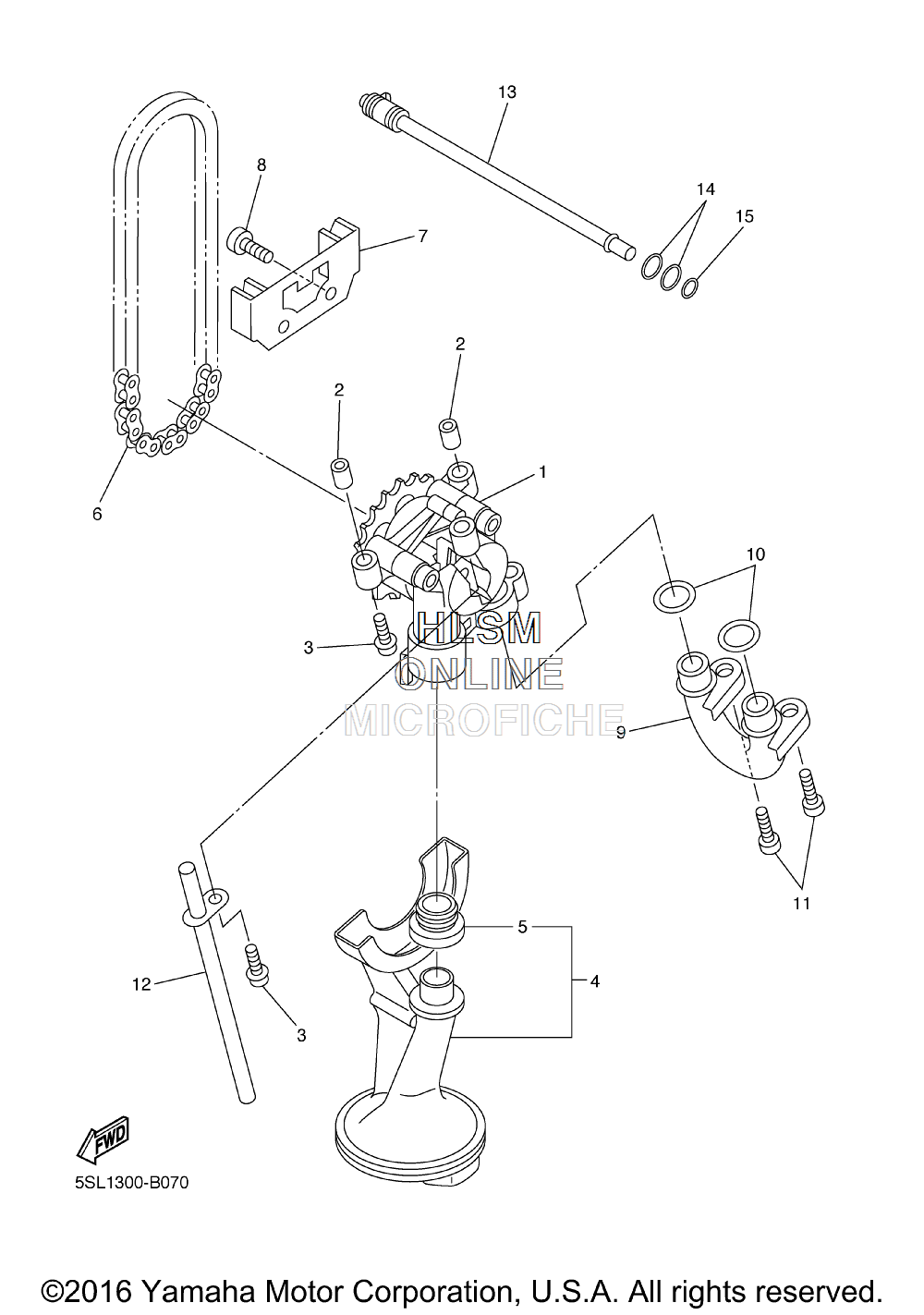

OIL PUMP для Yamaha YZF-R6 CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
15MT-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
291808-17032-00 PIN, DOWELPIN, DOWEL
-
390109-06031-00 BOLTBOLT
-
45SL-13410-00-00 STRAINER HOUSING ASSYSTRAINER HOUSING ASSY
-
55EB-13415-00-00 ...SEAL, OIL STRAINER...SEAL, OIL STRAINER
-
694580-25080-00 CHAIN, DRIVE (DID25 80L)CHAIN, DRIVE (DID25 80L)
-
75EB-13898-00-00 HOLDERHOLDER
-
890110-06041-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95JW-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
1093210-14003-00 O-RINGO-RING
-
1190110-06041-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
125EB-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
135EB-1316E-00-00 PIPE, DELIVERY 5PIPE, DELIVERY 5
-
1493210-09165-00 O-RINGO-RING
-
1593210-06667-00 O-RINGO-RING
