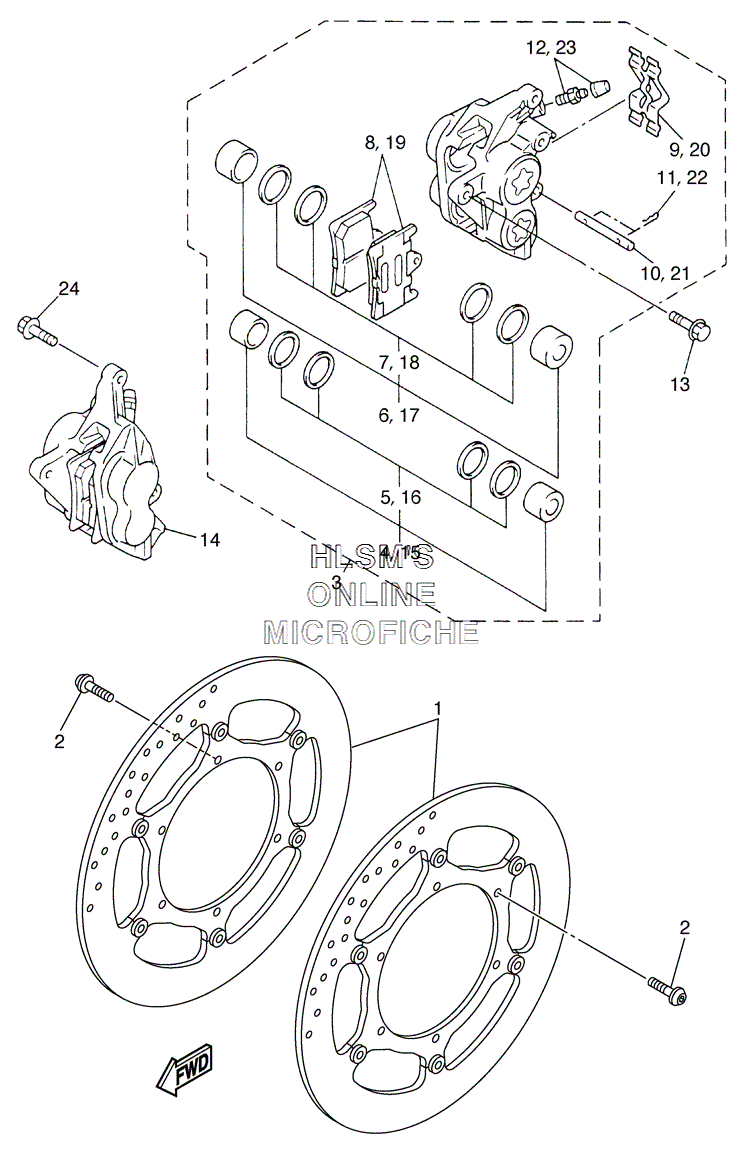

BRAKE - FRONT CALIPER для Yamaha FJR 1300 A FJR1300 ABS - 2004 года выпуска
-
№АртикулНазвание
-
15VS-2581T-00-00 DISC BRAKE ASSY.DISC BRAKE ASSY.
-
290109-064G6-00 BOLTBOLT
-
35PX-2580T-00-00 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
44SV-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
53MA-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
64SV-W0057-10-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
73GM-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
85JJ-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94SV-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
104SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
113GM-25925-00-00 ...CLIP...CLIP
-
1251H-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
1390105-105A7-00 BOLT, FLANGEBOLT, FLANGE
-
145VS-2580U-00-00 CALIPER ASSY. (RIGHT)CALIPER ASSY. (RIGHT)
-
154SV-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
163MA-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
174SV-W0057-10-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
183GM-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
195JJ-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
204SV-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
214SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
223GM-25925-00-00 ...CLIP...CLIP
-
235VS-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
2490105-105A7-00 BOLT, FLANGEBOLT, FLANGE
