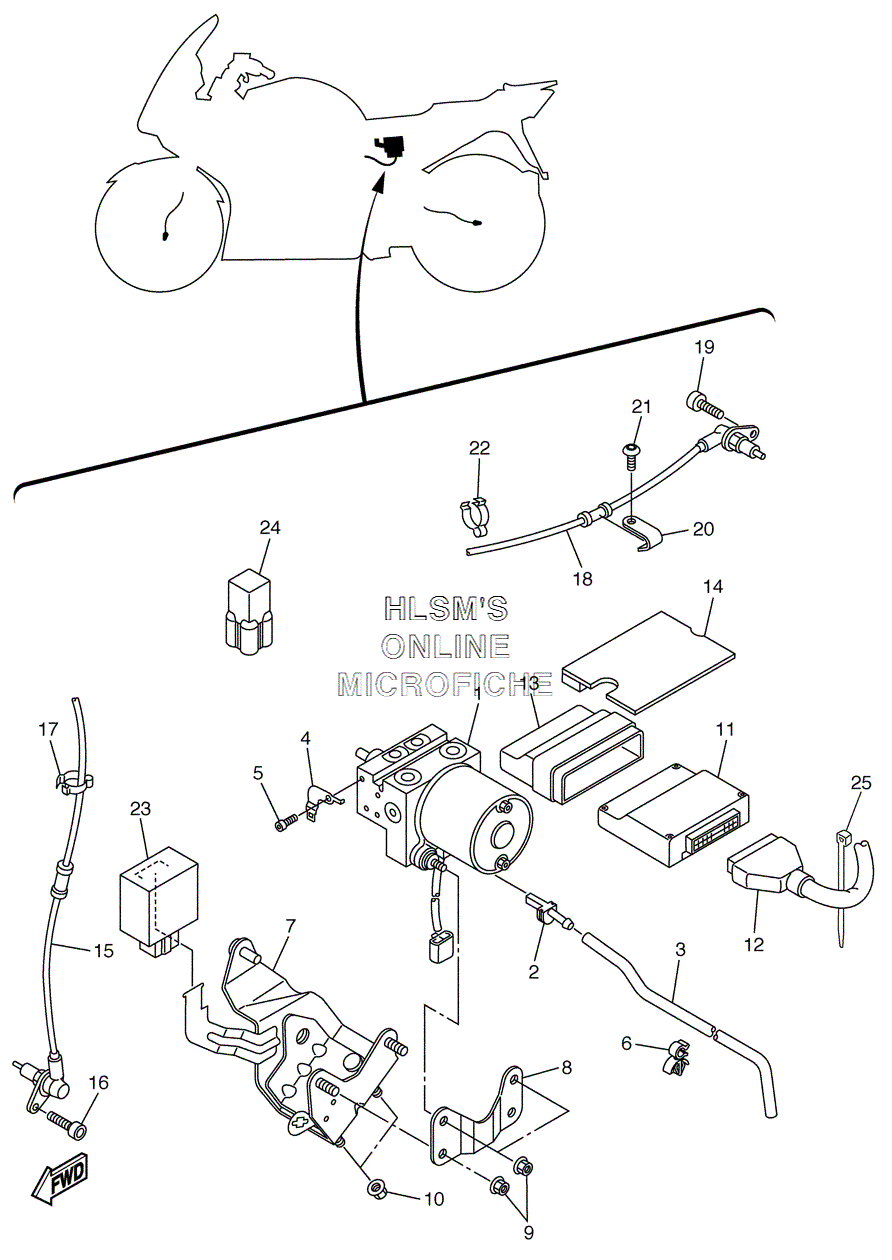

ELECTRICAL 3 для Yamaha FJR 1300 A FJR1300 ABS - 2004 года выпуска
-
№АртикулНазвание
-
15VS-85930-09-00 HYDRAULIC UNIT ASSY.HYDRAULIC UNIT ASSY.
-
25CG-24196-00-00 PLUG, DRAINPLUG, DRAIN
-
35VS-85828-00-00 HOSE, DRAINHOSE, DRAIN
-
45VS-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
591318-05012-00 BOLTBOLT
-
690464-10125-00 CLAMPCLAMP
-
75VS-2175T-00-00 BRACKET 1BRACKET 1
-
85VS-2175U-00-00 BRACKET 2BRACKET 2
-
995707-08500-00 NUT, FLANGENUT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
115VS-85940-00-00 ELECTRONIC CONTROL UNIT ASSY.ELECTRONIC CONTROL UNIT ASSY.
-
125VS-85950-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
135CG-8552E-00-00 COVER, CASECOVER, CASE
-
145VS-8235Y-00-00 DAMPERDAMPER
-
155VS-85970-00-00 WHEEL SENSOR ASSY., FRONTWHEEL SENSOR ASSY., FRONT
-
1692014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1790465-14310-00 CLAMPCLAMP
-
185VS-85980-00-00 WHEEL SENSOR ASSY., REARWHEEL SENSOR ASSY., REAR
-
1992014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
205VS-86159-00-00 HOLDER, WIREHOLDER, WIRE
-
2190111-05012-00 BOLTBOLT
-
2290465-14310-00 CLAMPCLAMP
-
233YA-81950-01-00 RELAY ASSY.RELAY ASSY.
-
243YA-82378-00-00 CONNECTORCONNECTOR
